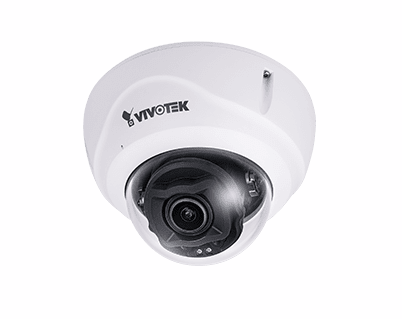

Vivotek FD9387-HTV 5MP Fixed Dome Network Camera
The Vivotek FD9387-HTV is a 5MP fixed dome camera with 1/2.7" progressive CMOS chip and a focal length of 2.7 ~ 13.5mm.
This camera comes with great features such as smart motion detection to reduce false alarms and a built-in IR illuminators with smart IR II allowing it to work in complete darkness for up to 50m. It also has supreme night visibility (SNV) for low light conditions and wide dynamic range (WDR) pro which provides visibility in extremely dark & bright conditions.
Users can have this camera for either indoor or outdoor use due to a working temperature of -30°C ~ 60°C, metal housing, IP67/IP66 weather-proof housing and IK10 vandal-resistant housing.
The FD9387-HTV has Smart Stream II and H.265 compression, which gives users a huge saving on bandwidth and storage usage and a built-in MicroSD/SDHC/SDXC card slot allowing up to 265GB of storage.
With a maximum power consumption of 11.4W, it is powered by either PoE or via a 12V DC power supply.
Quick Installation Guide User Manual
Product Datasheets
Vivotek FD9387-HTV 5MP Fixed Dome Network Camera Datasheet (0.46MB)
- H.265 Compression Technology.
- Built-in IR illuminators, effective up to 50 meters with Smart IR II.
- WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments.
- SNV (Supreme Night Visibility) for Low Light Conditions.
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing.
- 30fps @ 1920 x 2560.
- Smart Stream III to Optimize Bandwidth Efficiency.
Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment sticker.
- Screw pack.
- Conduit ring.
| Weight | 909.000000 |
|---|---|
| Image chip size | 1/2.7" |
| Image chip type | Progressive CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Audio input/output (full duplex) |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| POE Class | Class 0 (0.44-12.95W) |
| Max. Resolution | 2560 X 1920 |
| Supply Volts | 12V DC, 24V DC or PoE |
| Lens Mount | vari-focal lens |
| Lens Focal Length | 2.7~12mm |
| Viewing Angle | Horizontal Field of View: 30° to 100°, Vertical Field of View: 23° to 72°, Diagonal Field of View: 38° to 135°. |
| Aspect ratio | N/A |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 50m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 11.4W |
| Warranty | 3 Years |
| Launch Date | March 2019 |
