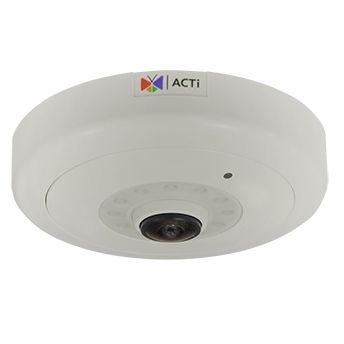

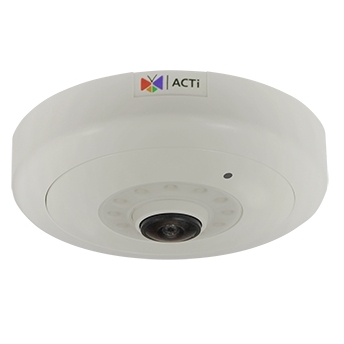

ACTi B511 12MP Indoor Hemispheric Dome with Adaptive IR, WDR, OZT Technology & Fisheye Lens
The B511 is a 12 megapixel indoor hemispheric camera that offers up to 4K resolution(with lower frame rate), it features a fisheye lens with adaptive IR & WDR that helps it perform incredibly well in very low light situations, day or night. It also includes a 180/360° panorama view with dewarped streaming allowing the user to un-warp these very wide views and view them at a slightly lower fps/higher resolution or lower resolution/higher fps, on top of this the camera also features ACTi's OZT technology that allows you to pair the dome with a PTZ camera to work in partnership to Overview, Zoom & Track any suspicious objects. It also comes with pre-installed analytics software.
use-IP Ltd have been an ACTi Partner since August 2008.
There is currently a 14-day lead-time to fetch this product from manufacturer's stock.
Please feel free to contact us for further information.
To download ACTi's latest firmware you will have to go to the ACTi Download Centre and then search the model you have to get the right firmware for your model (check the date before downloading to make sure it is the latest firmware available)
ACTi Quick Installation Guide
ACTi B511 Manual/Installation Guide
ACTi Firmware Manual
ACTi Selection Guide
Product Datasheets
- Fisheye Lens with f1.3mm / F2.6
- Features extreme WDR (130dB) & adaptive IR LED
- 180/360° Panorama View with Depwarped streaming
- OZT Technology (360° overview, zoom and tracking
- Built-in Analytics
| Weight | 452.000000 |
|---|---|
| Image chip size | 1/1.7" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.264 (Baseline/Main/High profile) & MJPEG |
| Audio | G.711 |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | No |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 4000 X 3000 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | 12V DC or PoE |
| Lens Mount | board mount |
| Lens Focal Length | 1.3mm |
| Viewing Angle | 194.2°(overview area), 118.5° (high detail area) Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 12 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | N/A |
| IR Range | Up to 20m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | Max. 7.17W |
| Built-In Storage | micro-SD |
| Warranty | 3 Years |
| Launch Date | Autumn 2016 |
