AXIS M1054 HDTV Network Camera 0338-003
This product is now End of Life.
May we recommend the Axis M1065-L or please feel free to browse our Axis category to find an alternative model.

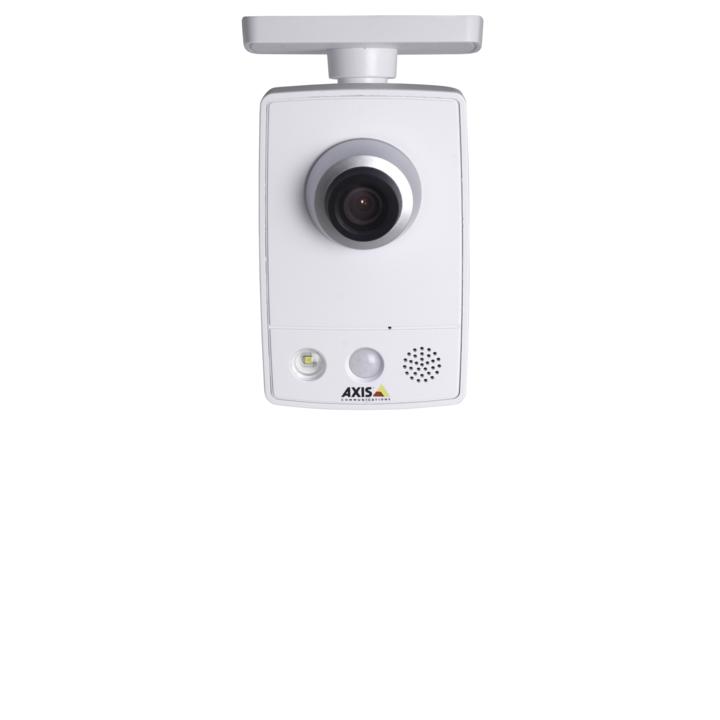

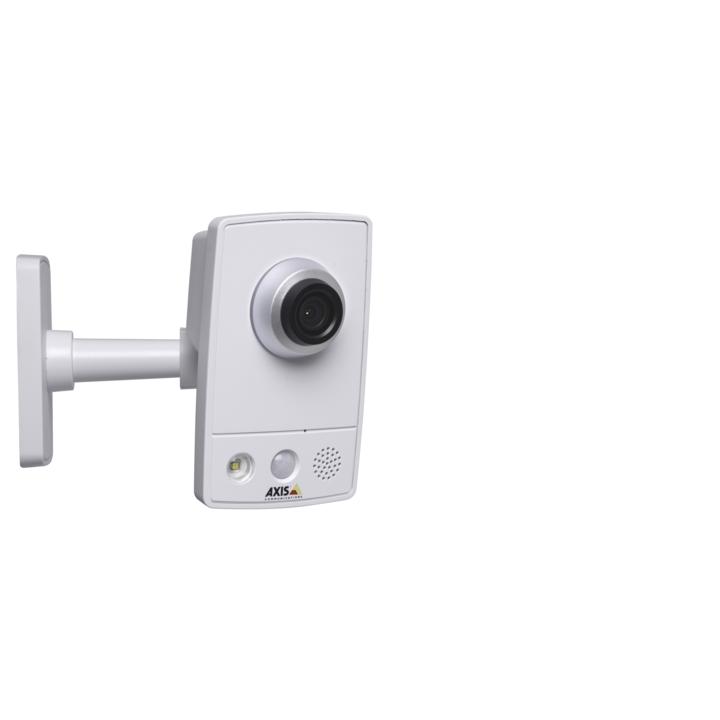

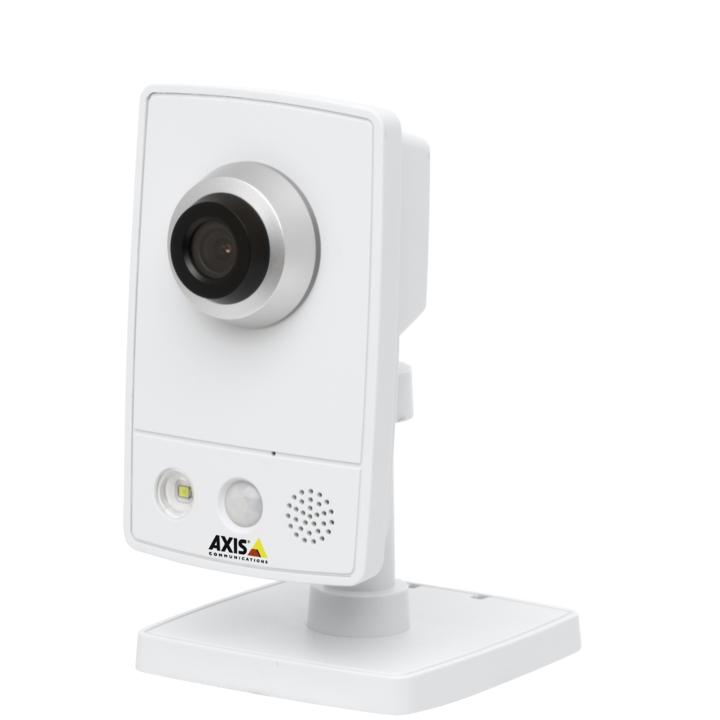

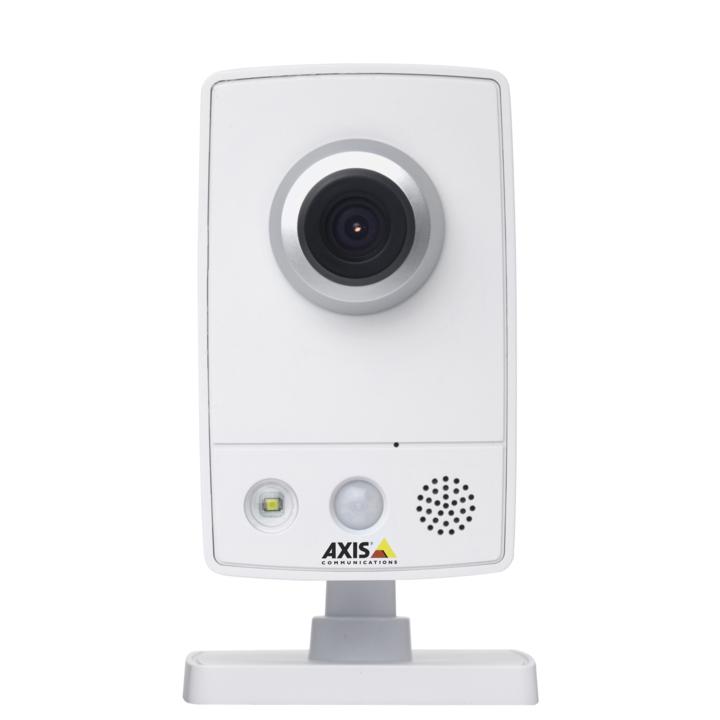

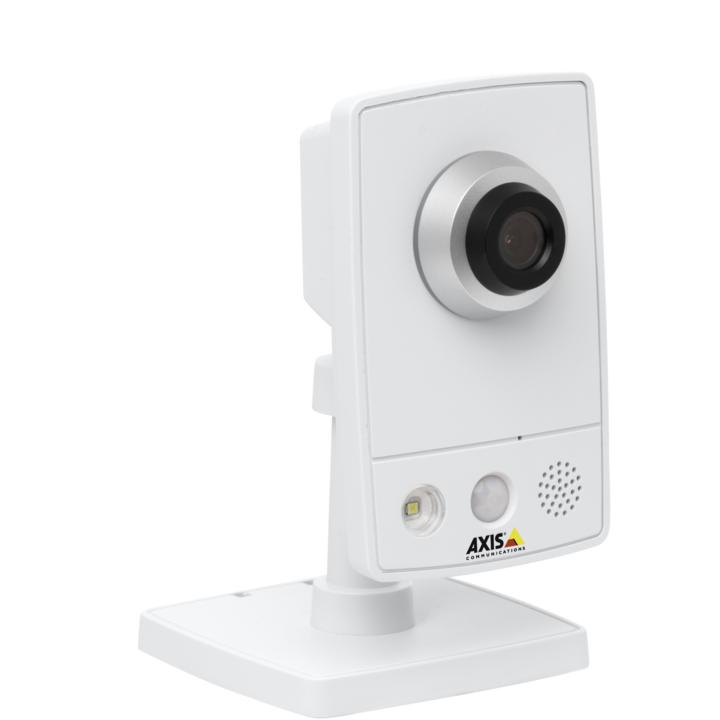

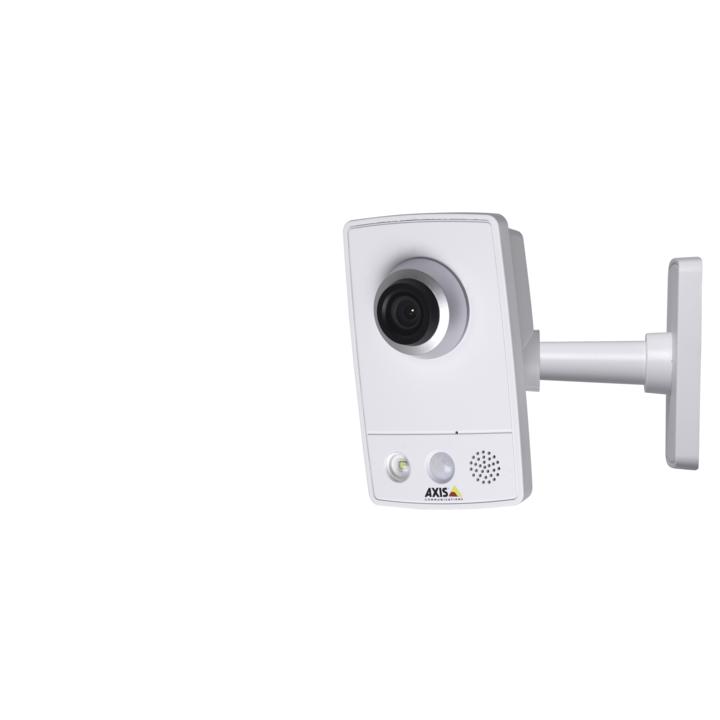

AXIS M1054 HDTV Network Camera with multiple H.264 streams, PIR sensor, illumination LED and Power over Ethernet capabilities.
Axis M1054 User Manual
Axis M1054 Installation Guide
Axis Product Comparison Table Autumn 2016
Axis Product Guide
Product Datasheets
- Multiple H.264 streams
- Power over Ethernet
- PIR sensor and illumination LED
- Microphone and speaker
- I/O port
The AXIS M1054 Network Camera uses progressive scan technology providing full frame rate video in resolutions up to 1 megapixel including HDTV 720p. Multiple H.264 and Motion JPEG streams can be provided simultaneously individually optimized for different quality needs and bandwidth constraints.
Also, the M1054 features an integrated PIR sensor for detecting movement even in the dark, and a white LED for illuminating the scene at an event. It additionally supports I/O ports for connecting external devices.
What's more,the camera is designed for easy and flexible installation and can be powered either over Ethernet or by power supply.
The AXIS M1054 is well suited for use in boutiques, restaurants, hotels and residences.
Additional Features:
* Two-way audio and audio detection
* Network security using multi-level password protection, IP address filtering, HTTPS encryption and IEEE 802.1X authentication.
* Supports Internet Protocol version 6 (IPv6) in addition to IP version 4 (IPv4).
| Weight | 100.000000 |
|---|---|
| Image chip size | 1/4" |
| Image chip type | CMOS |
| Image Compression | MJPEG & MPEG-4 & H.264 |
| Audio | Bi-directional speak/listen |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | Colour |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1280 X 800 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | POE only |
| Lens Mount | built-in lens |
| Lens Focal Length | 2.9mm |
| Viewing Angle | 80 degrees |
| Aspect ratio | 16:9 |
| Megapixels | 1 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | N/A |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 6.4W |
| Warranty | 3 Years |
| Launch Date | March 2010 |
| Video |
