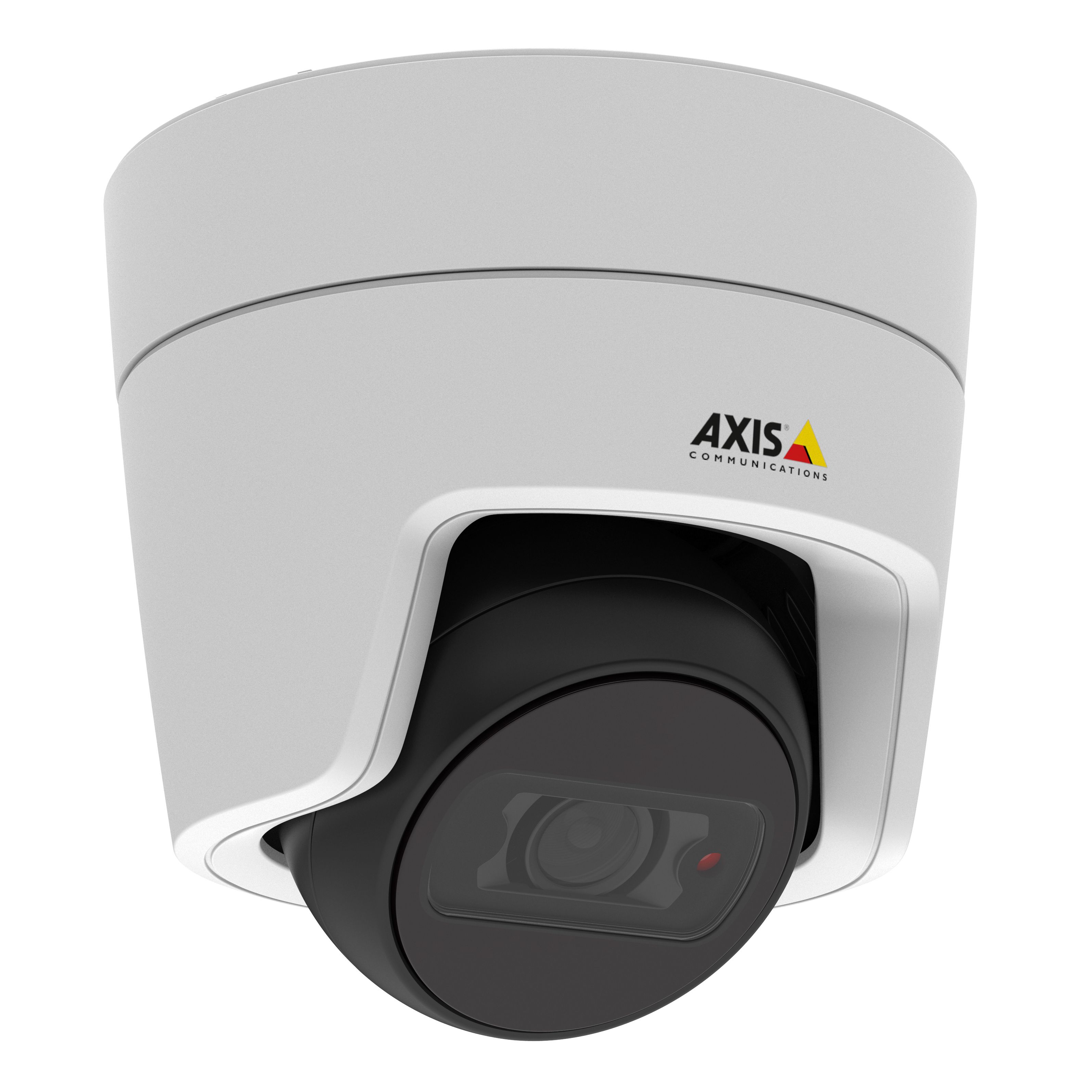

Axis M3104-L Indoor Mini Dome Network Camera with built-in IR illumination 0865-001
The Axis M3104-L is a 720p resolution mini dome with a flat-faced design that reduces reflections. It uses WDR and IR illumination to achieve HDTV even in the most difficult lighting conditions, its sleek and compact design allows for easy installation in a whole variety positions.
It also features Axis' Zipstream Technology that reduces bandwidth and storage requirements.
AXIS M3104-L Installation Guide AXIS M3104-L User Manual Axis Assigning IP Address User Manual Axis Product Comparison Table
Product Datasheets
- Built-in IR illumination
- WDR: Forensic Capture
- Axis' Zipstream Technology
- Smart compact design for easy installation
| Weight | 360.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan RGB CMOS |
| Image Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG |
| Audio | N/A |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors only |
| Ingress Protection | IP42 |
| Colour / monochrome | Colour/Mono switching |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1280 X 720 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | POE only |
| Lens Mount | M12 mount |
| Lens Focal Length | 2.8mm |
| Viewing Angle | 80° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| IR Range | Up to 15m |
| Max. Images per second | 30 |
| PSU included | N/A |
| ONVIF Compatible | Yes |
| Power Consumption | Max. 6.2W |
| Built-In Storage | micro-SD |
| Warranty | 3 Years |
| Launch Date | Autumn 2016 |
