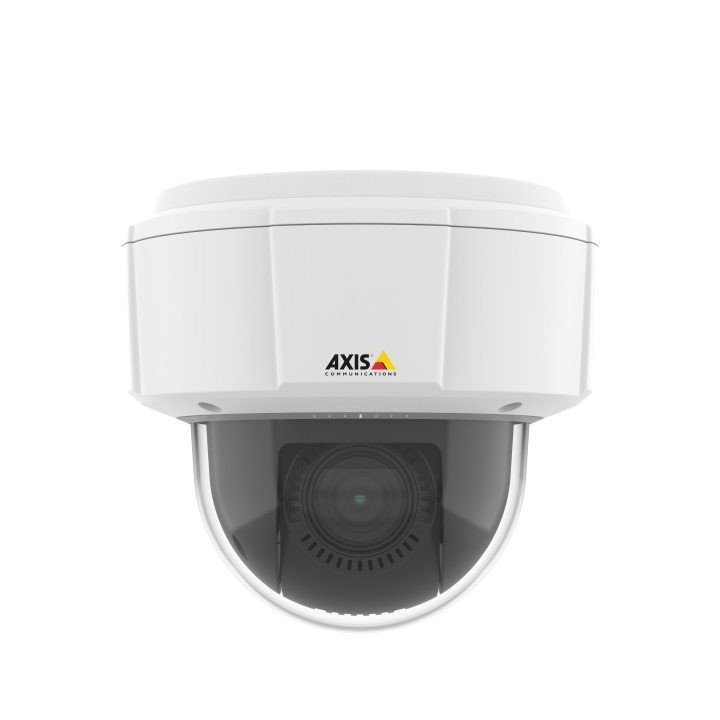

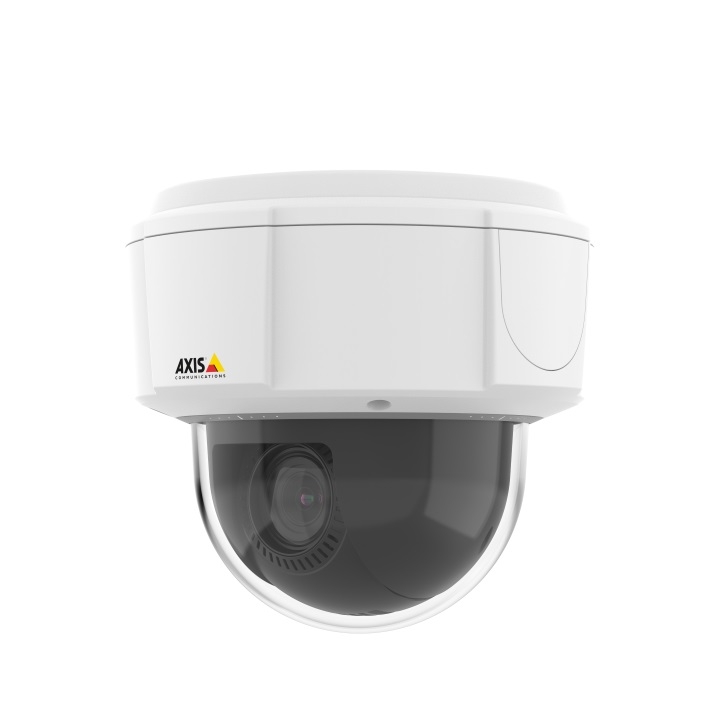

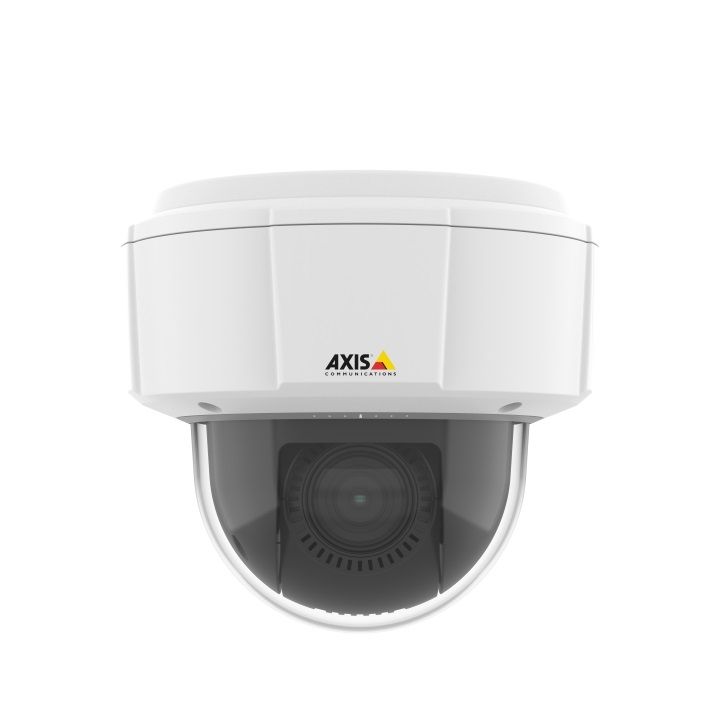

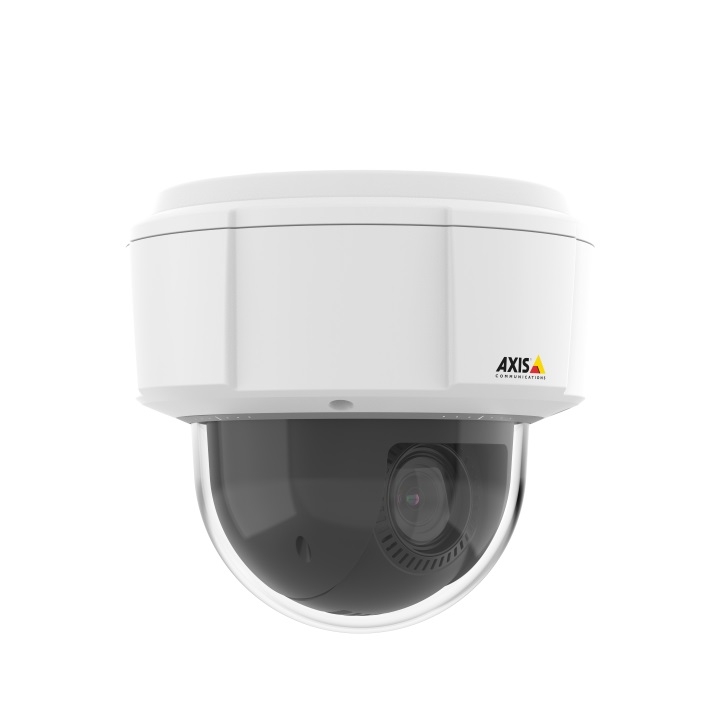

Axis M5525-E PTZ Network Camera 01145-001
The Axis M5525-E is a compact pan tilt zoom camera with HDTV 1080p, 10x optical zoom and autofocus which enables the camera to produce great image quality. This PTZ can be used both outdoors by purchasing an Axis PTZ mount or indoors by being surface-mounted.
This camera has three scene profiles to choose from:
- Forensic Profile ~ for capturing details in challenging conditions
- Indoor Profile ~ for optimised colours in indoor lighting conditions
- Outdoor Profile ~ for enhanced image appearance for outdoor surveillance
Included Accessories:
- Conduit adapter 3/4"
- Smoked dome
- Adapter bayonette
- Installation guide
- Windows decoder 1-user license
This may be on the Axis list of products with long lead times, please contact us for stock levels.
Axis M5525-E Installation GuideAxis M5525-E User ManualAxis Assigning IP Address User ManualAxis Product Comparison Table
Product Datasheets
Axis M5525-E PTZ Network Camera 01145-001 Datasheet (0.90MB)
- HDTV 1080p with 10x optical zoom
- Continuous 360° for uninterrupted pan
- WDR - Forensic Capture
- Axis Zipstream technology
- I/O ports and two way audio
| Weight | 1100.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Audio | Two way, full duplex |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Supply Volts | 20-28V DC or PoE |
| Lens Mount | auto-focus |
| Lens Focal Length | 4.7~47mm |
| Viewing Angle | 61.8° ~ 6.7° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 13W |
| Warranty | 3 Years |
| Launch Date | Autumn 2017 |
