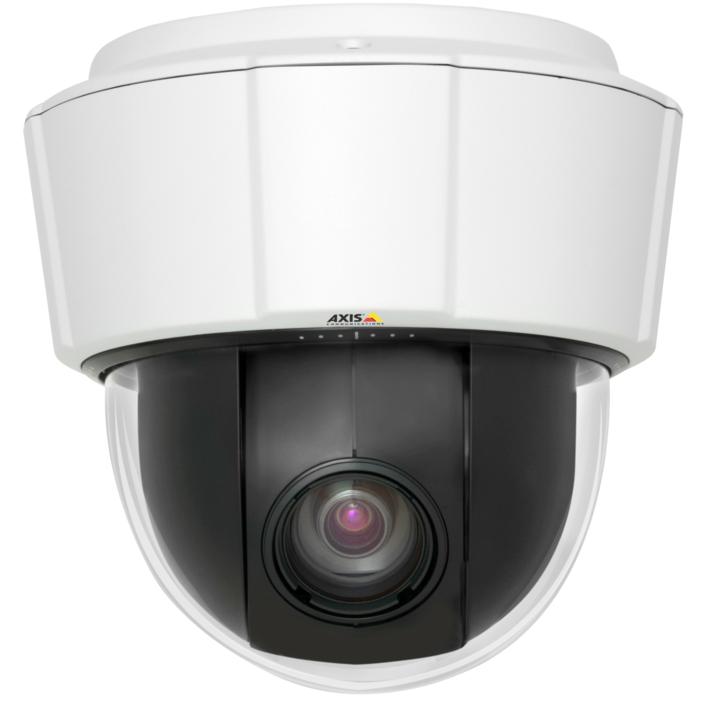

AXIS P5534 PTZ Dome IP Camera 0313-002

- HDTV 720p and H.264
- IP51-rated protection against dust and dripping water.
- High Power over Ethernet, compliance with IEEE 802.3at.
- 18x optical zoom
- Advanced Gatekeeper functionality


HDTV image quality for demanding indoor surveillance:

The AXIS P5534 PTZ Dome Network Camera offers HDTV-quality video and 18x zoom for indoor surveillance applications. With an IP51-rated protection against dust and dripping water, it is ideal for use at airports, train stations, warehouses, shops and schools. Day and night functionality ensures high image quality in low light conditions.

Compliance with SMPTE standards:

The P5534 offers HDTV 720p in compliance with the SMPTE 296M standard of 1280 x 720 pixel resolution, full frame rate, high color fidelity and a 16:9 format. The camera can deliver multiple, individually configurable H.264 and Motion JPEG video streams simultaneously. H.264 greatly optimizes bandwidth and storage use without compromising image quality, while Motion JPEG is supported for increased flexibility.

Advanced pan/tilt/zoom capabilities:

The PTZ functionality of the camera provides 18x optical and 12x digital zoom with autofocus. It can pan 360° due to the unique Auto-flip functionality, which allows the camera to simulate a continuous pan beyond the mechanical stop, thereby enabling an operator to continuously follow an object. What's more, the P5534 incorporates the Advanced Gatekeeper functionality, which enables the camera to automatically pan, tilt and zoom in when there is activity in the scene and zoom out after a preset time.

Power over Ethernet for easy installations:

The P5534 can be powered through High Power over Ethernet, which simplifies installation since only one cable is required for power, video and PTZ controls. A High PoE midspan is supplied with the camera (AXIS T8123). The camera also complies with the new High PoE standard IEEE 802.3at.
