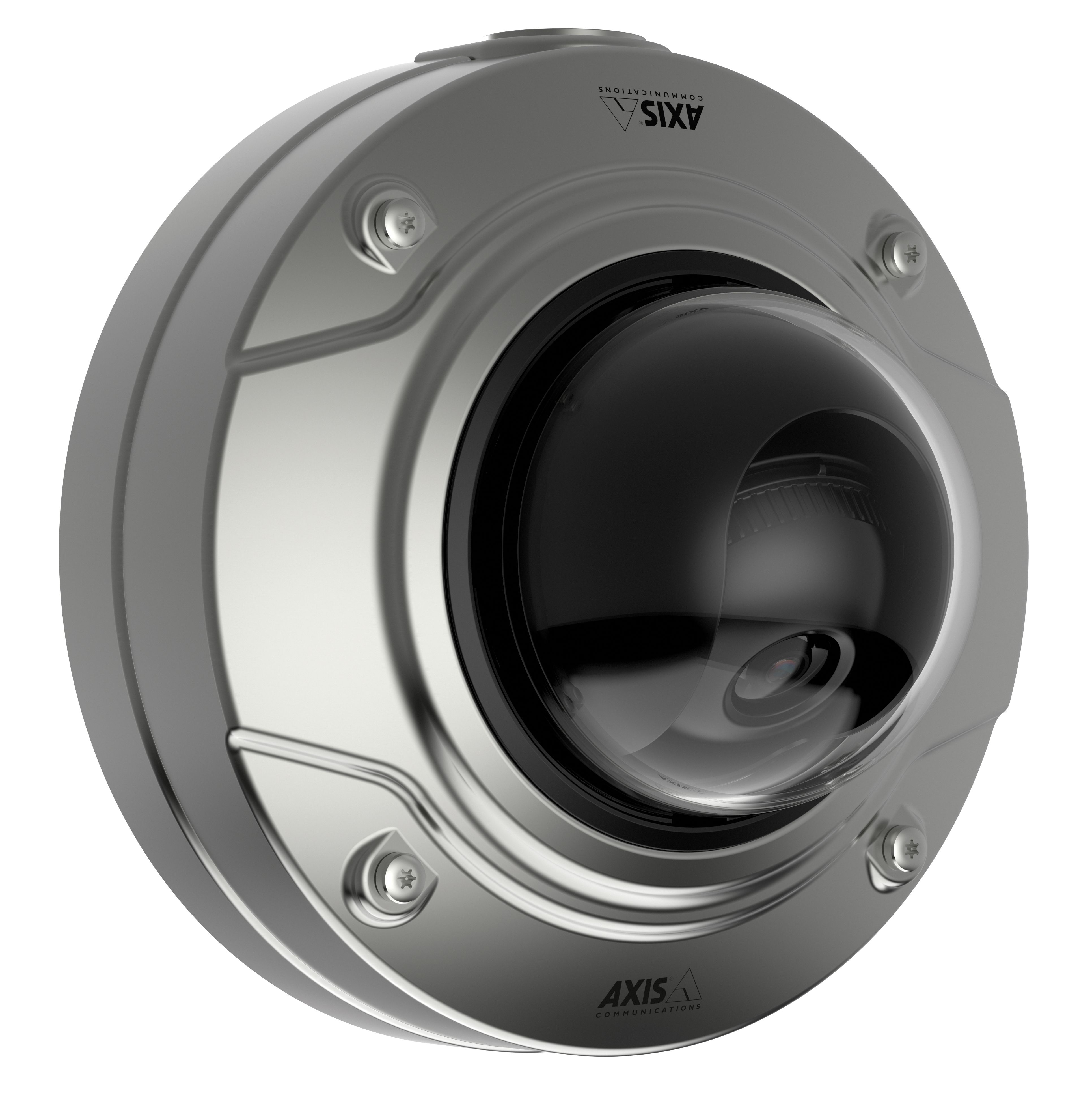

Axis Q3505-SVE Mk II 1080p Outdoor Stainless Steel Vandal Resistant Fixed Dome Network Camera
The Q3505-SVE Mk II is now End of Life.
May we recommend the Q3517-SLVE as replacement or please feel free to browse our Axis category.
The Axis Q3505-SVE Mk II is an outdoor ready vandal resistant fixed dome with 1080p resolution at up to 60fps with WDR on (can record up to 120fps if set to 720p and with WDR off). This model is varifocal and comes in 2 different focal lengths (3~9mm / 9~22mm) this makes the camera very flexible to different set-up environments.
As already mentioned this camera feature WDR, but it also feature Lightfinder technology which combined with the WDR makes it excellent in low light situations, its smart conduit design makes very easy to install and the inclusion of remote zoom and focus eliminates the need for hands-on fine tuning.
This model features a stainless steel marine-grade casing and is rated IK10+ which means the camera can handle impact forces as high as 50 joules, it is also rate IP69 for weatherproofing, it is the ideal camera for identifying people and other movement in harsh environments like work sites, large factories and detention centre.
Included Accessories:
- Installation Guide
- Windows decoder 1-user license
- Mounting bracket
- Drill hole template
- Cable gaskets
- I/O connector
- Connector guard
- Axis U-shape conduit adapter
- Stainless steel Resistorx® TR20 screw bit
- AXIS T94U02S Mounting Bracket
- Wall gasket
Axis Q3505-SVE Mk II Installation Guide Axis Q3505-SVE Mk II User Manual Axis Assigning IP Address User Manual Axis Product Comparison Table
Product Datasheets
- Lightfinder & WDR - Forensic Capture
- Electronic image stabilization
- Marine-grade stainless steel (SS 316L), IK10+(50 joules) impact resistance and IP69 weatherproof protection
| Weight | 2000.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan RGB CMOS |
| Image Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG |
| Audio | Two-way |
| Auto-Focus | No |
| Indoor / Outdoor | Outdoor |
| Ingress Protection | IP69 |
| Colour / monochrome | Colour/Mono switching |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.02 |
| Supply Volts | POE only |
| Lens Mount | vari-focal lens |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | P-Iris control |
| Max. Images per second | 120 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | Max. 11.7W |
| Built-In Storage | micro-SD |
| Warranty | 3 Years |
| Launch Date | Autumn 2016 |
