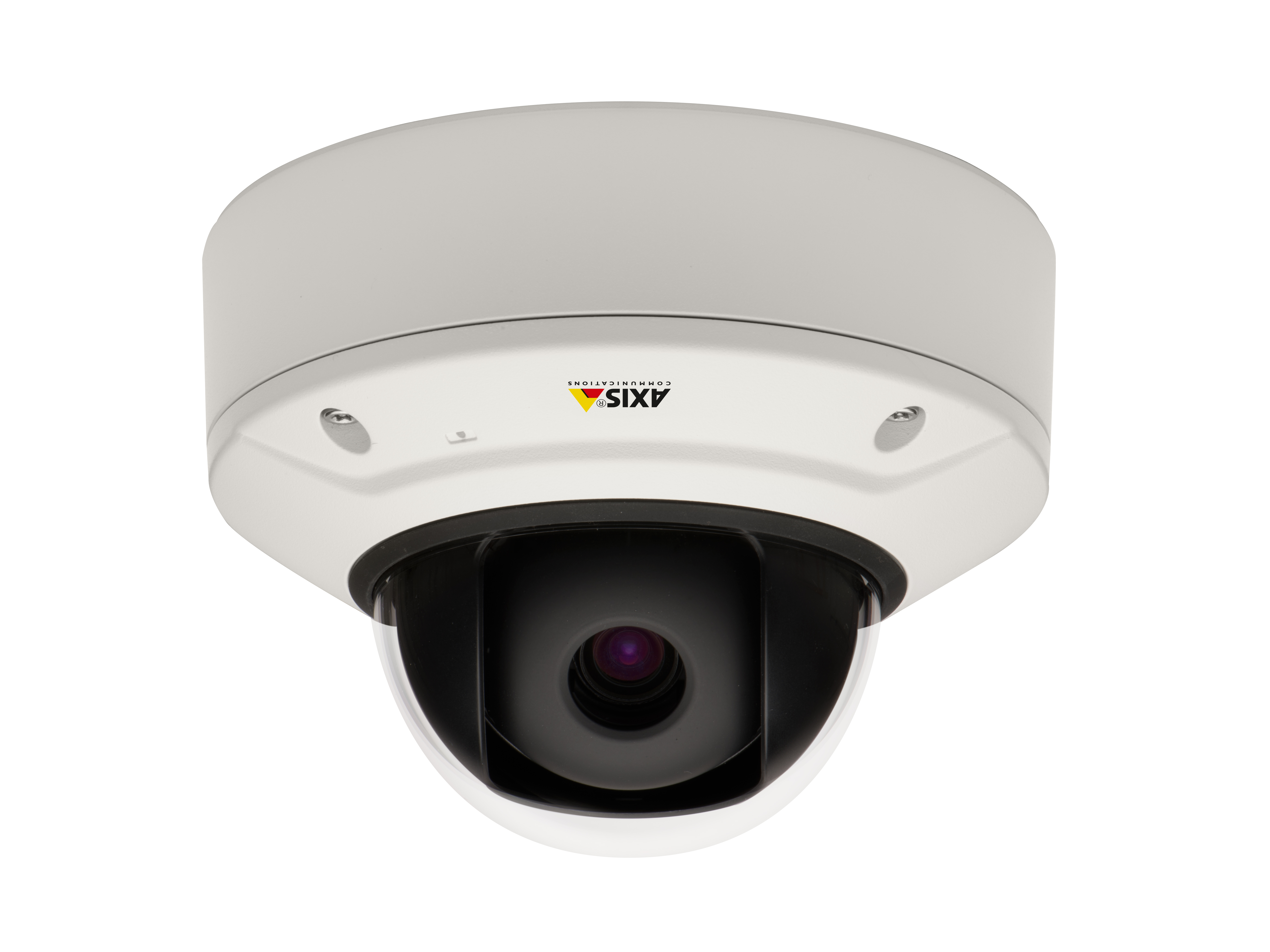

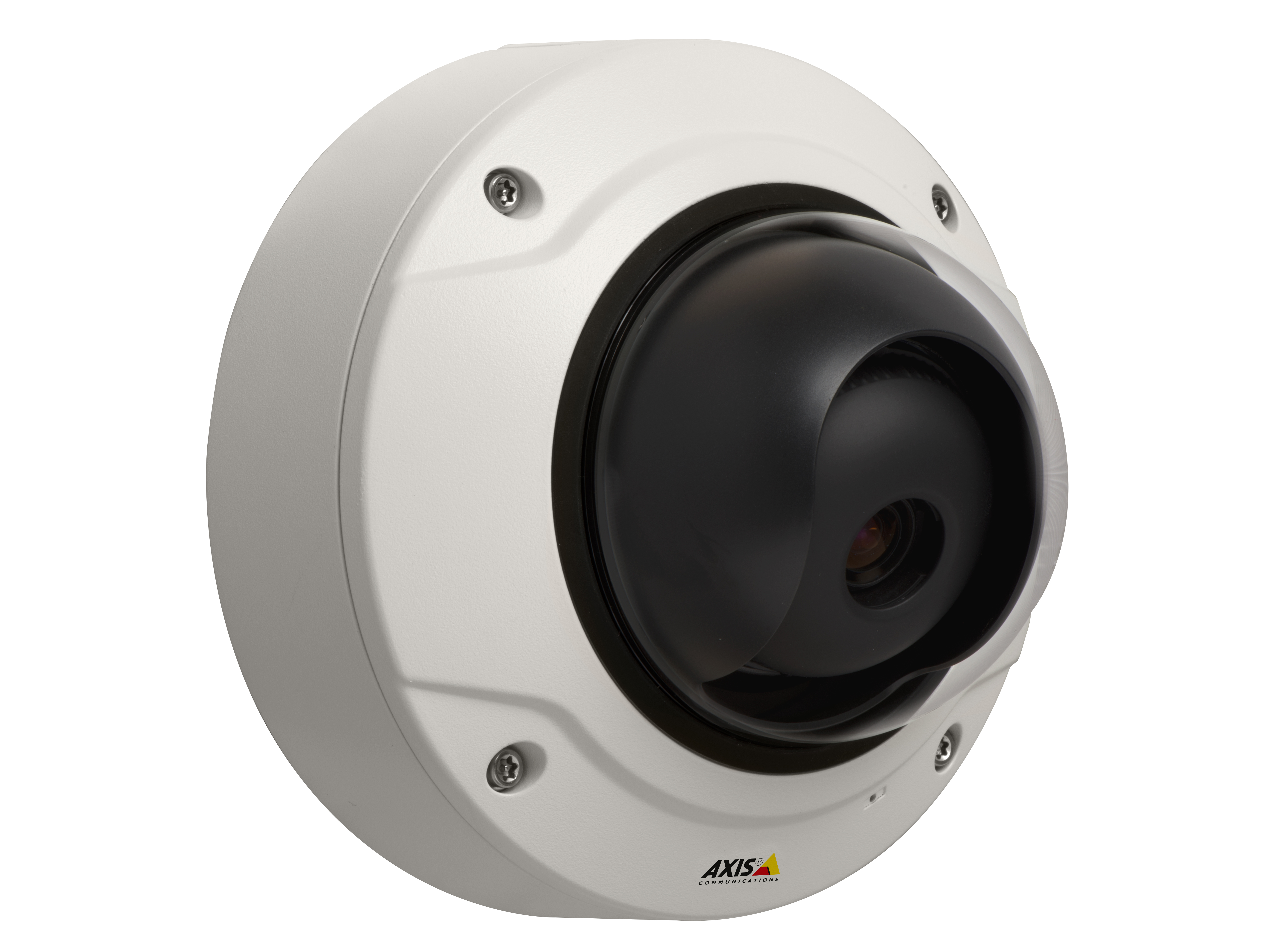

Axis Q3505-V Mk II 3~9mm Fixed Dome Network Camera - 0872-001
The Q3505-V Mk II is now End of Life.
May we recommend the Axis Q3515-LV 9mm as replacement or please feel free to browse our Axis category.
The Axis Q3505-V Mk II is a vandal resistant fixed dome with 1080p resolution at up to 60fps with WDR on (can record up to 120fps if set to 720p and with WDR off). This model is varifocal and comes with a 3~9mm focal length lens.
As already mentioned this camera feature WDR, but it also feature Lightfinder technology which combined with the WDR makes it excellent in low light situations, its smart conduit design makes very easy to install and the inclusion of remote zoom and focus eliminates the need for hands-on fine tuning.
It is the ideal camera for identifying people and other movement in harsh environments like work sites, large factories and detention centre.
Included Accessories:
- Installation Guide
- Windows decoder 1-user license
- Mounting bracket
- Drill hole template
- Cable gaskets
- I/O connector
- Connector guard
- Resistorx® T20 L-key
This camera is currently not stocked by our distributor and so has a 10-14 day lead time for delivery.
Axis Q3505-V Mk II Installation Guide Axis Q3505-V Mk II User Manual Axis Assigning IP Address User Manual Axis Product Comparison Table
Product Datasheets
Axis Q3505-V Mk II 3~9mm Fixed Dome Network Camera - 0872-001 Datasheet (0.61MB)
- HDTV 1080p resolution at 60fps or 120fps at 720p
- Lightfinder & WDR - Forensic Capture
- Electronic image stabilization
- IK10 impact resistance and IP52 dust & water protection
| Weight | 1200.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan RGB CMOS |
| Image Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG |
| Audio | Two-way |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors only |
| Ingress Protection | IP52 |
| Colour / monochrome | Colour/Mono switching |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.02 |
| Supply Volts | POE only |
| Lens Mount | vari-focal lens |
| Lens Focal Length | 3~9mm |
| Viewing Angle | 105°~36° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Supplied with lens | Yes |
| Accepts auto-iris lens | P-Iris control |
| Max. Images per second | 120 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 6W |
| Built-In Storage | micro-SD |
| Warranty | 3 Years |
| Launch Date | Autumn 2016 |
| Focal Length | 3~9mm |
