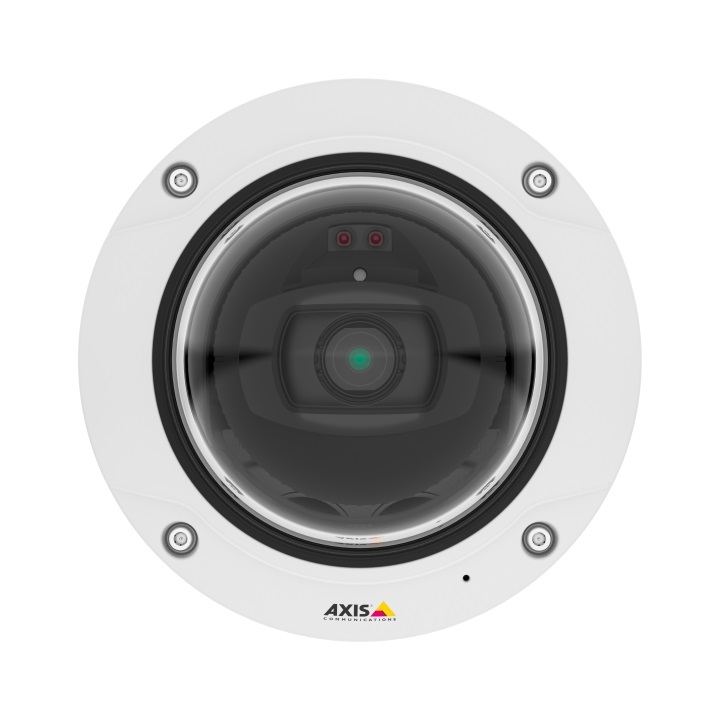

Axis Q3517-LV Indoor Fixed Dome Network Camera 01021-001
The Axis Q3517-LV is an indoor vandal resistant fixed dome network camera, with features such as; Forensic WDR, Lightfinder technology and OptimisedIR illumination this camera is able to produce unparalleled video quality in any light condition.
Included Accessories:
- Installation guide
- Windows decoder 1-user license
- Drill hole template
- Cable gaskets
- I/O and DC connectors
- Connector guard
- Resistorx T20 L-key
- Mounting bracket
Axis Q3517-LV Installation GuideAxis Q3517-LV User ManualAxis Assigning IP Address User ManualAxis Product Comparison Table
Product Datasheets
Axis Q3517-LV Indoor Fixed Dome Network Camera 01021-001 Datasheet (0.46MB)
- 5MP resolution at full frame rate
- Forensic WDR, Lightfinder and OptimisedIR
- Axis Zipstream technology
- EIS, IK10 vandal resistance, IP52 water and dust protection
- Power with redundancy and configurable I/O ports
| Weight | 1400.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | Progressive Scan RGB CMOS |
| Image Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Audio | Two-way |
| Indoor / Outdoor | Indoors only |
| Ingress Protection | IP52 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 3072 X 1728 |
| Min. low-light lux | 0.02 |
| Supply Volts | 8-28V DC or PoE |
| Lens Mount | vari-focal lens |
| Lens Focal Length | 4.3~8.6mm |
| Viewing Angle | 96° ~ 50° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | P-Iris control |
| Max. Images per second | 50 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 14.5W |
| Warranty | 1 Year |
| Launch Date | Autumn 2017 |
| Focal Length | 2.8mm |
| Audio/Alarm I/O | Audio/Alarm I/O |
| Wireless | Wireless |
| Frames per Second | 8.3 fps |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
