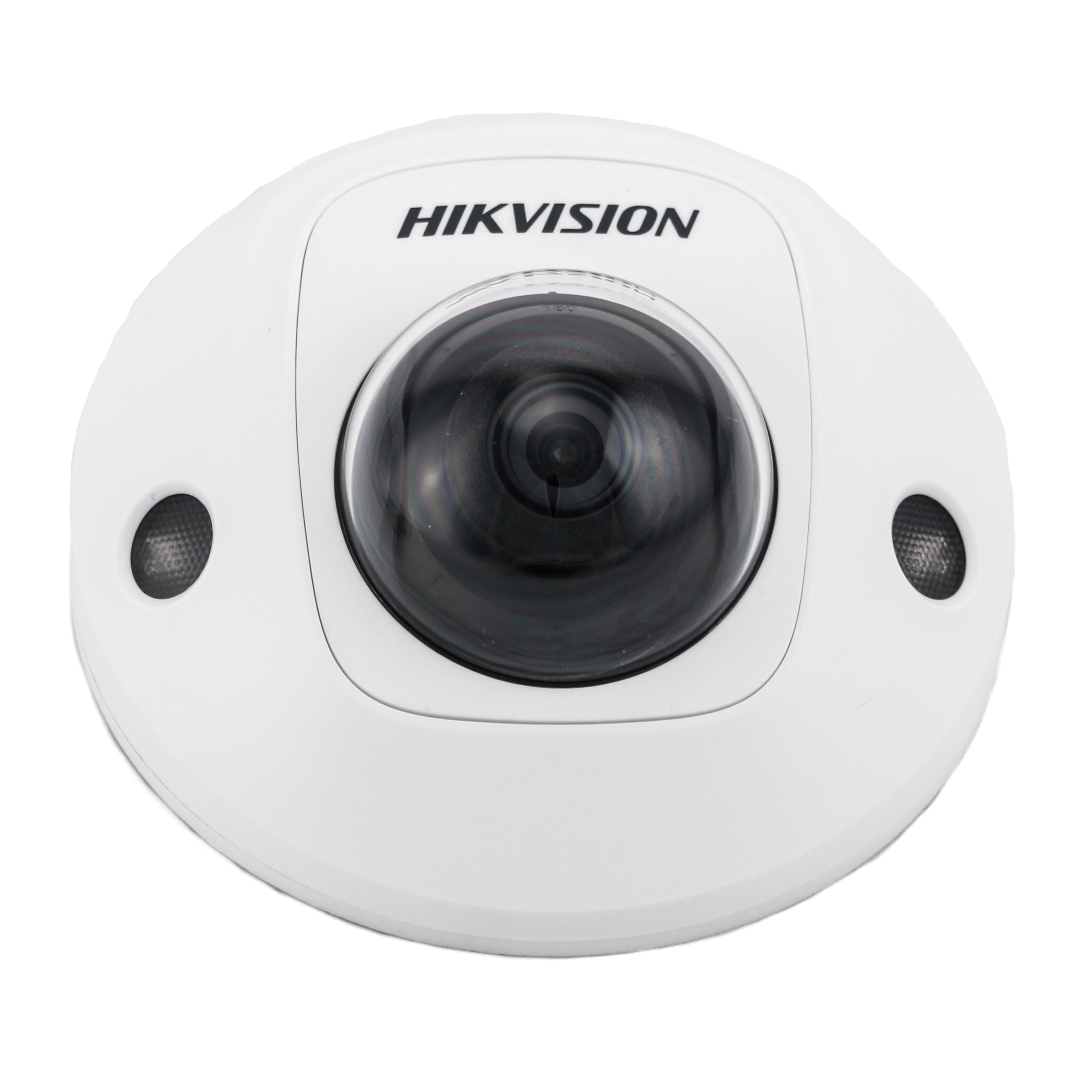

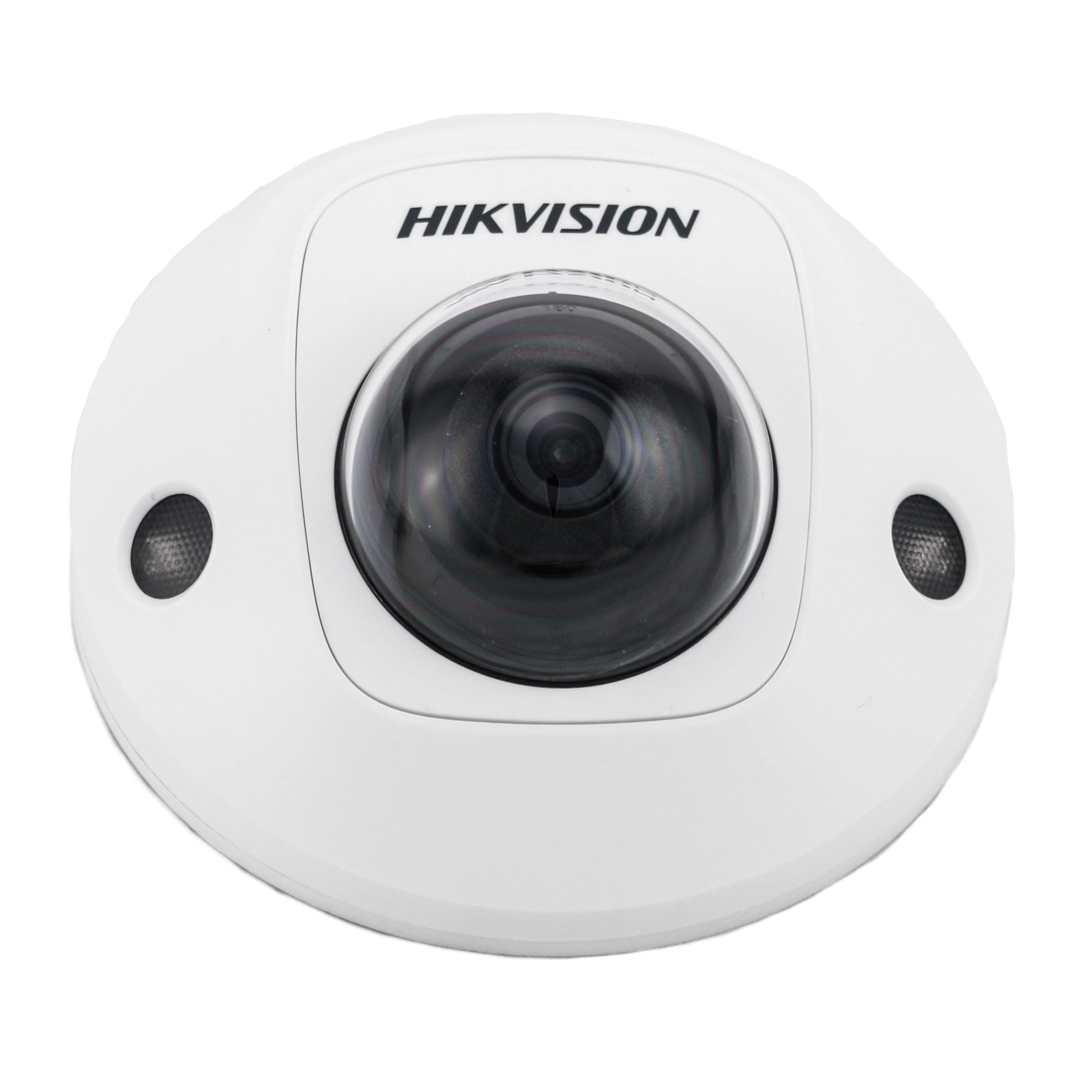

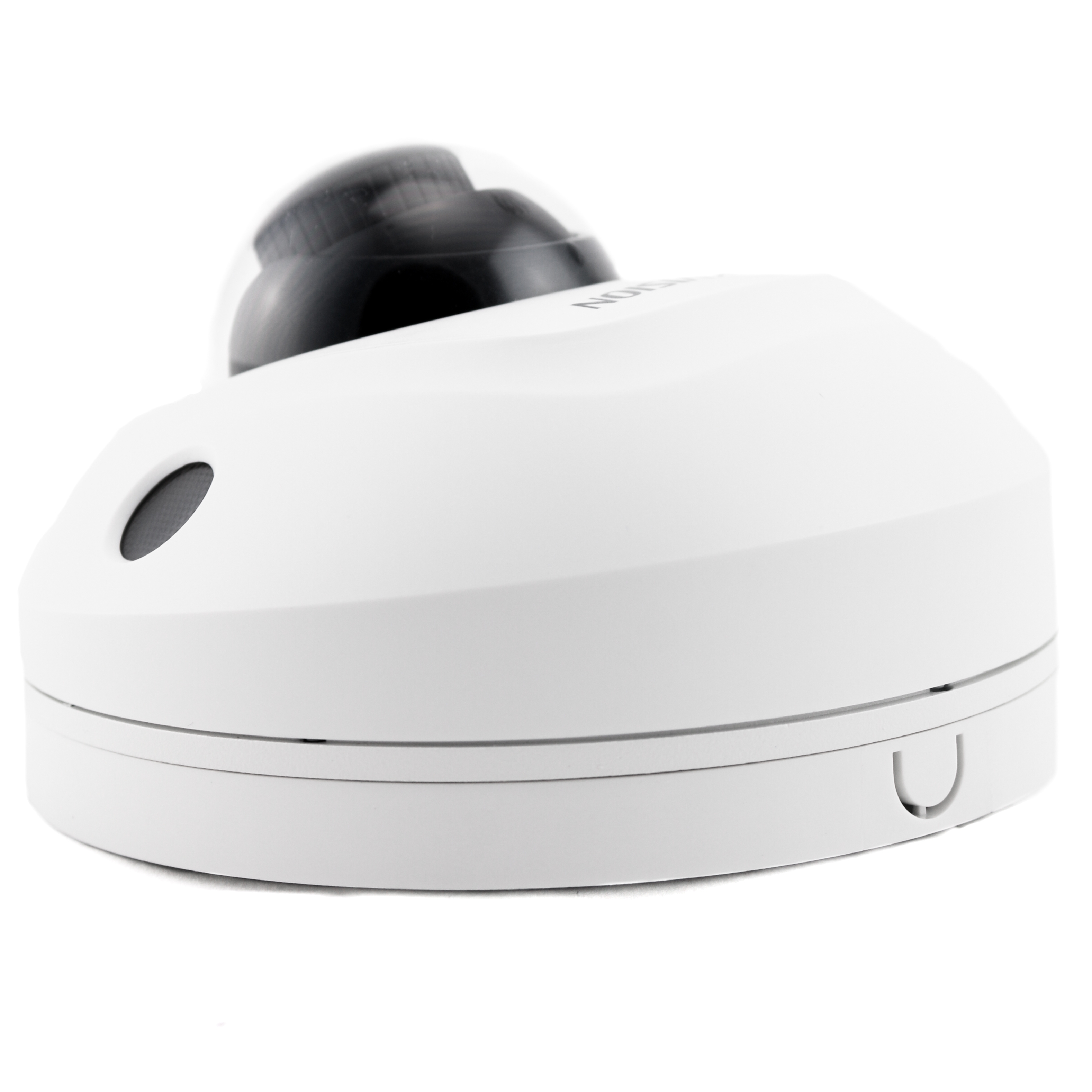

Hikvision DS-2CD2535FWD-I | 4mm 3MP Mini Dome Network Camera
Fitted with EXIR IR LEDs and IP66 rated weatherproof housing, the DS-2CD2535FWD-I is a great choice for outdoor applications where a discrete camera may be preferred.
Hikvision Product CatalogueHikvision Quick GuideUser ManualMini Dome Quick Start Manual
Product Datasheets
Hikvision DS-2CD2535FWD-I | 4mm 3MP Mini Dome Network Camera Datasheet (0.86MB)
- 2048 x 1536
- Max. 30 fps
- H.265+/H.265 support
- 120dB WDR

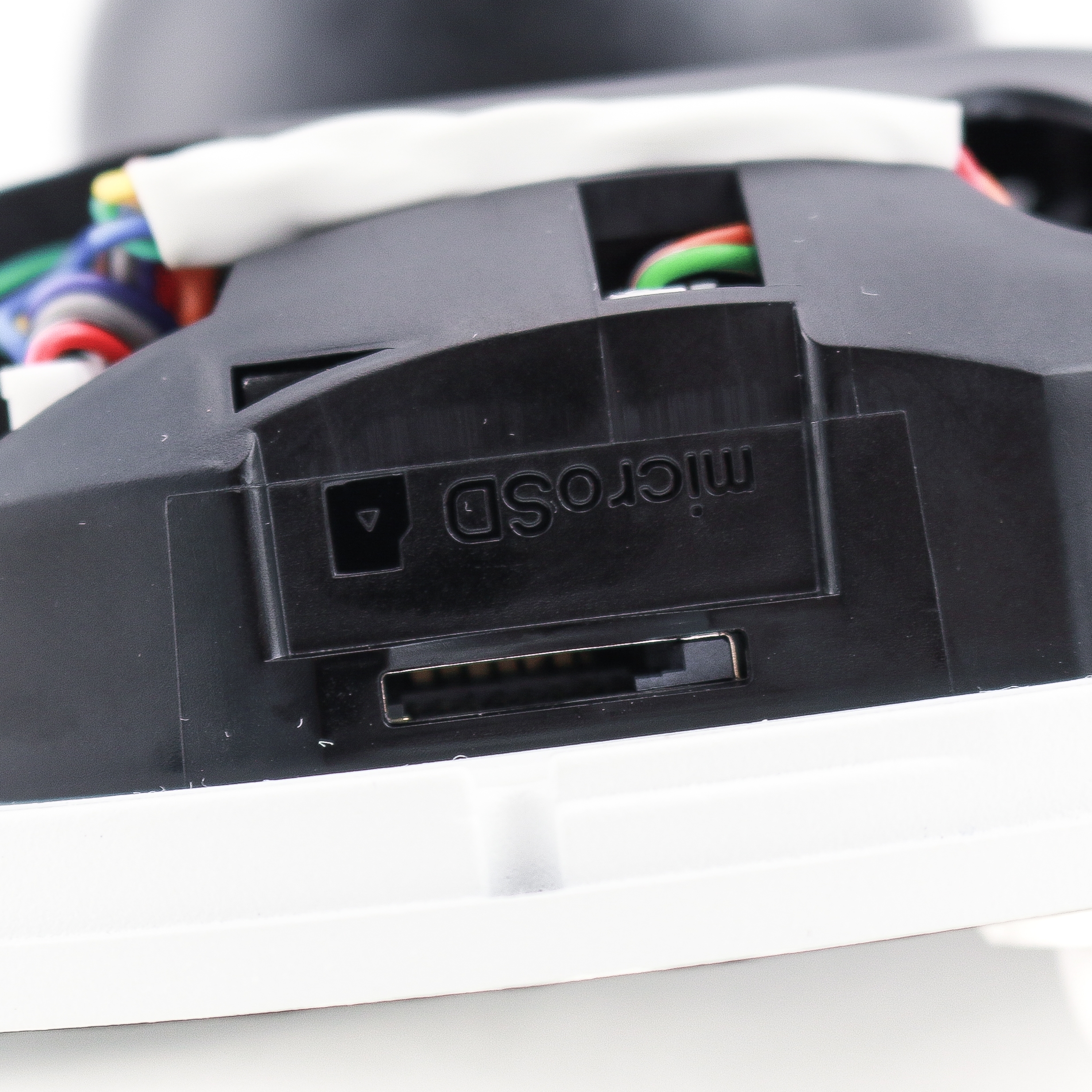

- Built in Micro SD/SDHC/SDXC card slot, supports up to 128GB

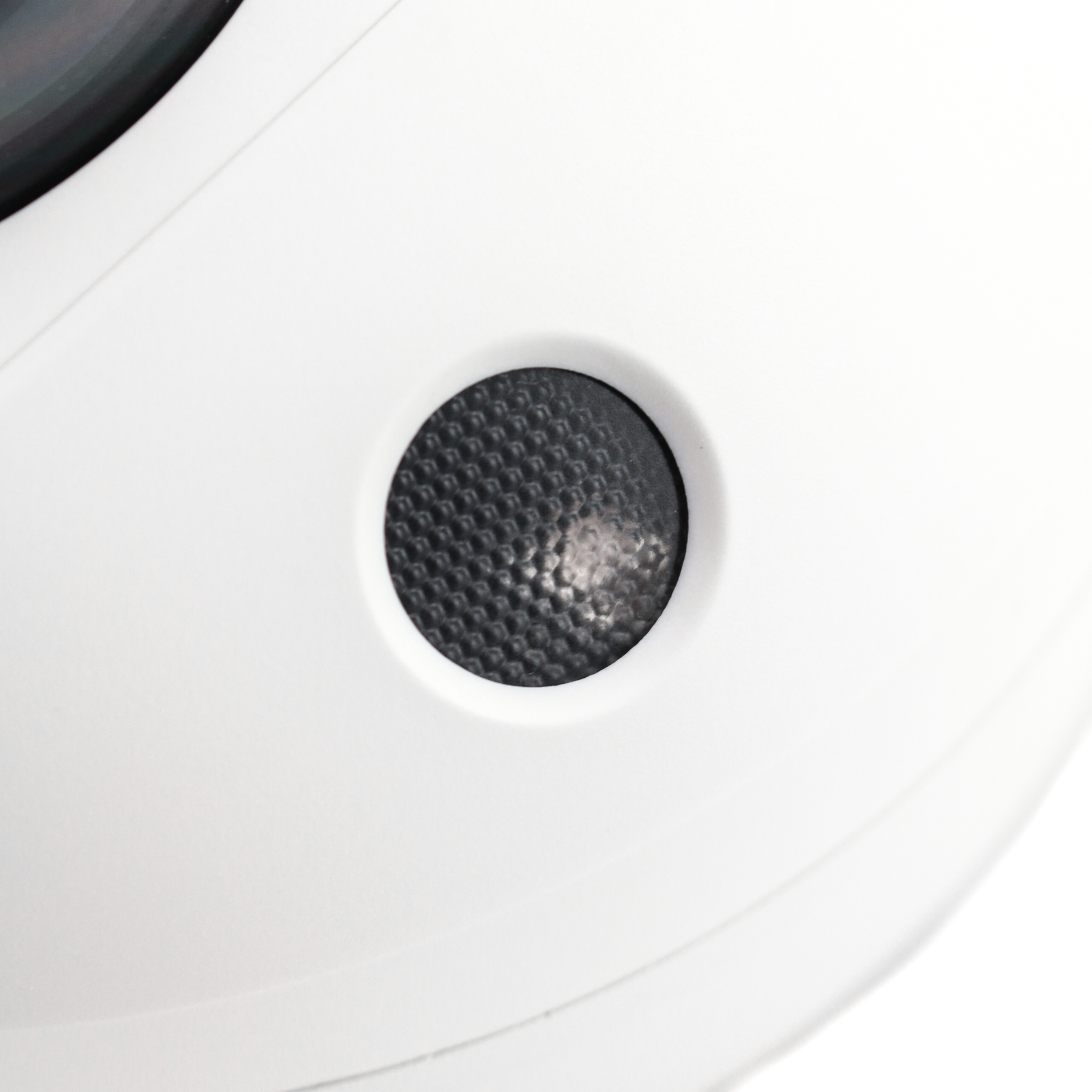

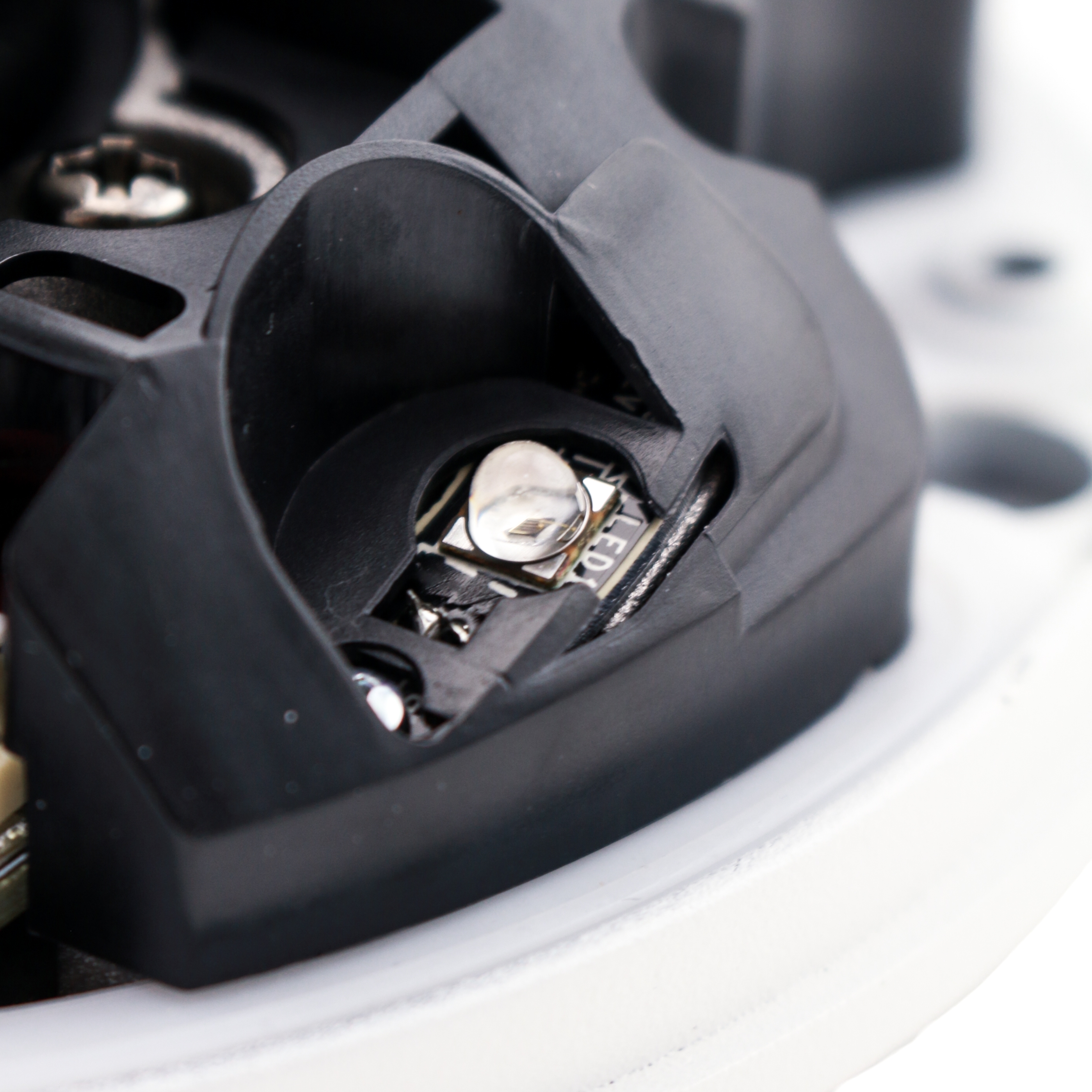

- 10m EXIR IR
- IP66 rated weatherproof housing
- IK08 housing
4mm - Horizontal field of view: 78°
Hikvision IP Camera Codes
| Weight | 400.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 2048 X 1536 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Lens Mount | M12 mount |

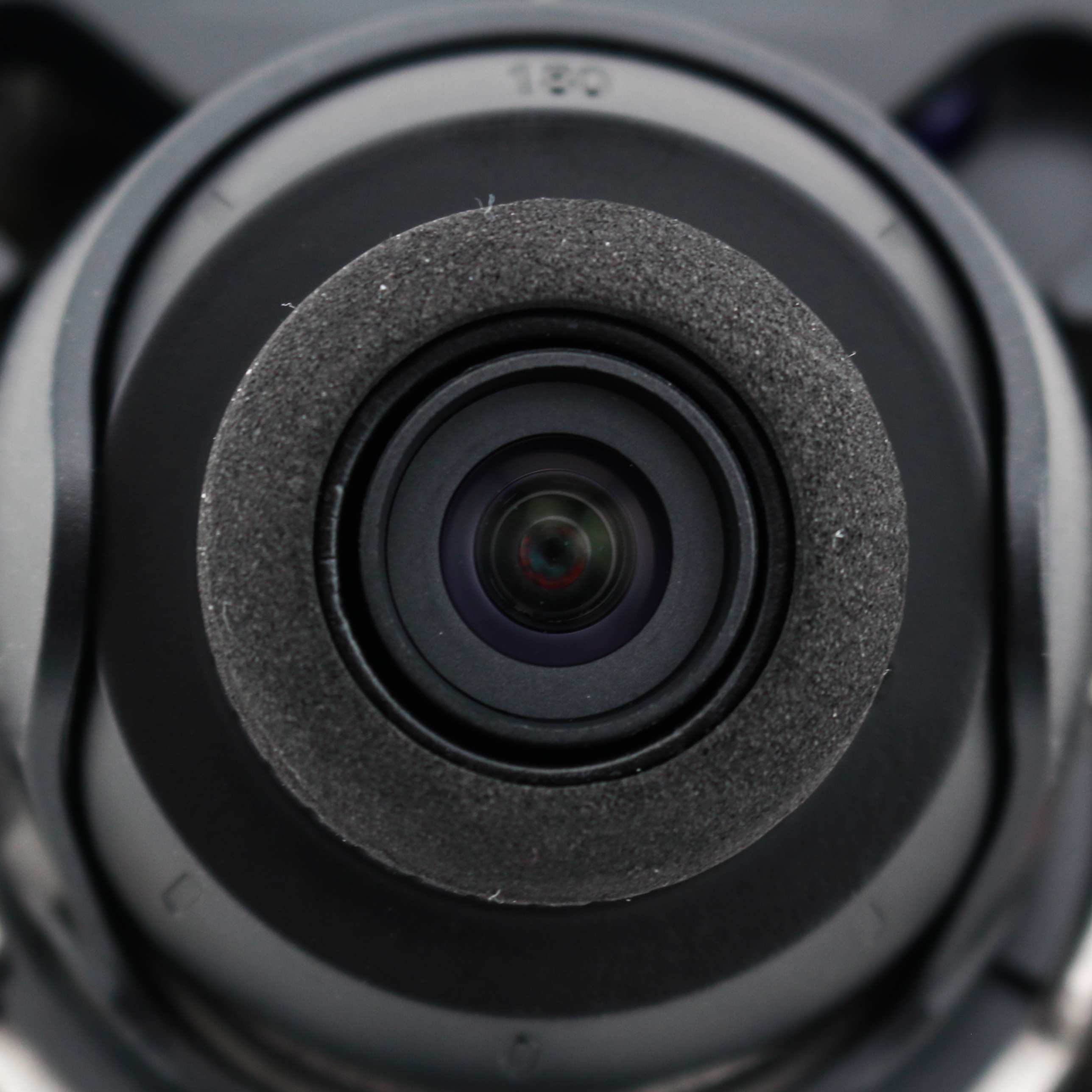

| Lens Focal Length | 4mm |
| Viewing Angle | 4mm - Horizontal field of view: 78° |
| Aspect ratio | 4:3 |
| Megapixels | 3 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| IR Range | Up to 10m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max.7.5W |
| Warranty | 3 Years |
| Launch Date | Spring 2018 |
| Focal Length | 4mm |
| Wireless | Wireless |
| Frames per Second | 8.3 fps |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
