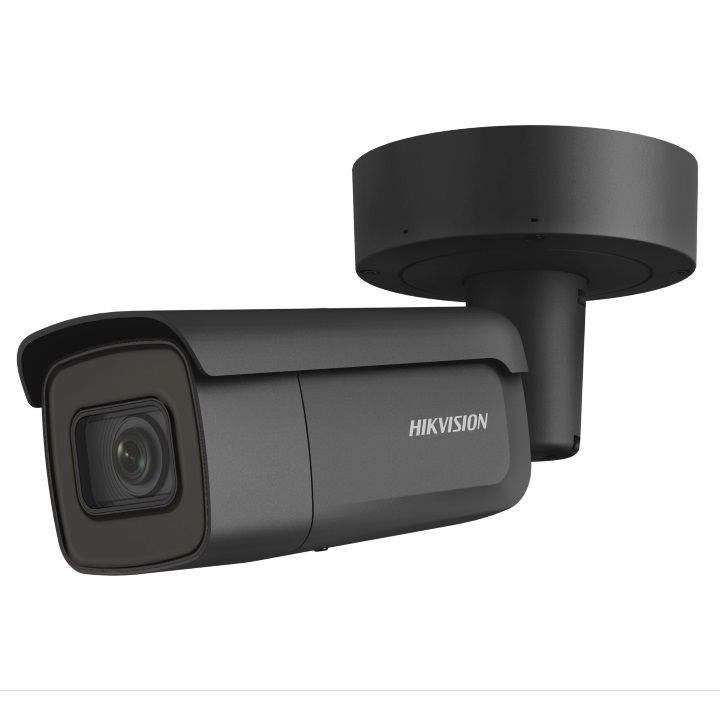

Hikvision DS-2CD2685FWD-IZS/B 8MP IR Varifocal Bullet Network Camera
The Hikvision DS-2CD2685FWD-IZS/B is an 8MP black IR varifocal bullet camera with a 1/2.8" progressive scan CMOS chip and a focal length of 2.8 - 12mm.
Supported by image enhancing features such as 3D digital noise reduction (3D DNR), high light compensation (HLC), 120dB wide dynamic range (WDR), and back light compensation (BLC), this camera gives users a high quality, detailed image in low-light environments.
Armed with a working temperature of -30 °C to +60 °C, IK10 vandal-proof housing, an IR range of up to 50m and IP67 weather-proof housing, the DS-2CD2685FWD-IZS/B is perfect for outdoor use although it can be used indoors too. It is also supported by 3-Axis with a tilt of 0° to 90°, and a panoramic & rotation movement of 0° to 365°.
This camera comes with face detection, intrusion detection, 4 behavior analysis, scene change detection and line crossing detection, which send users a notification if the camera picks up anything unusual.
The DS-2CD2685FWD-IZS/B has an on-board micro SD/SDHC/SDXC card slot, which allows up to 128GB of extra storage. This works with H.265+/H.265 compression, due to giving users a huge saving on storage and bandwidth usage compared to the H.264 compression previously used.
This is powered by PoE or with a 12V DC power supply. Users can access their camera via web browsers or smart phone due to Hik-Connect.
Please note, this camera does not come with a power supply.
Hikvision Product Catalogue Hikvision Quick Guide Hikvision DS-2CD2685FWD-IZS/B User Manual
Product Datasheets
Hikvision DS-2CD2685FWD-IZS/B 8MP IR Varifocal Bullet Network Camera Datasheet (1.16MB)
- IR range: up to 50m
- 1/2.5" Progressive Scan CMOS
- Smart encoding: Support low bit rate, low latency
- 3840 × 2160 @20fps
- 4 behavior analyses and face detection
- H.265, H.265+
- IP67, IK10
- Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
2.8mm - 12mm: Horizontal field of view: 115° to 35°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 1893.000000 |
|---|---|
| Image chip size | 1/2.5" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Audio input/output (full duplex) |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| Max. Resolution | 3840 X 2160 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | Φ14 |
| Lens Focal Length | 2.8~12mm |
| Viewing Angle | Horizontal Field of View: 115° to 35°, Vertical Field of View: 60° to 19°, Diagonal Field of View: 146° to 38.5°. |
| Aspect ratio | N/A |
| Megapixels | 8 MP |
| Supplied with lens | Yes |
| IR Range | Up to 50m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 19W |
| Warranty | 3 Years |
| Launch Date | Spring 2019 |
