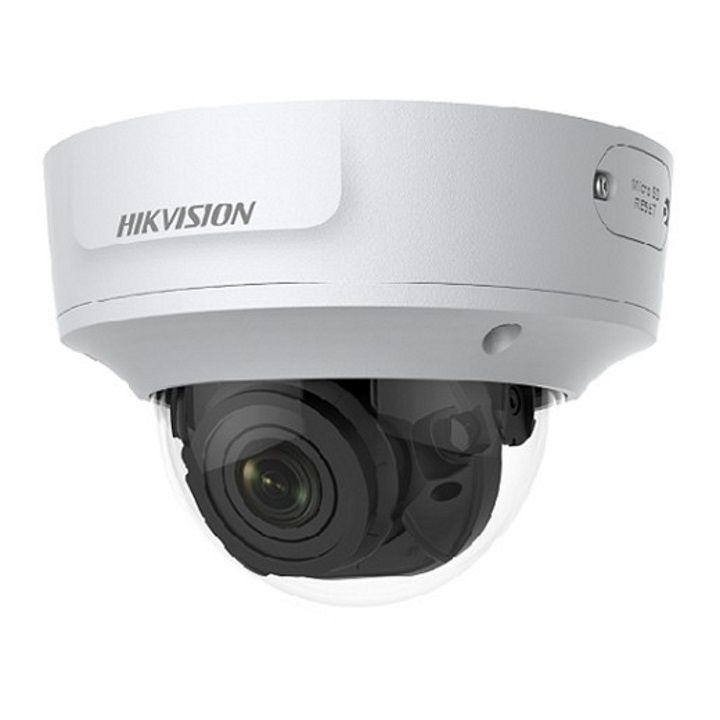

Hikvision DS-2CD2746G1-IZS AcuSense 4MP IR Varifocal Dome Network Camera
The Hikvision DS-2CD2746G1-IZS is a 4MP varifocal dome camera, and part of the EasyIP 4.0 range of cameras.
Equipped with AcuSense Technology and empowered by deep learning algorithms, this camera is able to distinguish people and vehicles from other moving targets and so reduces false alarm notifications drastically.
With an IP67 weather-resistant and IK10 vandal-resistant housing along with IR LEDs effective up to 30m this camera is ideal for a wide range of outdoor applications such as; car parks, school grounds and residential areas etc.
Features 5 Different Behaviour Analysis:
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Exit Detection
- False Alarm Filter by target classification
Please note, this camera does not come with a power supply.
Hikvision DS-2CD2746G1-IZS User Manual Hikvision DS-2CD2746G1-IZS Quick Start GuideHikvision Product Catalogue
Product Datasheets
Hikvision DS-2CD2746G1-IZS AcuSense 4MP IR Varifocal Dome Network Camera Datasheet (1.13MB)
- Max. 2688 × 1520 @ 30fps.
- 120dB WDR.
- Support on-board storage, up to 128 GB.
- H.265, H.264.
- False alarm filter by target classification.
- 12 VDC & PoE (802.3af, class 3).
- IP67, IK10.
- IR range: Up to 30 m.
- Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR.
2.8mm - 12mm: Horizontal field of view: 101° to 29°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 890.000000 |
|---|---|
| Image chip size | 1/2.7" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265/H.264 |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 2688 X 1520 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | Φ14 |
| Lens Focal Length | 2.8~12mm |
| Viewing Angle | Horizontal Field of View: 101° to 29°, Vertical Field of View: 54° to 16°, Diagonal Field of View: 121° to 34°. |
| Aspect ratio | N/A |
| Megapixels | 4 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| IR Range | Up to 30m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 12.9W |
| Warranty | 3 Years |
| Launch Date | Spring 2019 |
