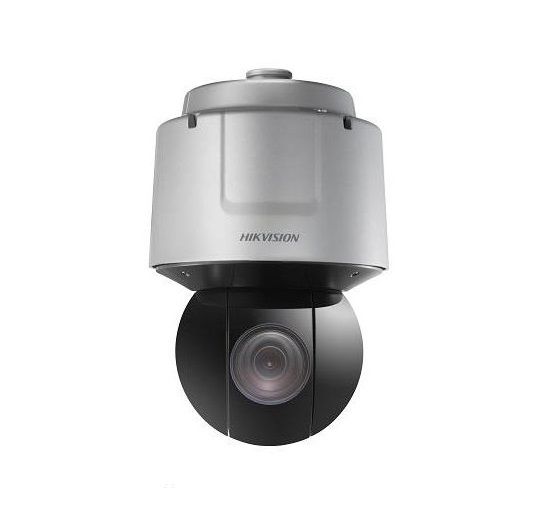

Hikvision DS-2DF6A236X-AEL 2MP 36X PTZ Camera
The DS-2DF6A236X-AEL is equipped with a variety of image enhancing features which make it perfect for low light environments: 120dB wide dynamic range (120dB), 3D digital noise reduction (3D DNR), highlight/back light compensation (HLC/BLC), defog, electronic image stabilization (EIS). With the help of these features the DS-2DF6A236X-AEL is effective in colour at 0.002 lux and black and white at 0.0002 lux.
This camera also uses a range of smart features in improve security such as intrusion detection, line crossing detection, face detection and many more. It also uses the latest technology in auto tracking and can track specific target types such as humans or vehicles.
The DS-2DF6A236X-AEL supports 300 presets, 8 patrols and 4 pattern scans. IT also supports H.265+ video compression which offers a huge saving on bandwidth and storage usage meaning that the on-board SD card slot can be used more effectively.
This PTZ can be powered by a 24V AC power supply or by 50W PoE injector and can be accessed remotely through a browser or through the Hik-Connect app.
Contact us for stock levels.
Hikvision Product Catalogue Hikvision Quick Guide
Product Datasheets
Hikvision DS-2DF6A236X-AEL 2MP 36X PTZ Camera Datasheet (0.84MB)
- 36x optical zoom
- 16x digital zoom
- H.265+/H.265 video compression
- IP67 rated weatherproof housing
- IK10 vandal resistant housing
- Audio I/O
- 120dB WDR
- 3D DNR
- HLC/BLC
- Defog
- EIS
- Can be powered by either 24V AC power supply or by Hi-PoE
- Auto-tracking 2.0
- Perimeter protection
- Min illumination:
Color: 0.002 lux
B/W: 0.0002 lux
5.7mm - 205.2mm: Horizontal field of view: 59.8° to 2°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 6000.000000 |
|---|---|
| Image chip size | 1/1.9" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Audio input/output (full duplex) |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | PoE ++ |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.002 |
| Lens Mount | optical zoom lens |
| Lens Focal Length | 5.7mm~205.2 mm |
| Viewing Angle | 59.8° to 2.0° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| Max. Images per second | 50 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 60W |
| Warranty | 3 Years |
| Launch Date | Spring 2018 |
