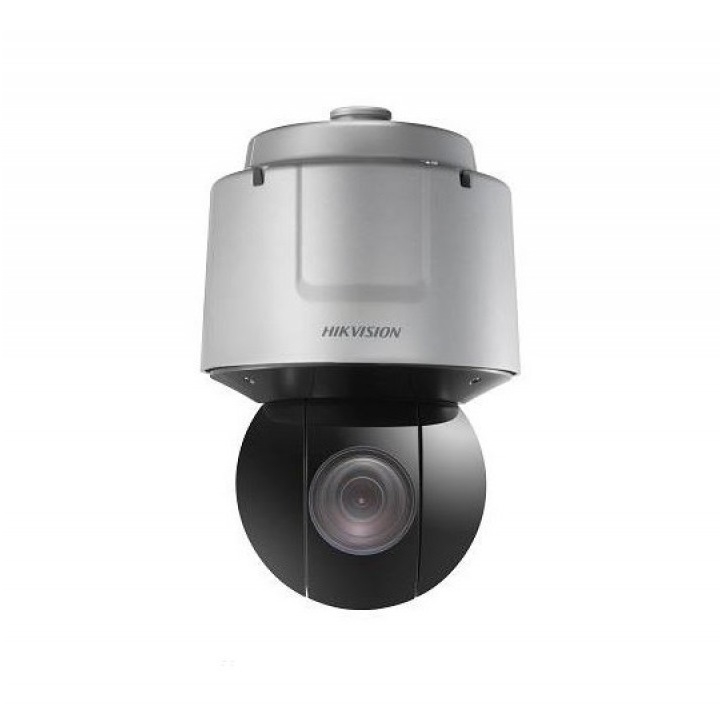

Hikvision DS-2DF6A836X-AEL 8MP 36x Network Speed Dome Camera
The Hikvision DS-2DF6A836X-AEL is an 8 megapixel 36x network speed dome camera with a 36x optical zoom lens, this camera is able to provide clear images with great detail over large areas.
This camera is packed full of advanced features including
Perimeter detection
- Line crossing
- Region entrance
- Region exiting
- Alarm triggering by target types
Event detection
- Unattended baggage detection
- Object removal detection
- Face detection
- Audio exception detection
Smart tracking
- Manual tracking
- Auto tracking
- Event tracking
Contact us for stock levels.
Hikvision Product Catalogue Hikvision Quick Guide
Product Datasheets
Hikvision DS-2DF6A836X-AEL 8MP 36x Network Speed Dome Camera Datasheet (0.82MB)
- 2/3" progressive scan CMOS
- Up to 4096 x 2160 resolution
- Min. illumination; colour 0.005 lux @ F1.5, AGC ON, B/W 0.0005 lux
- 36× optical zoom, 16× digital zoom
- Digital WDR, 3D DNR, HLC, BLC, Defog, EIS
- 24 VAC &Hi-PoE
- Support H.265+/H.265 video compression
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- IK10, IP67
7.5mm - 270mm: Horizontal field of view: 56.1° to 2.0°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 6000.000000 |
|---|---|
| Image chip size | 2/3" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 4096 X 2160 |
| Min. low-light lux | 0.005 |
| Supply Volts | 24V AC, PoE+ |
| Lens Mount | optical zoom lens |
| Lens Focal Length | 7.5 ~ 270mm |
| Viewing Angle | 56.1° ~ 2.0° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 8 MP |
| Supplied with lens | Yes |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 60W |
| Warranty | 3 Years |
| Launch Date | Autumn 2018 |
