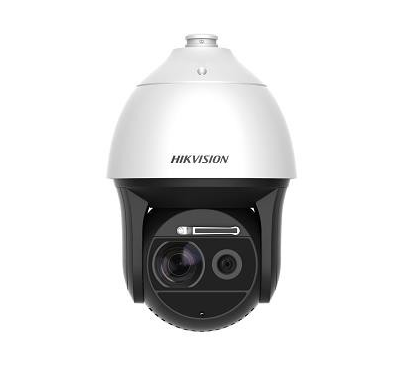

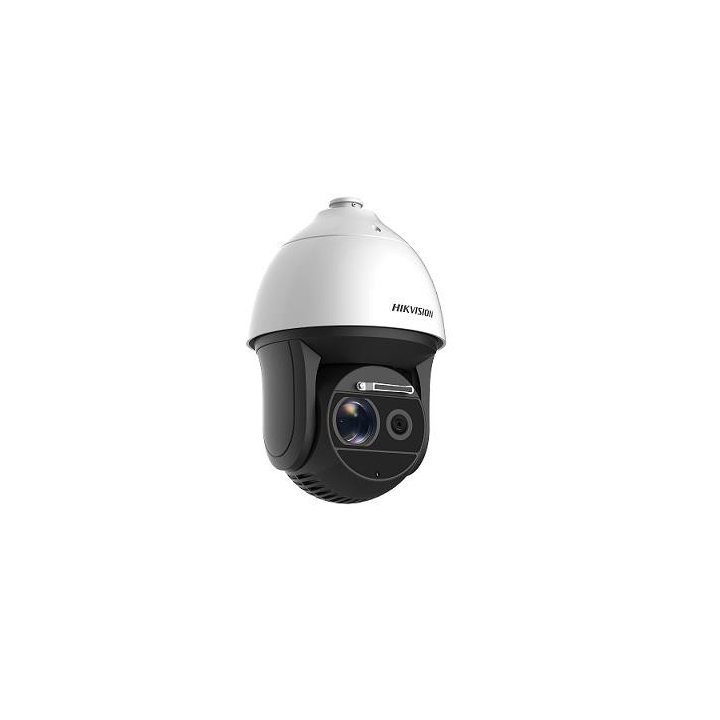

Hikvision DS-2DF8436I5X-AELW Darkfighter 4MP Laser Speed Dome Camera
The Hikvision DS-2DF8436I5X-AELW is a 4MP auto focus laser speed dome camera with a 1/1.9" progressive scan CMOS chip and a focal length of 5.7 - 205.2 mm. Users also get free video management using the Hikvision iVMS-4200 remote access software.
Armed with IP66 weather-proof housing and a working temperature of -40°C to 65°C, this camera is perfect for either indoor or outdoor use. It is also supported by a silicone wiper on the surface of the lens, which allows for easy cleaning due to wiping away dirt and water that congregates on the lens, giving users a clear image despite the weather conditions.
This camera is part of the Darkfighter series which allows high quality images in low light environments due to enhancing features such as, wide dynamic range (WDR), back light / high light compensation (BLC/HLC), 3D digital noise reduction (DNR) and auto tracking 2.0.
With a built in memory card slot that supports micro SD/SDHC/SDXC, this allows 265GB of storage, which can be used to its full ability due to H.265+/H.265 compression. This then allows users more saving on storage and bandwidth than the H.264 compression
The DS-2DF8436I5X-AELW comes with 36x optical zoom & 16x digital zoom lens and a laser distance of up to 500m. This is supported by a panoramic movement of 360° and tilt from -20° to 90°, giving the user a detailed, high quality image over a large area.
Please note, this camera does not come with a power supply.
Hikvision DS-2DF8436I5X-AELW User Manual Hikvision DS-2DF8436I5X-AELW Quick Start Guide
Product Datasheets
Hikvision DS-2DF8436I5X-AELW Darkfighter 4MP Laser Speed Dome Camera Datasheet (0.70MB)
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
- Digital WDR, 3D DNR, HLC, Smart IR
- Support H.265+/H.265 video compression
- Up to 2560 × 1440 resolution
- 24 VAC & Hi-PoE
- Wiper
- Up to 500 m laser distance
- Min. Illumination:
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR
5.7mm - 205.2mm: Horizontal field of view: 51.1° to 1.7°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 8000.000000 |
|---|---|
| Image chip size | 1/1.9" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Audio input/output (full duplex) |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1440 |
| Supply Volts | HPoE or 24V AC |
| Lens Mount | auto-focus zoom lens |
| Lens Focal Length | 5.7mm~205.2 mm |
| Viewing Angle | Horizontal Field of View: 51.1° to 1.7°, Vertical Field Of View: 31.3° to 1.0°, Diagonal Field Of View: 58.0° to 2.0°. |
| Aspect ratio | N/A |
| Megapixels | 4 MP |
| Supplied with lens | Yes |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 60W |
| Warranty | 3 Years |
| Launch Date | March 2019 |
