Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch

Contact Us for Stock Levels
SKU
DS-3E0105P-E
Be the first to review this product
Notify me when the price drops
Add to Wish List Add to Compare
The DS-3E0105P-E is a 4 port PoE switch designed to help you expand your network by automatically detecting and supplying power with all PoE and PoE+ compliant powered devices. One port can act as a 250m PoE extender when "Extend mode" is ON.
Network Ports: 5
Switching Capacity: 1Gbps
High Priority Ports: Port 1
Working Mode: Extend On:250m,10M,CAT 5e, Extend Off:100m
Power Supply: 51V DC, 1.25A
Power Consumption: ≤63W
Surge Protection: 4KV
Working Temperature: 0℃-40℃
Weight: 0.299kg
Dimension: 132 mm* 93.3mm * 27.6mm
PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

DS-3E0105P-E Banner

Hikvision Quick Guide

Product Datasheets

Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch Datasheet (0.47MB)

Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
Hikvision DS-3E0105P-E 4 Port Unmanaged PoE Switch
- IEEE 802.3at and IEEE 802.3af Power over Ethernet compliant
- 4 x 10/100Mbps Auto-MDIX PoE ports
- Provides up to 30 watts per PoE port
- With Extend mode on 1 port acts as a PoE extender up to 250m
- PoE power budget 58W
- 4 kV surge protection
- IEEE 802.3x flow control support
- Plug and play installation
- 1 Gbps switching fabric
- 448 Kbits RAM Data Buffer
- 1K MAC address entries
- Strong metal enclosure

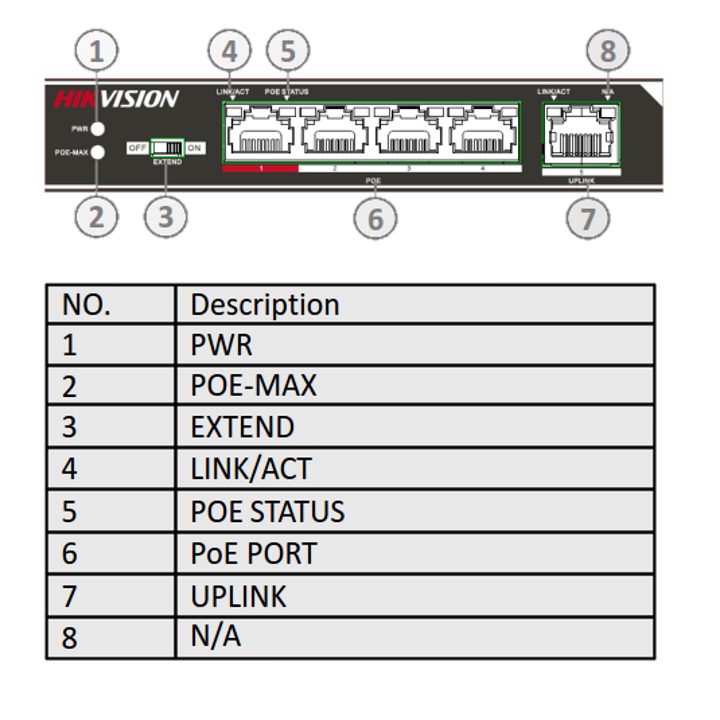

DS-3E0105P-E Interfaces

Specs
Weight 299.000000
