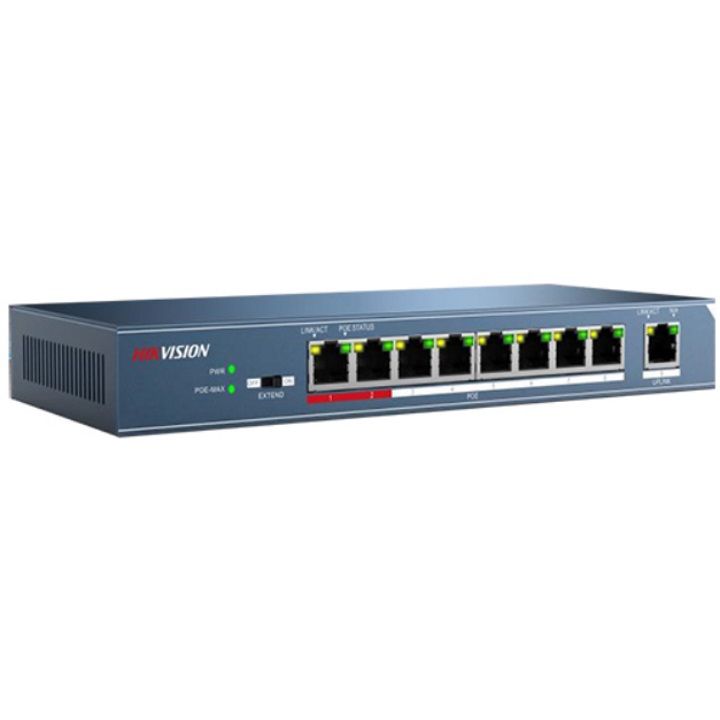

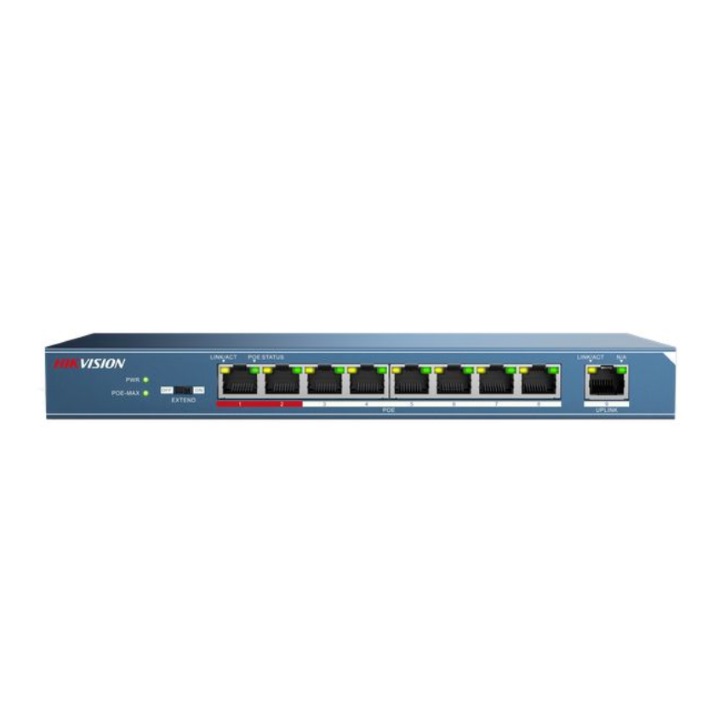

Hikvision DS-3E0109P-E 8 Port Unmanaged PoE Switch
Network Ports: 9
Switching Capacity: 1.8Gbps
High Priority Ports: Port 1-2
Working Mode: Extend On:250m,10M,CAT 5e, Extend Off:100m
Power Supply: 51V DC, 2.5A
Power Consumption: ≤127W
Surge Protection: 4KV
Working Temperature: 0℃-40℃
Weight: 0.57kg
Dimension: 235mm*103mm*27mm
Hikvision Quick Guide
Product Datasheets
Hikvision DS-3E0109P-E 8 Port Unmanaged PoE Switch Datasheet (1.42MB)
- 8 x 10/100Mbps Auto-MDIX PoE ports
- Provides up to 30 watts per PoE port
- With Extend mode on 2 ports act as a PoE extender up to 250m
- PoE power budget 123W
- 4 kV surge protection
- IEEE 802.3x flow control support
- Plug and play installation
- 1.8 Gbps switching fabric
- 1.25 Mbits RAM Data Buffer
- 4K MAC address entries
- Strong metal enclosure
| Weight | 570.000000 |
|---|
