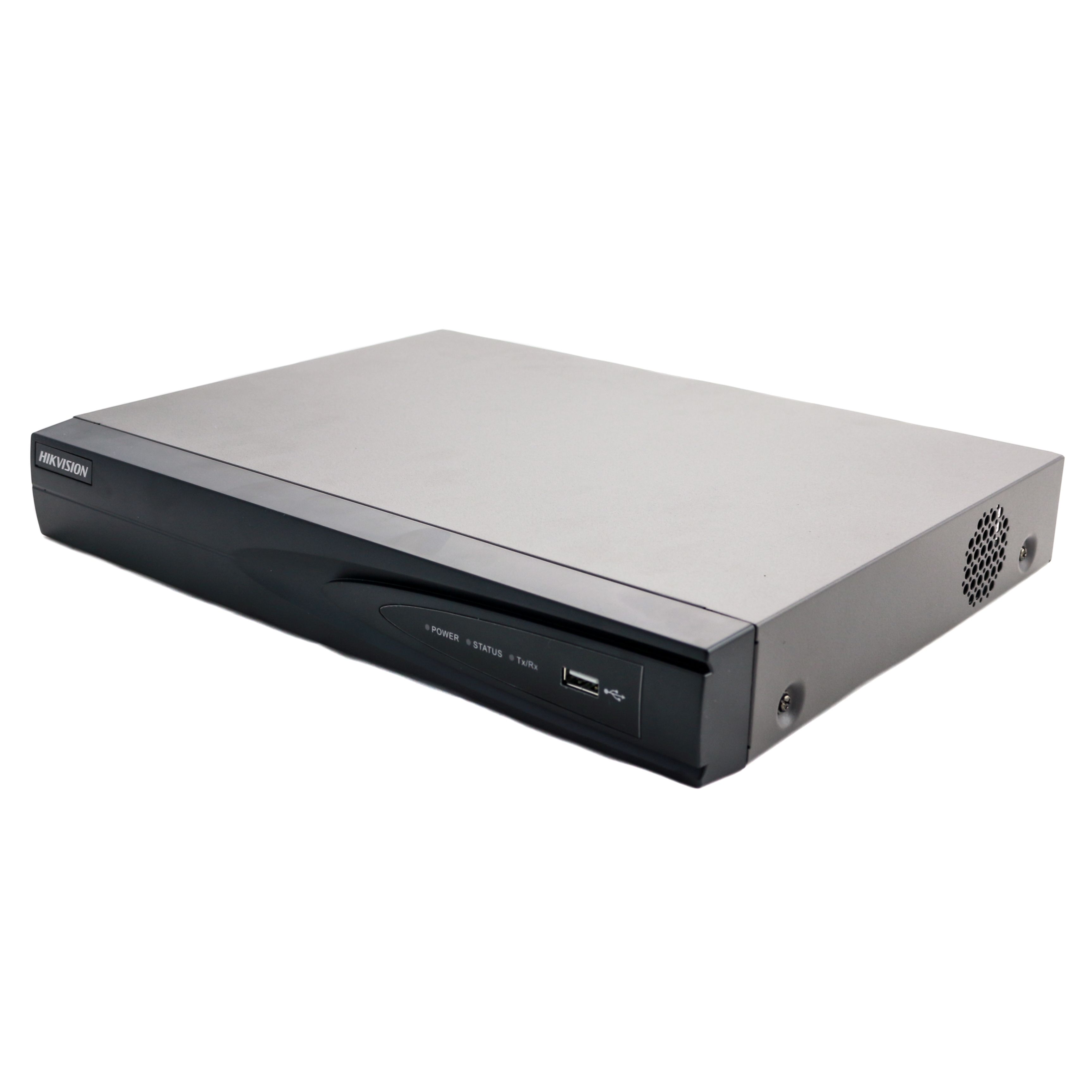

Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder
The Hikvision DS-7604NI-K1/4P is a 4 channel network video recorder that can support up to 8MP IP cameras. This NVR has 4 built in PoE ports to make set up simple and easy.
With a space for one hard drive, the DS-7604NI-K1/4P has a maximum storage capacity of 10TB and can support H.265 cameras to put less stress on storage and bandwidth usage.
There is an HDMI and VGA port that allows one monitor to be connected, however, the NVR can also be accessed remotely via Hik-Connect or a browser. It also supports two-way audio and Hikvision's Automatic Number Plate Recognition (ANPR) cameras.
The DS-7604NI-K1/4P includes a power supply and a mouse.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication
New (B) models now support H.265+
Max. HDD Support - 10TB (1x SATA Drive).
Max. Supported IP Cameras - 4
Max. Megabits Per Second - 40Mbps
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple Series HDD for this product.
Hikvision NVR User Manual Hikvision NVR Quick Start Guide Hikvision Product Catalogue Hikvision Quick Guide
Product Datasheets
Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder Datasheet (0.83MB)
Breaking News Friday 10th November: HikVision have released a significant V4 firmware update for -I NVRs. It is not yet clear whether -K NVRs will also receive this update. For further information & updates please click here.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
- 4 Channel PoE IP Camera Ports
- Support for up to 8MP recording and playback
- Support for 4k video output
- H.264/H.264+/H.265 video codecs
- 1 SATA interface to connect 1 x 10TB hard drive
- Support for VCA detection alarm
- Compatible with third-party IP cameras
| Weight | 1000.000000 |
|---|---|
| Number of Channels | 4 |
| Synchronous Playback | 4-ch |
| Number of PoE Ports | 4 |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Number of Bays | 1 |
| Audio Input | 1-ch |
| Audio Ouput | 1-ch |
| Front USB | 1 x USB 2.0 |
| Rear USB | 1 x USB 2.0 |
| Fan | No |
| RAID | No |
| ANR (Automatic Network Recover) | No |
| HDD Capacity Supplied | 0GB (Hard Disk Drives sold seperately to demand) |
| Maximum Memory Capacity | 12TB |
| Chassis | 1U |
| Dimensions | 315 x 240 x 48mm |
| Warranty | 3 Years |
| Launch Date | August 2016 |
