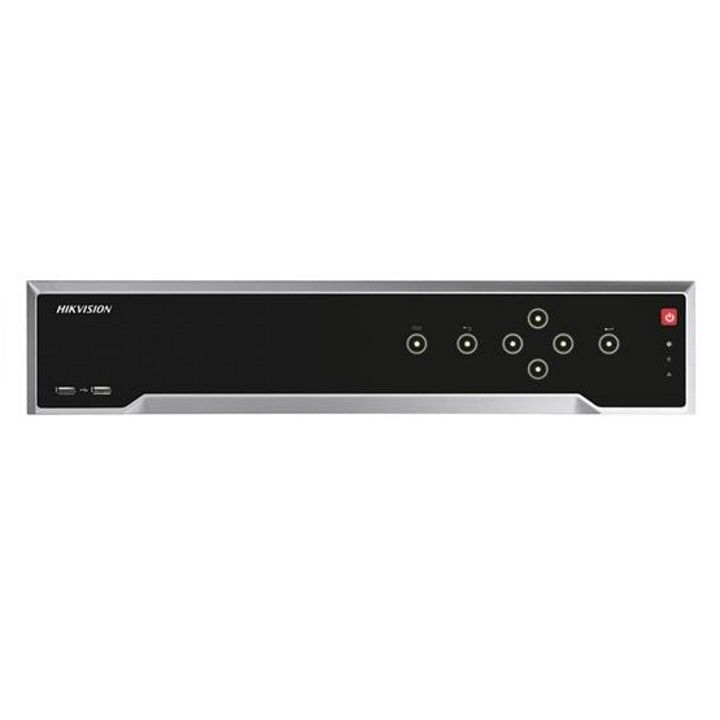

Hikvision DS-7716NI-I4-16P 16 Channel Network Video Recorder
The Hikvision DS-7716NI-I4-16P is a 16 channel network video recorder with 16 built-in PoE ports and 4 spaces for hard drives with a maximum capacity of 40TB.
With H.265+ support the DS-7716NI-I4-16P can support cameras up to 12MP.
There is an HDMI and VGA output designed for a monitor. Alternatively, this NVR can be accessed remotely through the Hik-Connect app or through a web browser.
The DS-7716NI-I4-16P also supports two-way audio and Hikvision's Automatic Number Plate Recognition (ANPR) software. Power supply, remote control, mouse and rack mount ears are included.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Max. HDD support - 40TB (4 x 10TB)
Max: supported IP cameras - 16
Max: Megabits per second (Mbps) - 160
Breaking News Friday 10th November:
HikVision have released a significant V4 firmware update for -I NVRs.
It is not yet clear whether -K NVRs will also receive this update.
For further information & updates please click here
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple HDDs for this product.
Contact us for stock levels.
Hikvision NVR User Manual Hikvision NVR Quick Start GuideHikvision Product Catalogue Hikvision Quick Guide
Product Datasheets
Hikvision DS-7716NI-I4-16P 16 Channel Network Video Recorder Datasheet (0.58MB)
- H.265+/H.265/H.264+/H.264/MPEG4 video formats
- Up to 16 IP cameras can be connected
- Supports live view, storage and playback of the connected camera at up to 12MP resolution
- HDMI and VGA outputs provided
- Up to 4 SATA interfaces connectable for recording and backup
- 16 independent PoE network interfaces are provided
Weight | 5000.000000 |
---|---|
Number of Channels | 16 |
Synchronous Playback | 16-ch |
Number of PoE Ports | 16 |
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 256 Mbps |
Number of Bays | 4 |
Audio Input | 1-ch |
Audio Ouput | 1-ch |
Alarm I/O | 16/4 |
Front USB | 2 x USB 2.0 |
Rear USB | 1 x USB 3.0 |
Fan | Yes |
RAID | No |
RS232 | Yes |
RS485 | Yes |
ANR (Automatic Network Recover) | Yes |
HDD Capacity Supplied | 0GB (Hard Disk Drives sold seperately to demand) |
Maximum Memory Capacity | 40TB |
Chassis | 1.5U |
Dimensions | 445 x 390 x 70mm |
Warranty | 3 Years |
Launch Date | 2015 |
Video |
