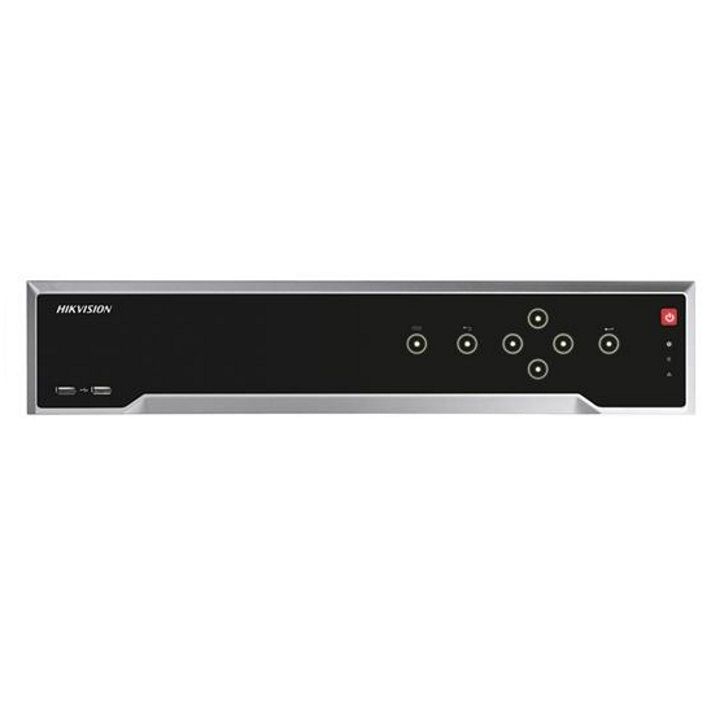

Hikvision DS-7732NI-I4-24P 32 Channel Network Video Recorder
The DS-7732NI-I4-24P is a 32 channel network video recorder from Hikvision with 24 built-in PoE ports. It has 4 spaces for hard drives and can hold a maximum capacity of 48TB.
This NVR can support cameras with up to 12MP resolution and uses H.265+ video compression to reduce storage and bandwidth usage.
The DS-7732NI-I4-24P supports two way audio and Hikvision's Automatic Number Plate Recognition (ANPR) cameras. There is also an HDMI and VGA output so that a monitor can be connected.
Alternatively, the NVR can be accessed remotely through a browser or through Hik-Connect.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Max. HDD support - 48TB (4 x 12TB)
Max: supported IP cameras - 32
Max: Megabits per second (Mbps) - 256
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple HDDs for this product.
Hikvision NVR User Manual Hikvision NVR Quick Start Guide
Product Datasheets
Hikvision DS-7732NI-I4-24P 32 Channel Network Video Recorder Datasheet (0.71MB)
Breaking News Friday 10th November: HikVision have released a significant V4 firmware update for -I NVRs. It is not yet clear whether -K NVRs will also receive this update. For further information & updates please click here
- H.265+/H.265/H.264+/H.264/MPEG4 video formats
- Up to 32 IP cameras can be connected
- Supports live view, storage and playback of the connected camera up to 12MP
- HDMI and VGA outputs provided
- Up to 4 SATA interfaces connectable for recording and backup
- 24 independent PoE network interfaces are provided
| Weight | 5000.000000 |
|---|---|
| Number of Channels | 32 |
| Synchronous Playback | 16-ch |
| Number of PoE Ports | 24 |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Number of Bays | 4 |
| Audio Input | 1-ch |
| Audio Ouput | 1-ch |
| Alarm I/O | 16/4 |
| Front USB | 2 x USB 2.0 |
| Rear USB | 1 x USB 3.0 |
| Fan | Yes |
| RAID | No |
| eSATA | 1 |
| RS232 | Yes |
| RS485 | Yes |
| ANR (Automatic Network Recover) | Yes |
| HDD Capacity Supplied | 0GB (Hard Disk Drives sold seperately to demand) |
| Maximum Memory Capacity | 48TB |
| Chassis | 1.5U |
| Dimensions | 445 x 390 x 70mm |
| Warranty | 2 Years |
| Launch Date | 2018 |
