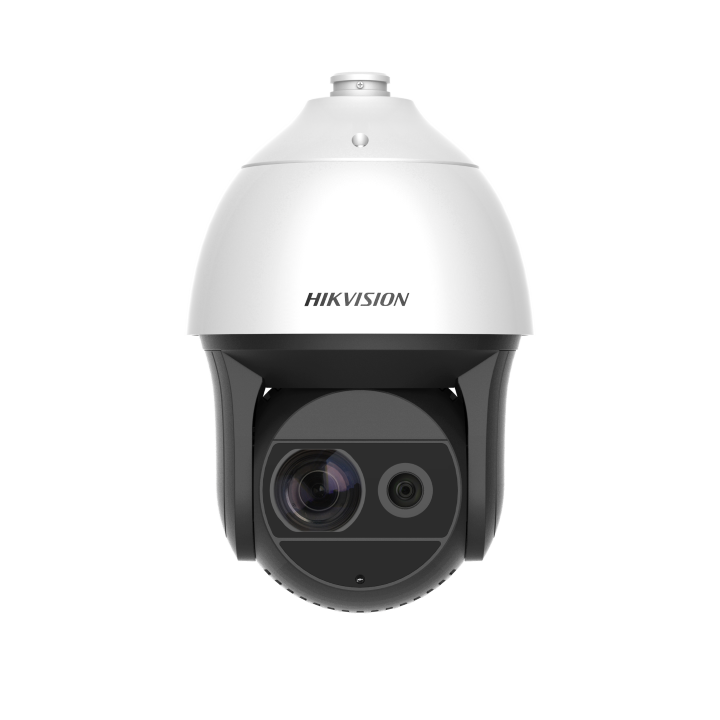

Hikvision DS-2DF8236I5X-AEL Darkfighter 2MP Laser Speed Dome Camera
The Hikvision DS-2DF8236I5X-AEL is a 2MP auto focus laser speed dome camera with 1/1.9" progressive scan CMOS chip and a focal length of 5.7 - 205.2mm. Users also get free video management using the Hikvision iVMS-4200 remote access software.
Armed with 36x optical zoom & 16x digital zoom lens and a laser distance of up to 500m, the DS-2DF8236I5X-AELW providers users with a high detailed image over expansive areas. This is then supported by a tilt range from -20° to 90°, a panoramic movement of 360° and IP66 weather-proof housing. This makes for a perfect outdoor camera with a working temperature of -40°C to 65°C, although users can have this as an indoor camera too.
With a built in memory card slot that supports micro SD/SDHC/SDXC, this allows 265GB of storage, which can be used to its full ability due to H.265+/H.265 compression. The then allows users more saving on storage and bandwidth than the H.264 compression
The DS-2DF8236I5X-AEL is part of the Darkfighter series which allows high quality images in low light environments due to enhancing features such as wide dynamic range (WDR), high light compensation (HLC) 3D digital noise reduction (DNR), defog and auto tracking 2.0.
Please note, this camera does not come with a power supply.
Hikvision DS-2DF8236I5X-AEL(W) User Manual Hikvision DS-2DF8236I5X-AEL(W) Quick Start GuideHikvision Product Catalogue Hikvision Darkfighter Catalogue Hikvision Quick Guide
Product Datasheets
Hikvision DS-2DF8236I5X-AEL Darkfighter 2MP Laser Speed Dome Camera Datasheet (0.69MB)
- Support H.265+/H.265 video compression
- Up to 1920 × 1080 resolution
- Up to 500 m laser distance
- 36× optical zoom, 16× digital zoom
- 120dB WDR, 3D DNR, HLC, Smart IR
-Min. Illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
5.7mm - 205.2mm: Horizontal field of view: 59.8° to 2.0°
For help on figuring out which focal length is best for you please see here.
Lux Levels - For more information on Lux Levels please look here.
| Weight | 8000.000000 |
|---|---|
| Image chip size | 1/1.9" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265+/H.265/H.264+/H.264 |
| Audio | Audio input/output (full duplex) |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 1920 X 1080 |
| Supply Volts | HPoE or 24V AC |
| Lens Mount | auto-focus zoom lens |
| Lens Focal Length | 5.7mm~205.2 mm |
| Viewing Angle | Horizontal Field of View: 59.8° to 2.0°, Vertical field of view: 33.6° to 1.1°, Diagonal field of view: 68.6° to 2.3°. |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 60W |
| Warranty | 3 Years |
| Launch Date | March 2019 |
