Milesight UI-5D42-CV 5MP Speed Dome Camera
The Milesight UI-5D42-CV is a Speed Dome Camera with a 360° endless pan and a 0~90° auto flip tilt providing users with fast and precise movement. Designed so that users can easily control lens position via mouse and set up to 255 preset positions for patrolling, this PTZ can provide great coverage of the areas of interest.
As well as that, the UI-5D42-CV has a 30x optical zoom lens which can zoom in on distant objects without any loss of clarity or quality. Smart PTZ motion detection provides users with extra peace of mind as the camera will automatically pan and tilt to a preset area when motion is detected. The camera will also zoom in on the detected object in the targeted area to provide a clear image before returning back to its previous monitoring position when motion is no longer detected in that area.

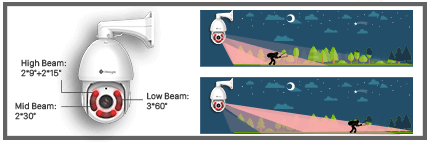

With IR LEDs effective up to 200m this speed dome is ideal for outdoor surveillance at night as it is able to provide distinct images over a large distance even at night. It is also equipped with an IP66 weatherproof housing protecting the camera from rain and dust ensuring a stable operation in all weather environments.
Milesight PTZ User ManualMilesight Product BrochureMilesight Product Catalogue
Product Datasheets
Milesight UI-5D42-CV 5MP Speed Dome Camera Datasheet (1.69MB)
- 30x optical zoom

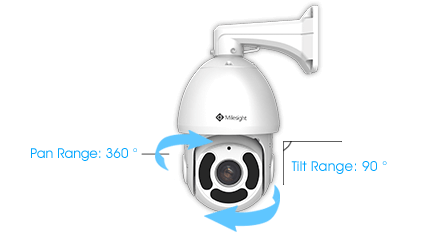

- 360° endless pan, 0°~90° auto flip tilt
- MicroSD card slot
- video content analysis
- IR LEDs effective up to 200m
- IP66 weather resistant housing
| Weight | 6000.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265 (HEVC)/H.264/MJPEG |
| Sensor | IMX326 |

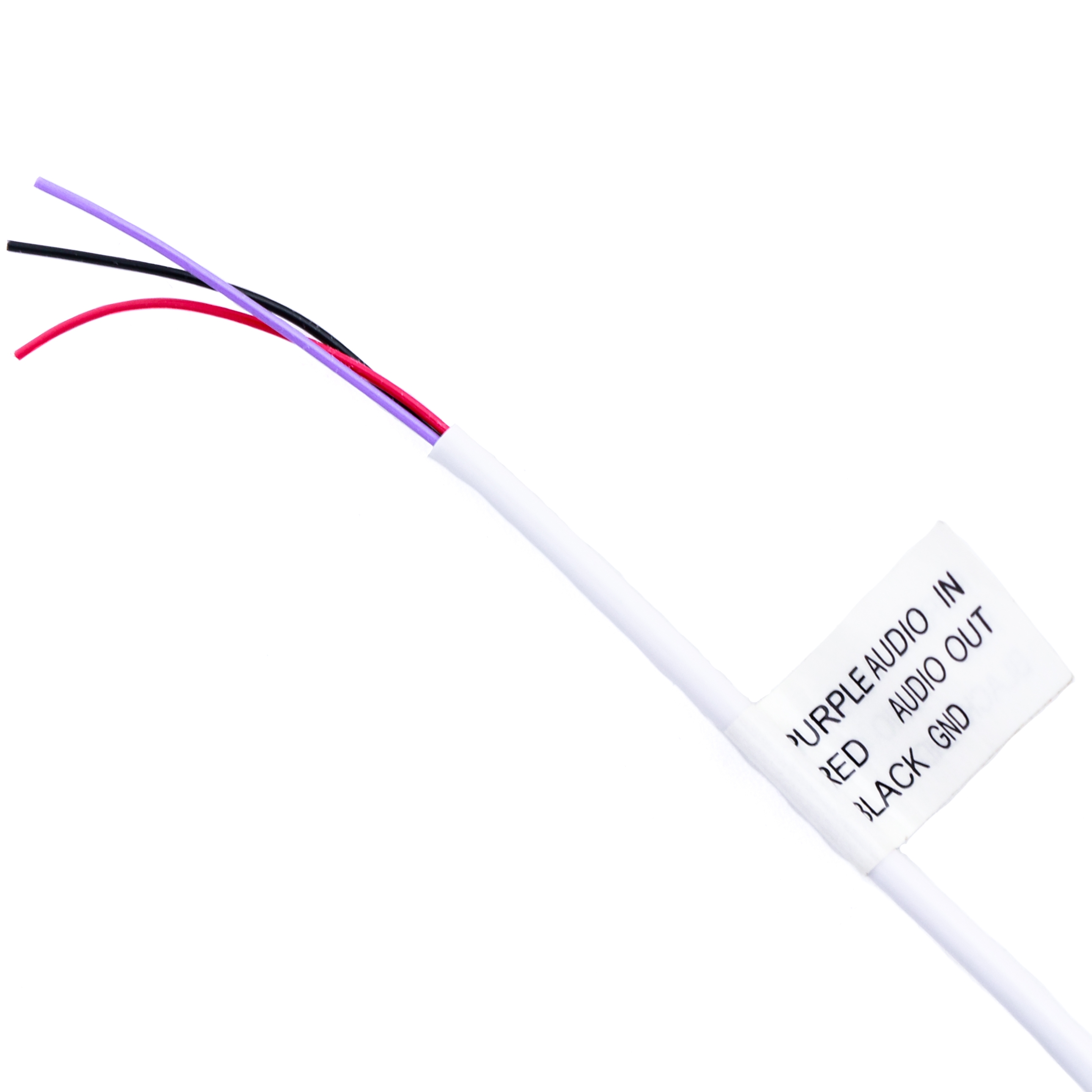

| Audio | G.711 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | No |
| Max. Resolution | 2048 X 1536 |
| Min. low-light lux | 0 Lux (IR LED ON) |

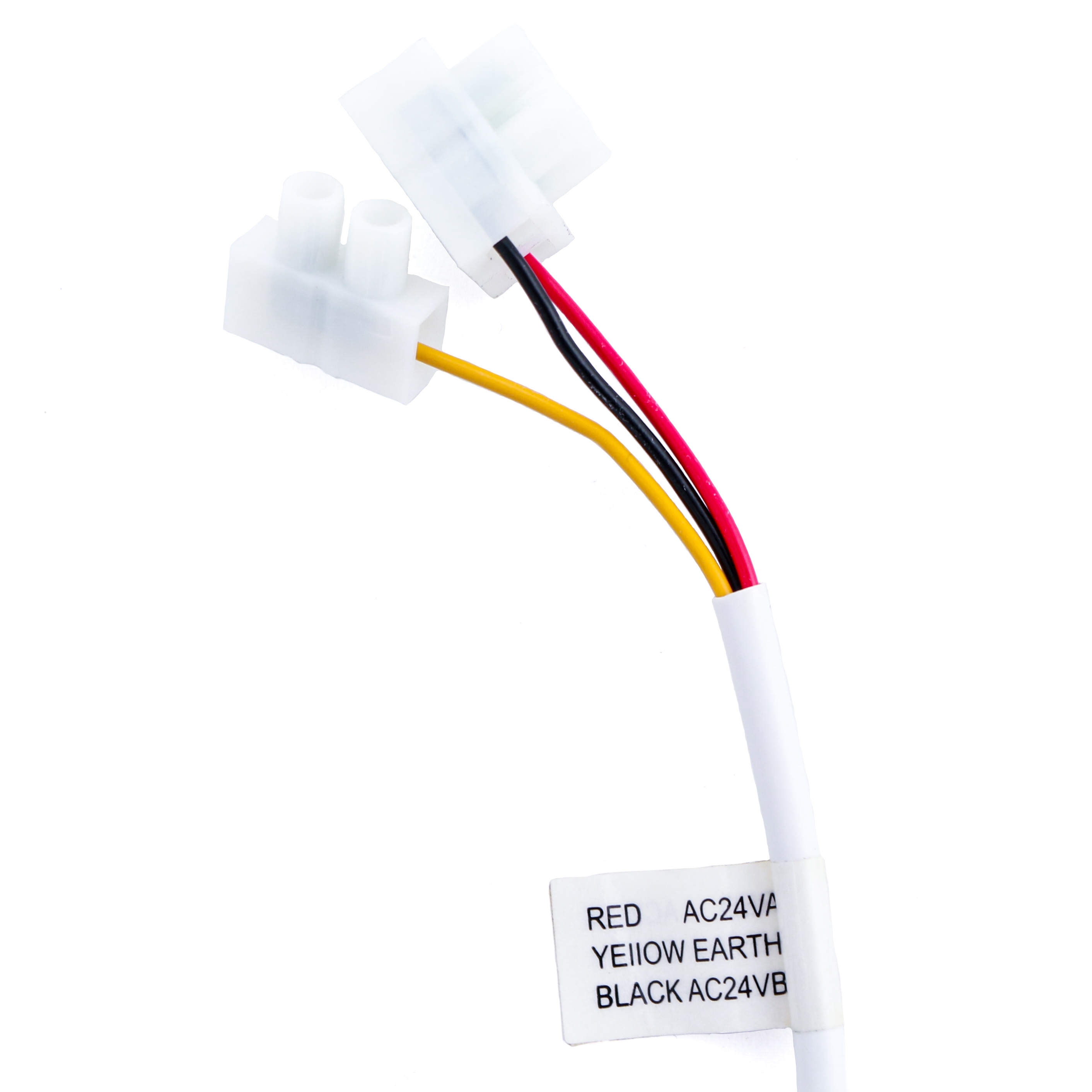

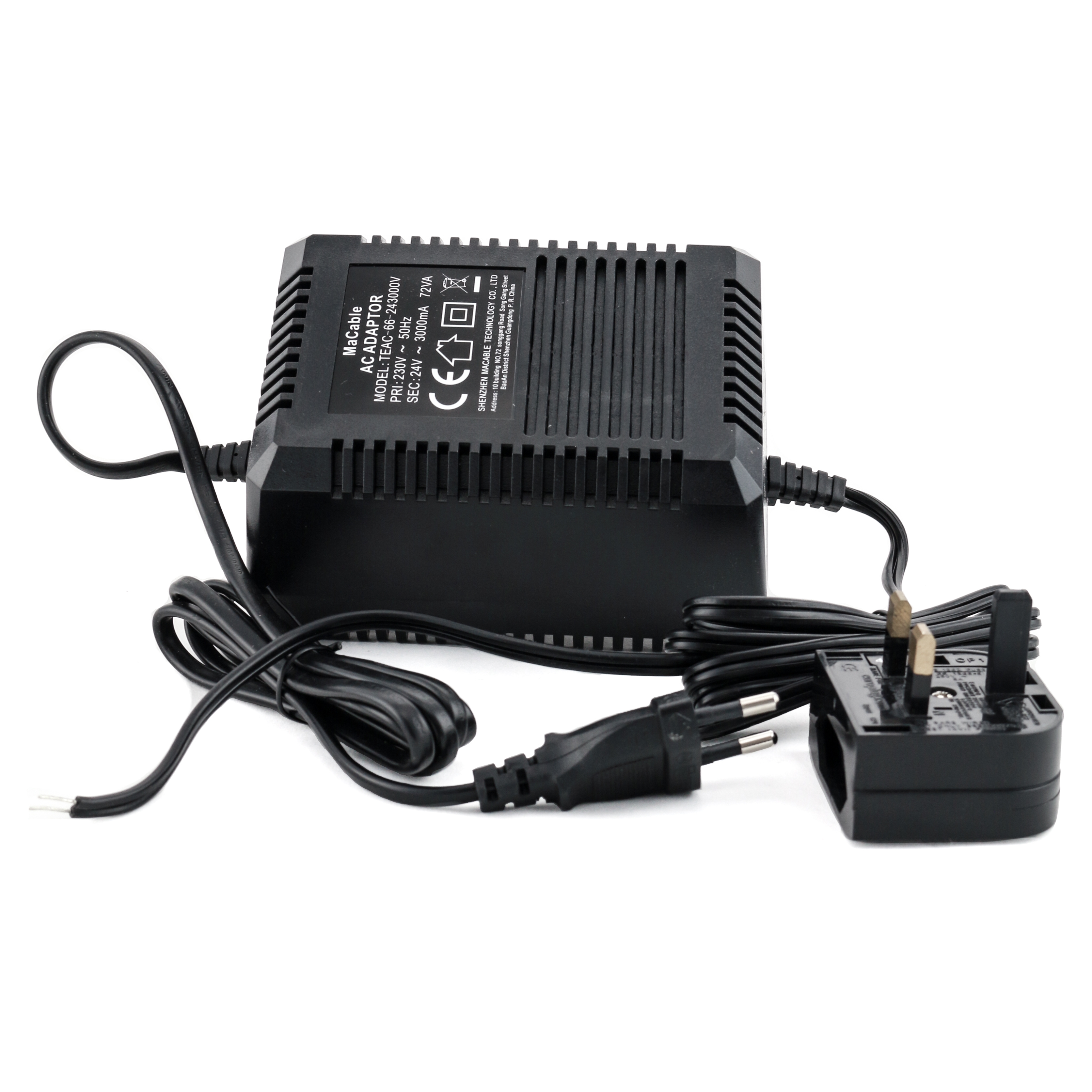

| Supply Volts | 24V AC |
| Lens Mount | optical zoom lens |
| Lens Focal Length | 4.3~129mm |
| Viewing Angle | 49.4° ~ 2.4° Horizontal Field of View |
| Aspect ratio | 4:3 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 200m |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 35W |
| Warranty | 2 Years |
| Launch Date | September 2017 |
| Video |
