Milesight UI-5D64-PCV 5MP Vandal Resistant Mini Bullet Camera
The Milesight UI-5D64-PCV is a 5MP vandal resistant mini bullet camera and one of the newest additions to the Milesight range.
Smart IR II Technology ~ with an IR anti reflection panel IR performance is greatly improved.
New Design ~ same high quality in a more compact style. Milesight have reduced the size of the mini bullet from 76 x 208mm to 64 x 160mm without compromising on any of the features.
IP67 & IK10 ~ supporting both IP67 weather resistance and IK10 vandal resistance adds to the camera's appeal.
Focal Length options:
- 2.8mm ~ 113° Horizontal Field of View
- 3.2mm ~ 98° Horizontal Field of View
- 3.6mm ~ 82° Horizontal Field of View
- 6mm ~ 52° Horizontal Field of View
Milesight User ManualMilesight Product BrochureMilesight Product Catalogue
Product Datasheets
Milesight UI-5D64-PCV 5MP Vandal Resistant Mini Bullet Camera Datasheet (1.22MB)
Wide Angle ~ with the option of a 2.8mm ultra wide angle lens this 5MP camera is able to provide a 113° field of view whilst still providing superior image quality.

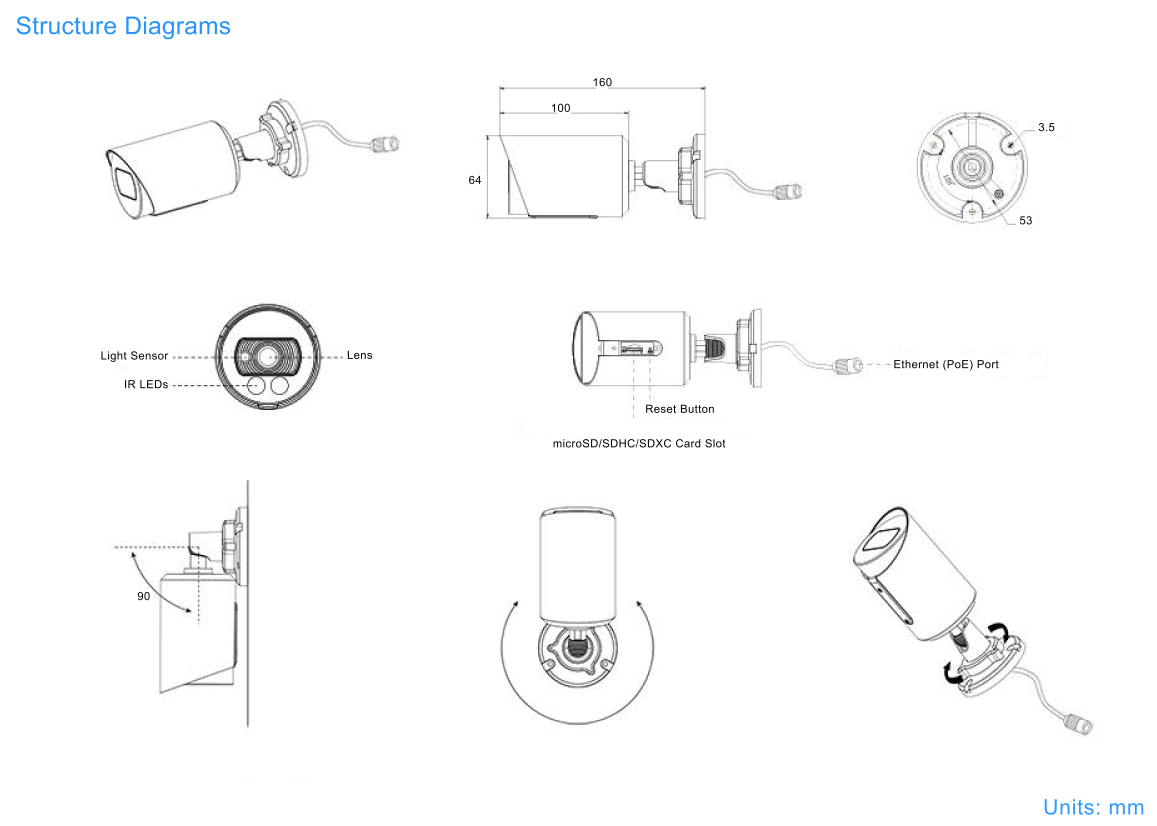

Unique Structure ~ user friendly design with an SD card slot, reset button, 3-axis adjustment and PoE port.
Equipped with Power over Ethernet this enables data and power to be carried over a single cable.
H.265+ compression reduces bandwidth by 70-80% meaning storage costs are minimised greatly.
ONVIF compatibility enables the use of this camera with third-party software NVRs etc.
MicroSD/SDHC/SDHC built-in for onboard storage UP TO 256gb.
IR range up to 30m.
Super WDR 140dB provides true colour represented images.
Video Content Analysis, featuring 8 detection modes.
| Weight | 450.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan CMOS |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1920 |
| Min. low-light lux | 0.005 |
| Supply Volts | 12V or PoE |
| Lens Mount | M12 mount |
| Aspect ratio | 4:3 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 30m |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 5.5W |
| Warranty | 3 Years |
| Launch Date | September 2018 |
| Video |
