Milesight UI-5D75-PCV 5MP Fixed Weather Resistant Mini Dome Camera
The Milesight UI-5D75-PCV is a 5 megapixel weather resistant mini dome camera and one of the newest additions to the Milesight family, the Mini Series 3.0.
Taking on Milesight's new style dome structure this camera brings a 2018 update to their previous mini dome models and also features the newest Sony sensors.
Smart IR II Technology ~ combining both High and Low beam LEDs and with an anti-reflection panel IR illumination is greatly improved.
3-Axis Mechanical Design ~ allows for fast and easy adjustment of the camera which enables users to position the camera precisely depending on the individual application.
Focal Length options:
- 2.8mm ~ 113° Horizontal Field of View
- 3.6mm ~ 82° Horizontal Field of View
Milesight User ManualMilesight Product BrochureMilesight Product Catalogue
Product Datasheets
Milesight UI-5D75-PCV 5MP Fixed Weather Resistant Mini Dome Camera Datasheet (1.97MB)

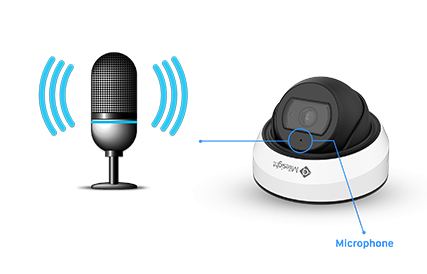

Advanced Built-in Microphone ~ features an advanced codec and a PTFE membrane to safeguard the microphone to ensure the reliability and performance of the microphone.
IP67 & IK10 Rated ~ having both IP67-rated weather resistance and IK10-rated vandal resistance is an impressive feature on a camera of this style. The casing is able to protect the camera from harsh outdoor weather conditions and vandal attempts thanks to the high quality materials used.
Two Installation Modes
PLEASE NOTE: This version comes with a lead.
Equipped with Power over Ethernet this enables data and power to be carried over a single cable.
H.265+ compression reduces bandwidth by 70-80% meaning storage costs are minimised greatly.
ONVIF compatibility enables the use of this camera with third-party software NVRs etc.
MicroSD/SDHC/SDHC built-in for onboard storage UP TO 256gb.
IR range up to 25m.
Built-in microphone; combines both audio and visual footage adding to the user experience.
Super WDR 140dB provides true colour represented images.
Video Content Analysis, featuring 8 detection modes.
| Weight | 410.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive Scan CMOS |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1920 |
| Min. low-light lux | 0.005 |
| Lens Mount | M12 mount |
| Aspect ratio | 4:3 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 25m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 4W |
| Warranty | 3 Years |
| Launch Date | September 2018 |
| Video |
