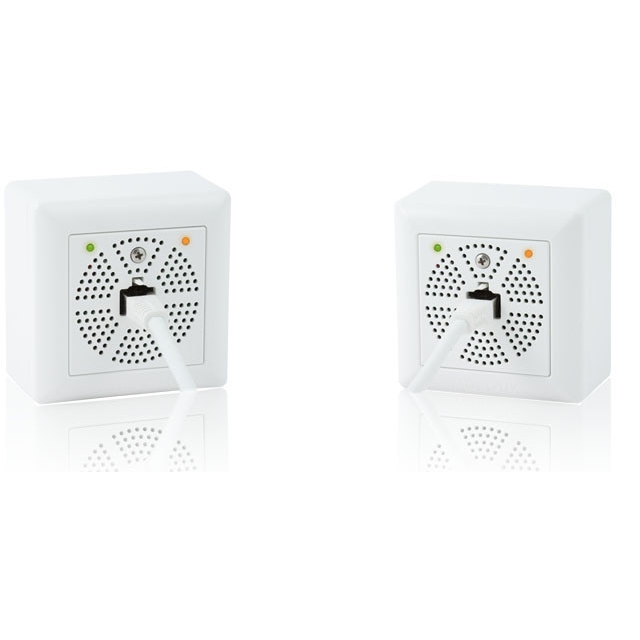

Mobotix MX-2Wireplus-Set-PW Mx2Wire PoE and Ethernet System

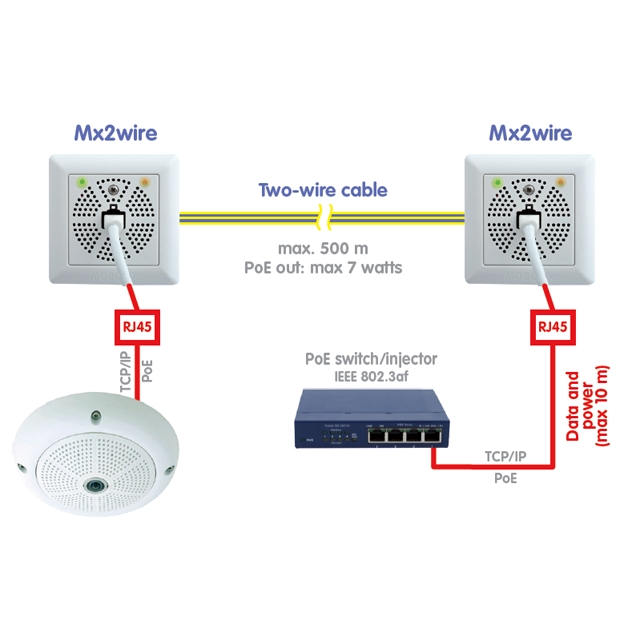

The new Mx2wire system allows an Ethernet network with PoE to be established up to a distance of 500 meters using two-wire cables. This allows an existing two-wire analog telephone cable to be used to connect a 10/100 MB Ethernet device at a data rate up to 40 Mbps.
With 500m of bell wire, approximately 15 Mbps data is transferred. The system requires an Mx2wire device at both ends of the cable, and when installed, it automatically configures itself as either the sender or receiver.

Key Benefits of Mx2Wire System
- Transfers both data and power according to the PoE standard - up to a distance of 500m
- Unlike a standard network installation cable, the Mx2wire uses a 56-bit encryption code (DES)
- Does not require a separate power input
- Operates by use of existing telephone, power or antenna cables, thus reducing the time and effort normally required for installing cable.
- Allows an existing two-wire cable to operate as a modern multimedia cable
- Connected devices have access to up to 7 watts via PoE
- Simple installation in standard sockets
- Two LEDs display the status of network connection and power supply
- Power supplied to Mx2wire over a standard PoE switch
