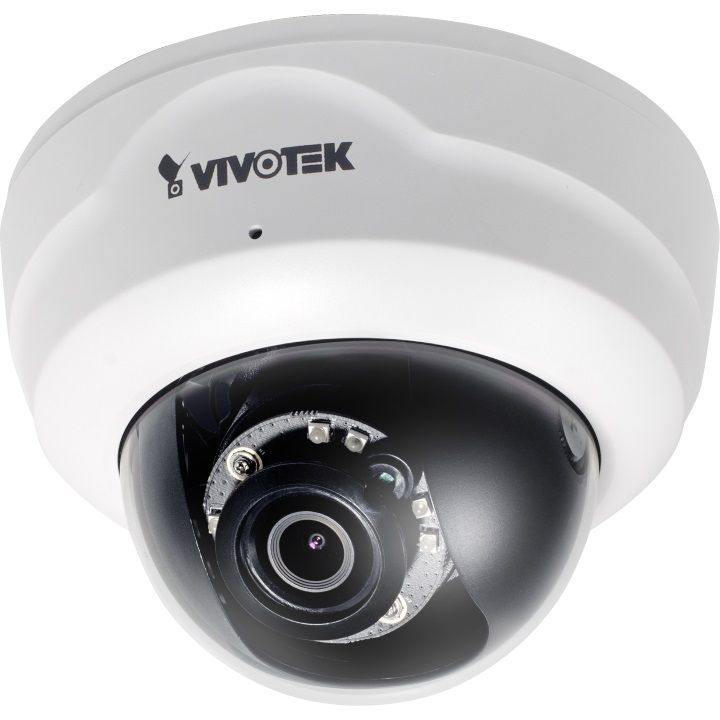

Vivotek FD8137H-F3 1MP Fixed Dome Network Camera
The FD8137H is now End of Life
May we recommend the FD816BA-HF2 or please feel free to browse our Vivotek Category to find an alternative.
The FD8137H-F3 is an indoor dome camera with a 3.6mm fixed lens and IR LEDS effective up to 15m. This camera is also user friendly with built in on board storage and compliant PoE.
To improve image quality, the FD8137H-F3 uses 3D Noise Reduction technology and Wide Dynamic Range.
Vivotek FD8137H-F3 User ManualVivotek FD8137H-F3 Installation GuideProduct BrochureSurveillance Handbook
Product Datasheets
Vivotek FD8137H-F3 1MP Fixed Dome Network Camera Datasheet (0.69MB)
- 1 megapixel CMOS sensor
- 25 fps at 1280 x 800
- Real-time H.264, MJPEG compression (Dual codec)
- Removable IR-cut filter for day and night function
- Built-in IR illuminators, effective up to 15 metres
- WDR Pro for unparalleled visibility in high contrast environments
- Built-in 802.3af compliant PoE
- Built-in microSD/SDHC/SDXC card slot for on-board storage
- Supports ONVIF standard t simplify integration and enhance interoperability
- 3D noise reduction for low light conditions
| Weight | 440.000000 |
|---|---|
| Image chip size | 1/3" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.264 & Motion JPEG |
| Audio | G.711/G.726 |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1280 X 800 |
| Min. low-light lux | 0.001 |
| Supply Volts | POE only |
| Lens Mount | fixed focus |
| Lens Focal Length | 3.6mm |
| Viewing Angle | 86° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 1 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| IR Range | Up to 15m |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Warranty | 3 Years |
| Launch Date | 2013 |
| Video | |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
