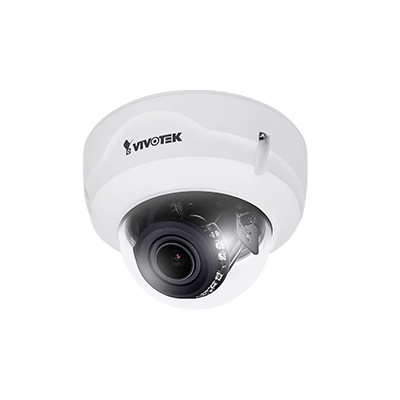

Vivotek FD8369A-V 2MP Fixed Dome Network Camera
The Vivotek FD8369A-V is a 2MP fixed dome network camera that comes with 1/2.9" progressive CMOS chip and a lens focal length of 2.8mm.
With a working temperature of -40°C - 50°C, a weatherproof housing rating of IP66 and vandal-proof rating of IK10, this can be for either indoor or outdoor use,
This camera has H.264 & MJPEG video compression and comes with a built in memory card slot which supports MicroSD/SDHC/SDXC allowing up to 265GB storage. It also has Smart Stream II, which provides users with a saving in bandwidth and storage usage.
The FD8369A-V can record in complete darkness up to 30m due to built-in IR illuminators and supreme night visibility (SNV).
It is powered by PoE with a maximum power consumption of 10.5W.
Quick Installation Guide User Manual
Product Datasheets
Vivotek FD8369A-V 2MP Fixed Dome Network Camera Datasheet (0.54MB)
- Weather-proof IP66-rated and Vandal-proof IK10-rated housing.
- SNV (Supreme Night Visibility) for Low Light Conditions.
- Built-in IR Illuminators, Effective up to 30 Meters.
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability.
- Real-time H.264, MJPEG Compression (Dual Codec).
- Built-in 802.3af Compliant PoE.
- 3D Noise Reduction.
- Removable IR-cut Filter for Day & Night Function.
- Smart Stream II to Optimize Bandwidth Efficiency.
Pack Contents
- Quick installation guide.
- Alignment sticker.
- Screw pack.
| Weight | 600.000000 |
|---|---|
| Image chip size | 1/2.9" |
| Image chip type | Progressive CMOS |
| Image Compression | MJPEG & H.264 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 0 (0.44-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Supply Volts | POE only |
| Lens Mount | fixed focus |
| Lens Focal Length | 2.8mm |
| Viewing Angle | Horizontal Field of View: 114°, Vertical Field of View: 61°, Diagonal Field of View: 132°. |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| IR Range | Up to 30m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 10.5W |
| Warranty | 2 Years |
| Launch Date | March 2019 |
