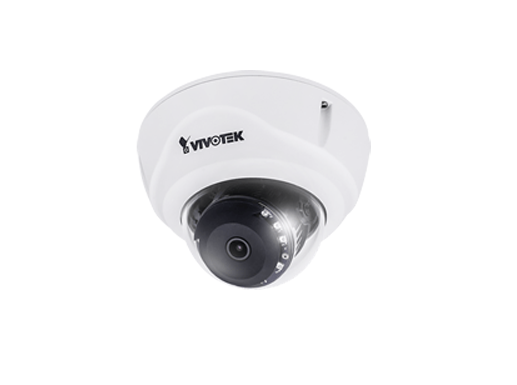

Vivotek FD836BA-EHVF2 2MP Fixed Dome Network Camera
The Vivotek FD836BA-EHVF2 is a 2MP fixed dome camera with a 1/2.7" progressive CMOS chip and a focal length of 2.8mm.
With built-in IR illuminators that are effective up to 30m and supreme night visibility (SNV) for low light conditions, this camera can record in complete darkness.
It also has weather-proof housing of IP66 and vandal-proof metal housing of IK10, with a working temperature of -50°C - 50°C, which allows the user to have it for either indoor or outdoor use.
The FD836BA-EHVF2 has H.264 & MJPEG with the added bonus of a built in memory card slot that supports MicroSD/SDHC/SDXC, giving up to 265GB of storage.
Powered by a 12V DC power supply or via PoE with a maximum use of of 25W.
Quick Installation Guide
User Manual
Product Datasheets
Vivotek FD836BA-EHVF2 2MP Fixed Dome Network Camera Datasheet (0.48MB)
- 30 fps @ 1920 x 1080.
- Built-in IR Illuminators, Effective up to 30 Meters.
- SNV (Supreme Night Visibility) for Low Light Conditions.
- Two-way Audio.
- Video Rotation for Corridor View.
- Removable IR-cut Filter for Day & Night Function.
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments.
- Extreme Weather Support with PoE.
- 3D Noise Reduction.
Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment sticker.
- Desiccant bag.
- Screw pack.
| Weight | 920.000000 |
|---|---|
| Image chip size | 1/2.7" |
| Image chip type | Progressive CMOS |
| Image Compression | MJPEG & H.264 |
| Audio | Audio input/output (full duplex) |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 4 (12.95 - 25.50) |
| Max. Resolution | 1920 X 1080 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | fixed focus |
| Lens Focal Length | 2.8mm |
| Viewing Angle | Horizontal Field of View: 122°, Vertical Field of View: 66°, Diagonal Field of View: 142°. |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| IR Range | Up to 30m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 25W |
| Warranty | 2 Years |
| Launch Date | March 2019 |
