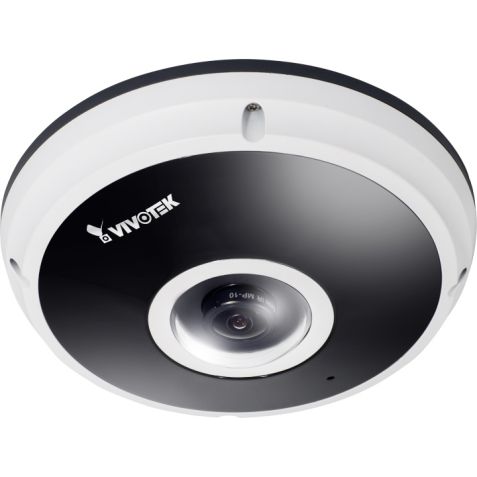

Vivotek FE8181 5 Megapixel Fisheye Network Camera
The FE8181 is a 5MP fisheye camera from Vivotek with an ouput of 30 fps at 1080p full HD. The fisheye lens gives an 180° Panoramic View and 360° Surround View.
This camera benefits from built-in IR illuminators, meaning it can see up to 10m in the dark.
Vivotek FE8181 User Manual Vivotek FE8181 Installation GuideSurveillance Handbook
Product Datasheets
Vivotek FE8181 5 Megapixel Fisheye Network Camera Datasheet (0.78MB)
- 30fps @ 1080p Full HD
- f 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Panoramic PTZ Function with Speed Dome Camera for Monitoring Detailed Regional View
- ePTZ for Data Efficiency
- Built-in 802.3at Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Pixel Calculator for Image Clarity Measurement
- Support Local Dewarping
Pack contents:
- FE8181 Main Unit x1
- Screws, anchors, cable ties
- Power & I/O Cables
- Quick Installation Guide
- Warranty Card
- Software CD
| Weight | 589.000000 |
|---|---|
| Image chip size | 1/2.5" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | MJPEG & MPEG-4 & H.264 |
| Audio | G.711/G.726 |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 4 (12.95 - 25.50) |
| Max. Resolution | 1920 X 1920 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | 12V DC or PoE |
| Lens Mount | fixed focus |
| Lens Focal Length | 1.5mm |
| Viewing Angle | 180º Horizontal Field of View |
| Aspect ratio | N/A |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| IR Range | Up to 10m |
| Max. Images per second | 25 |
| PSU included | No |
| Power Consumption | max. 23W |
| Warranty | 3 Years |
| Launch Date | September 2014 |
| Video | |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
