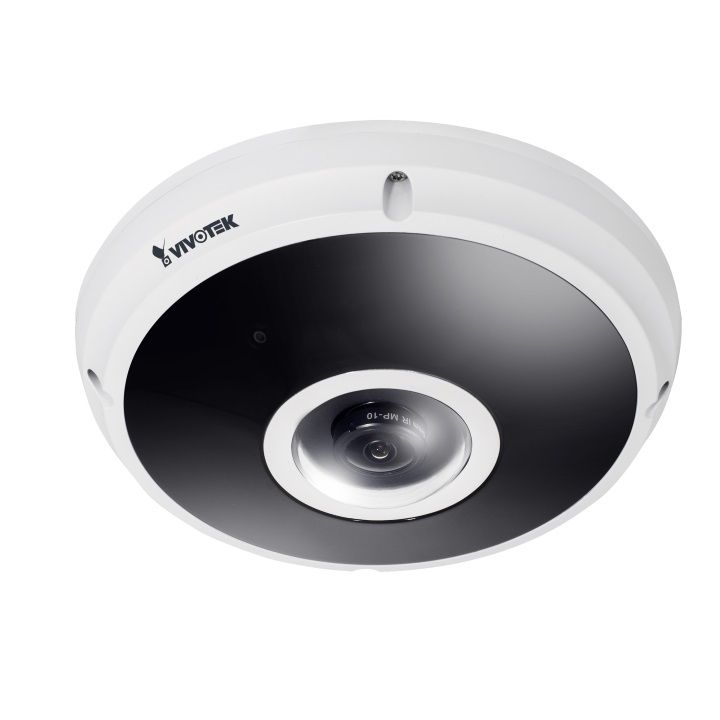

Vivotek FE9382-EHV 5MP Outdoor Fisheye Camera
The Vivotek FE9382-EHV has a vandal-proof IK10-rated and weather-proof IP66-rated housing making it suitable for use both indoors or outdoors in a wide range of applications such as airports, shopping centres and retail shops.
User Manual
Quick Installation Guide
Product Datasheets
Vivotek FE9382-EHV 5MP Outdoor Fisheye Camera Datasheet (0.20MB)
- 5-Megapixel CMOS Sensor
- 30 fps @ 1920x1920
- 1.47 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- Built-in IR illuminators, effective up to 20 meters
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream II to Optimize Bandwidth Efficiency
- EN50155 Compliance for Professional Mobile Surveillance
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- ePTZ for Data Efficiency
- Built-in 802.3at Compliant PoE
- Support Client Side Dewarping
- Pixel Calculator for Image Clarity Measurement
- Defog
| Weight | 762.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | Progressive CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Two way, built in microphone |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 4 (12.95 - 25.50) |
| Max. Resolution | 1920 X 1920 |
| Min. low-light lux | 0.001 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | fixed focus |
| Lens Focal Length | 1.47mm |
| Viewing Angle | 180° Horizontal Field of View |
| Aspect ratio | N/A |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 20m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 20W |
| Warranty | 3 Years |
| Launch Date | Summer 2017 |
