Vivotek IP8336W Fixed Network Camera
The IP8336W is now End of Life
Please feel free to browse our Vivotek Category to find an alternative.

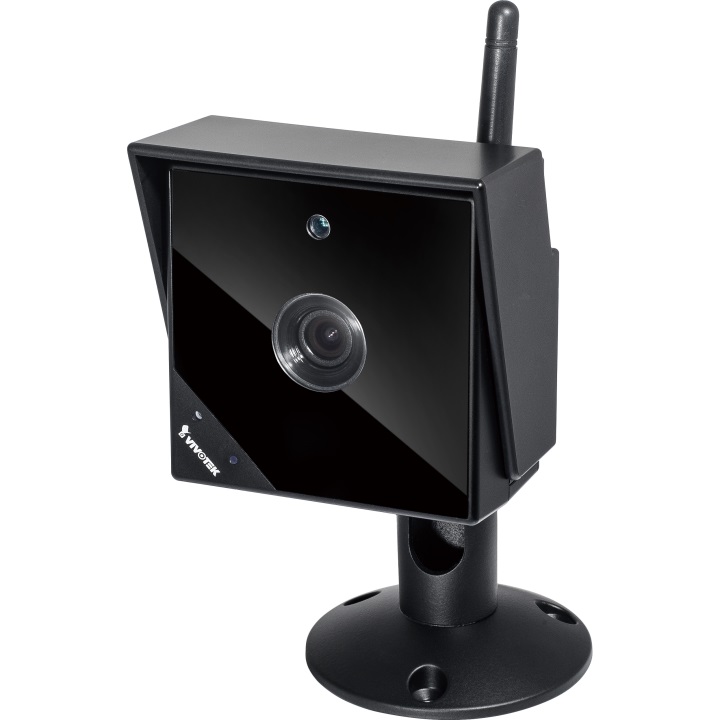

The IP8336W is a cube camera that can be used indoors or outdoors with its IP66 rated weatherproof housing.
This camera has a 1MP sensor and a viewing resolution of 1280 x 800 at 30 fps. The image is further improved by the use of an IR-cut filter and 5M IR illuminators.
This product is subject to a 14-day lead-time to fetch it from manufacturer's Taiwan stock/ there is no UK stock of this model
Vivotek IP8336W User ManualVivotek IP8336W Installation GuideProduct BrochureSurveillance Handbook
Product Datasheets
- 1-megapixel CMOS Sensor
- Compact, Elegant Design
- Removable IR-cut Filter for Day and Night Function
- Built-in IR Illuminators, Effective up to 5 Meters
- Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
- Weather-proof IP66-rated Housing
- Built-in IEEE 802.11b/g/n WLAN
- Wi-Fi Protected Setup (WPS) for Easy and Secure Wireless Network Connection
- Built-in MicroSD/SDHC Card Slot for On-board Storage
| Weight | 505.000000 |
|---|---|
| Image chip size | 1/4" |
| Image chip type | CMOS |
| Image Compression | MJPEG & MPEG-4 & H.264 |
| Audio | G.711 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | No |
| Max. Resolution | 1280 X 800 |
| Min. low-light lux | 0.001 |
| Supply Volts | 12V DC |
| Lens Mount | fixed focus |
| Lens Focal Length | 3.6mm |
| Viewing Angle | Horizontal: 56° |
| Aspect ratio | 4:3 |
| Megapixels | 1 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | N/A |
| Max. Images per second | 30 |
| PSU included | N/A |
| ONVIF Compatible | Yes |
| Warranty | 1 Year |
| Launch Date | August 2013 |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
