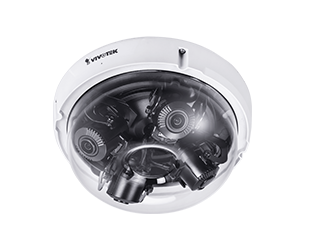

Vivotek MA9321-EHTV 20MP Multi-Sensor Adjustable Dome Network Camera
The Vivotek MA9321-EHTV is a 20MP multi-sensor dome camera with a maximum resolution of 2688x1920 (5MP) x4, and a 1/2.7" progressive CMOS chip.
Armed with 4 independent 5MP, adjustable sensors, this camera reduces the number of cameras needed, saving time on installing and costs. Each sensor has a remote focal length of 3.7 -7.7mm and with the use of 4 sensors, it provides 360° coverage.
Supported by supreme night visibility (SNV) and wide dynamic range (WDR) pro, it gives a high quality, detailed image in extremely dark and light environments.
The MA9321-EHTV comes with IP66 weather-proof housing, IK10 vandal-resistant housing and a wide working temperature of -40°C - 50°C for extreme weather conditions, with protection from the outdoor environments it makes it perfect for outdoor use.
This camera has smart stream II and H.265 compression, allowing users a saving on storage and bandwidth usage. This then works well with the built-in Micro SD/SDHC/SDXC card slot, providing extra storage space.
It comes with a built-in microphone and is powered by either PoE or by a 24V AC power supply, with a maximum power consumption of 24W.
Please note, this camera does not come with a power supply.
Vivotek Product Catalogue Accessories Manual Quick Installation Guide User Manual
Product Datasheets
Vivotek MA9321-EHTV 20MP Multi-Sensor Adjustable Dome Network Camera Datasheet (0.53MB)
- Smart Stream III to Optimize Bandwidth Efficiency.
- Built-in Microphone.
- H.265 Compression Technology.
- 4 Independent Sensors, Adjustable Views
- Remote Focus.
- WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments.
- SNV (Supreme Night Visibility) for Low Light Conditions.
- -40°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions.
- 30 fps (2688x1920) per Sensor.
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing.
- Removable IR-cut Filter for Day & Night Function.
Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment Sticker.
- Desiccant bag.
- Screw Driver.
- Screws Pack.
Dimensions:
| Weight | 1572.000000 |
|---|---|
| Image chip size | 1/2.7" |
| Image chip type | Progressive CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Two way, full duplex |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 4 (12.95 - 25.50) |
| Max. Resolution | 2560 X 1920 |
| Supply Volts | 24V AC, PoE |
| Lens Mount | vari-focal lens |
| Viewing Angle | Horizontal Field of View: 40.2° to 88.8°, Vertical Field of View: 28.6° to 59.8°, Diagonal Field of View: 49.6° to 116° |
| Aspect ratio | N/A |
| Megapixels | 20MP |
| Supplied with lens | Yes |
| PSU included | No |
| Power Consumption | max 24W |
| Warranty | 3 Years |
| Launch Date | Summer 2019 |
