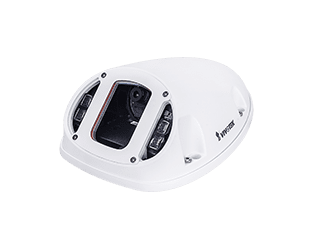

Vivotek MD8564-EH 2MP Mobile Dome Network Camera
The Vivotek MD8564-EH is a 2MP fixed focal mobile dome camera with 1/2.7" progressive CMOS chip and a focal length of 6mm.
Due to the design of the camera being specifically to be mounted onto the exterior of a vehicle, it allows for great features such as fast AE for quick adaptation to light changes and wide dynamic range (WDR) pro for visibility in high contrast environments.
The MD8564-EH comes with smart stream III, which reduces the amount of bandwidth and storage consumed by up to 50% although still giving high standards of image quality. It also comes with H.264 & MJPEG, and an on-board memory card slot that supports MicroSD/SDHC/SDXC and gives extra storage space.
With a weather-proof housing rate of IP6K9K/IP68 and a vandal-proof housing rate of IK10 the camera is protected from harsh conditions. It also has a working temperature of -40°C ~ 70°C and a de-icing function wither internal heating glass making it suitable for any climate.
Armed with built-in IR illuminators, the MD8564-EH is able to provide a great quality image in complete darkness for up to 30m. It is also able to provide a reliable recording during all kinds of movement that the vehicle may make, whether that be vibrations, shock or electromagnetic interference.
This camera is powered by PoE with a maximum power consumption of 10W (IR on), 5.7W (IR off). The heater is powered by a 24V DC power supply with a maximum power consumption of 50W.
Quick Installation Guide User Manual
Product Datasheets
Vivotek MD8564-EH 2MP Mobile Dome Network Camera Datasheet (0.33MB)
- Built-in IR Illuminators, Effective up to 30 Meters.
- Weather-proof IP6K9K/IP68-rated, Vandal-proof IK10+ and NEMA 4X-rated Housing.
- Smart Stream II to Optimize Bandwidth Efficiency.
- 30 fps @ 1920x1080.
- M12 Connector for PoE/Network.
- Fast AE for Quick Adaptation to Light Changes.
- WDR Pro for Unparalleled Visibility in High Contrast Environments.
- -40°C ~ 70°C Wide Temperature Range for Extreme Weather Conditions.
- EN50155 TX Compliance for Professional Mobile Surveillance.
Pack Contents
- Quick installation guide.
- Warranty card.
- Alignment Sticker.
- Screw driver.
- Accessories bag.
- Software CD.
| Weight | 1370.000000 |
|---|---|
| Image chip size | 1/2.7" |
| Image chip type | Progressive CMOS |
| Image Compression | MJPEG & H.264 |
| Audio | Two-way |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP69K |
| POE built-in | Yes |
| POE Class | Class 0 (0.44-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Supply Volts | POE only |
| Lens Mount | fixed focus |
| Lens Focal Length | 6mm |
| Viewing Angle | Horizontal Field of View: 57°, Vertical Field of View: 30°, Vertical Field of View: 65° |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| IR Range | Up to 30m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Warranty | 3 Years |
| Launch Date | March 2019 |
