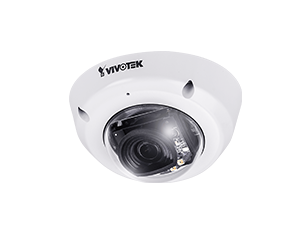

Vivotek MD8565-N 2MP Mobile Dome Network Camera
The Vivotek MD8565-N is a 2MP fixed focal bullet dome camera with 1/2.9" progressive CMOS chip and a focal length of 2.8mm.
With IP66 weather-proof housing and IK10 vandal-resistant housing the camera is protected from harsh conditions. It also has a working temperature of -25°C - 55°C making it perfect for outdoor use.
Armed with built-in 940nm invisible IR illuminations and fast AE for quick adaptation to light changes, the MD8565-N is able to provide great image quality in complete darkness for up to 10m. It is also able to provide a reliable recording during all kinds of movement that the vehicle may make, whether that be vibrations, shock or electromagnetic interference.
Supported by smart stream III, which reduces the amount of bandwidth and storage that is consumed by up to 50%, although still giving high standards of image quality. It also comes with H.264 & MJPEG, and an on-board memory card slot that supports MicroSD/SDHC/SDXC and gives up to 2.65GB of storage space.
Powered by either PoE or by 7.5-48V DC power supply, using a maximum power consumption of 5.5W.
Quick Installation Guide User Manual
Product Datasheets
Vivotek MD8565-N 2MP Mobile Dome Network Camera Datasheet (0.40MB)
- Smart Stream II to Optimize Bandwidth Efficiency.
- Weather-proof IP66-, Vandal-proof IK10- and NEMA 4X-rated Housing.
- M12 Connector for PoE/Network.
- Smart IR Technology to Avoid Overexposure.
- 30 fps @ 1920x1080.
- EN50155 T1 Compliance for Professional Mobile Surveillance.
- Fast AE for Quick Adaptation to Light Changes.
Pack Contents
- Quick installation guide.
- Screw driver.
- Alignment Sticker.
| Weight | 400.000000 |
|---|---|
| Image chip size | 1/2.9" |
| Image chip type | Progressive CMOS |
| Image Compression | MJPEG & H.264 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 0 (0.44-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Lens Mount | fixed focus |
| Lens Focal Length | 2.8mm |
| Viewing Angle | Horizontal Field of View: 113°, Vertical Field of View: 63°, Diagonal Field of View: 136°. |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 5.5W |
| Warranty | 3 Years |
| Launch Date | March 2019 |
