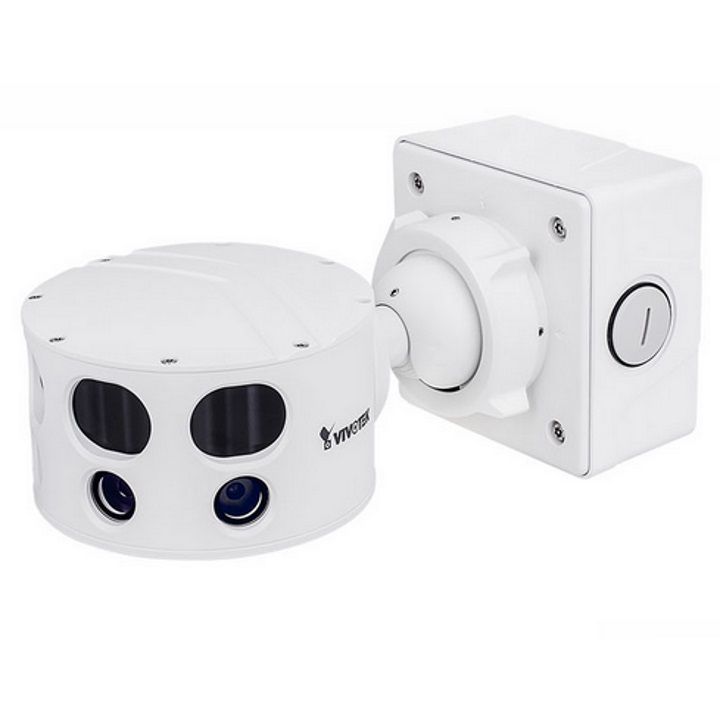

Vivotek MS8391-EV 12MP Multiple Sensor Network Camera
With the use of 3D Noise Reduction technology and Smart Stream technology to optimize the quality of images and the usage of bandwidth, users are always receiving the clearest image possible. This camera also uses smart IR technology to provide a clear image up to 30m in the dark.
User Manual
Quick Installation Guide
Product Datasheets
Vivotek MS8391-EV 12MP Multiple Sensor Network Camera Datasheet (0.85MB)
- 180° Panoramic View
- 7 fps @ 7552x1416
- Video Alignment to Have a Seamless Picture

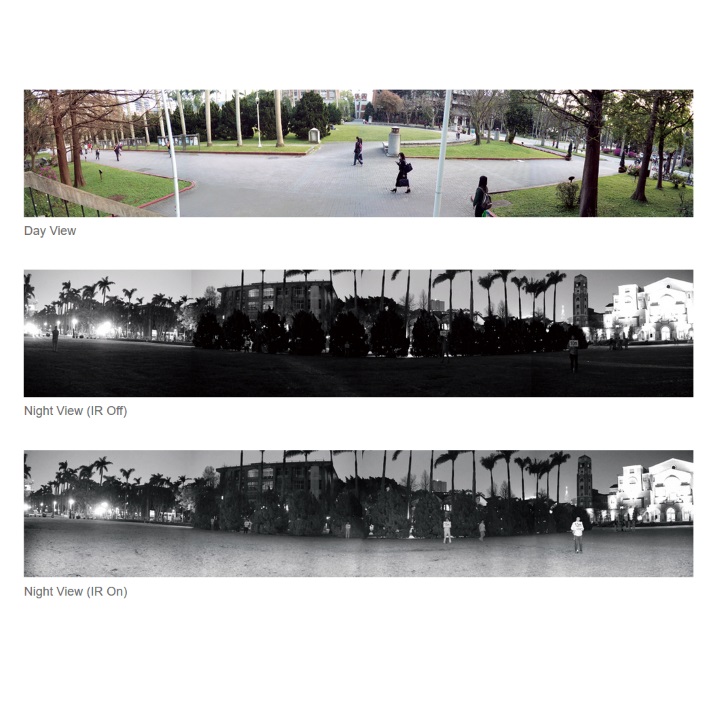

- Smart IR Technology to Avoid Overexposure
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart Stream II to Optimize Bandwidth Efficiency
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions
| Weight | 2800.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | Progressive CMOS |
| Image Compression | H.264 & Motion JPEG |
| Audio | Audio input/output (full duplex) |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 4 (12.95 - 25.50) |
| Max. Resolution | 7552 X 1416 |
| Min. low-light lux | 0.01 |
| Lens Mount | fixed focus |

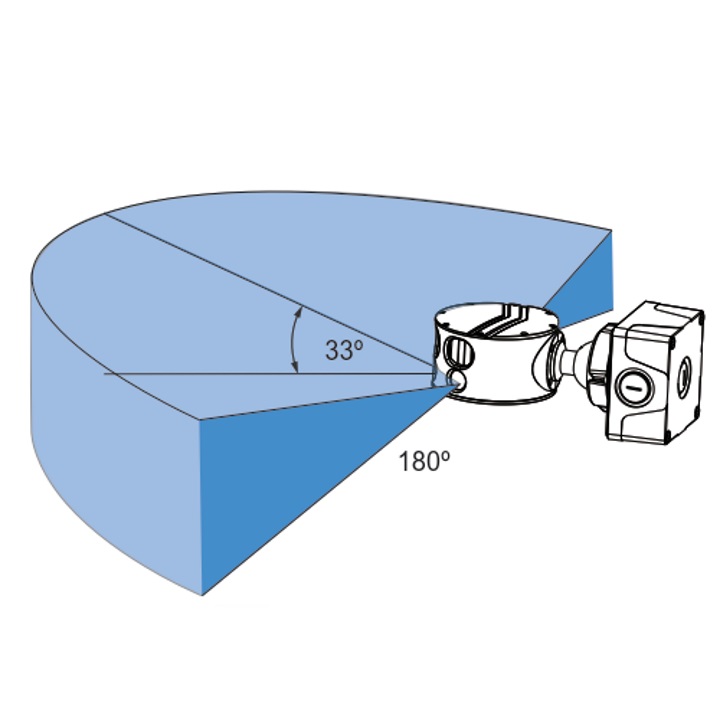

| Viewing Angle | 180° Panoramic View |
| Aspect ratio | N/A |
| Megapixels | 12 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| IR Range | Up to 30m |
| Max. Images per second | 7 |
| PSU included | No |
| ONVIF Compatible | No |
| Warranty | 1 Year |
| Launch Date | Summer 2016 |
| Video | |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
