Vivotek ND8401 16 Channel Network Video Recorder
RAID 0/1/5/10 is supported with four HDDs, with an external eSATA port for additional expansion potential. The ND8401 supports VIVOTEK network cameras (7000 & 8000 Series), panoramic PTZ fisheye models (SF Series - are not included) and smart models (MD7560X - is not included).
Vivotek ND8401 User Manual
Vivotek ND8401 Installation Guide
Product Datasheets
Vivotek ND8401 16 Channel Network Video Recorder Datasheet (0.79MB)
- VAST Inside (LiveClient/Playback)
- 16-CH Live View & 1-CH Playback
- H.264, MPEG-4 and MJPEG
- Multiple Recording Types & Event Trigger Sources
- Multiple Video Search Modes
- E-map
- Supported by VAST Central Management Software
- Full Integration with VIVOTEK Network Cameras
- VIVOTEK iViewer Support (iOS/Android)
Pack contents:
- User manual
- Quick installation guide
- Installation wizard 2
- LiveClient
- Playback
- Warranty card
- Power cord
| Weight | 5240.000000 |
|---|---|
| Number of Channels | 16 |
| Number of Bays | 4 |
| Audio Input | 1-ch |
| Audio Ouput | 1-ch |
| Front USB | 2 x USB 2.0 |
| Rear USB | 2 x USB 2.0 2 x USB 3.0 |
| Fan | Yes |
| RAID | Yes |
| eSATA | 1 |
| RS232 | Yes |
| Maximum Memory Capacity | 16TB |
| HDD Hot Swap | Yes |

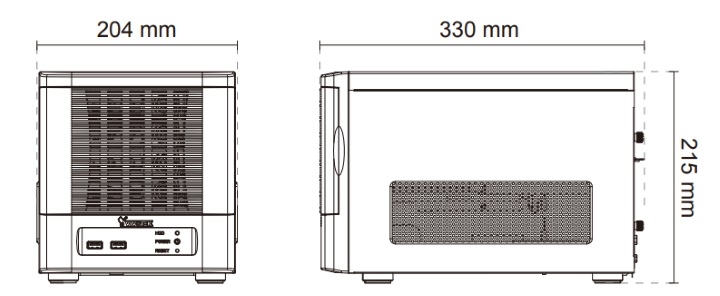

| Dimensions | 204 x 330 x 215mm |
| Warranty | 2 Years |
| Launch Date | 2015 |
