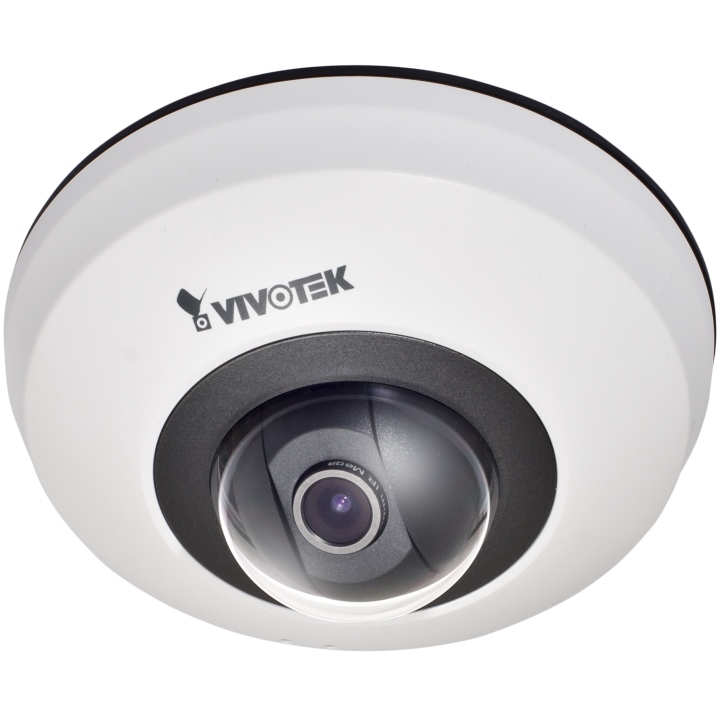

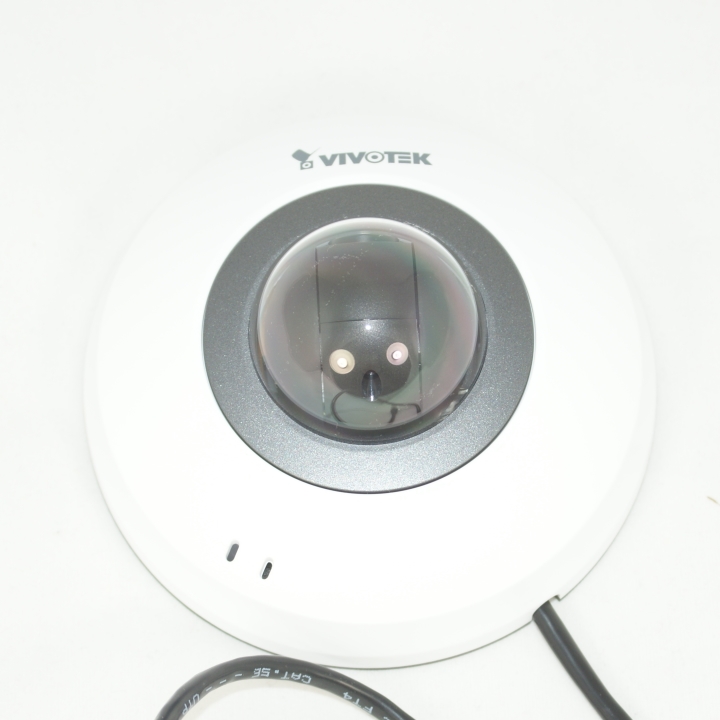

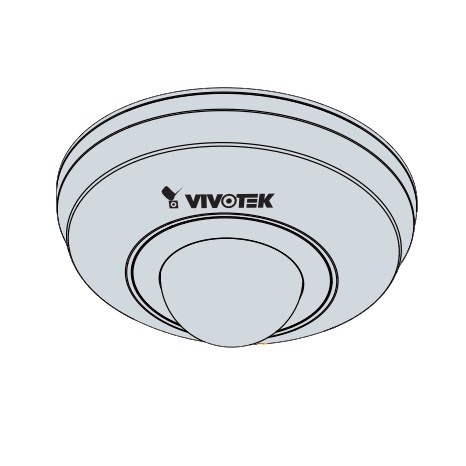

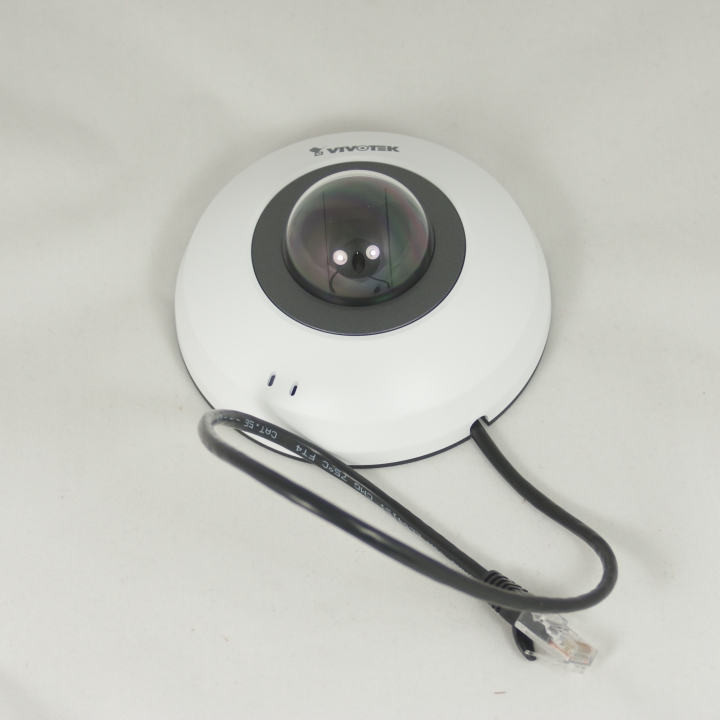

Vivotek PD8136 Pan/Tilt Dome Network Camera
The PD8136 is now End of Life
Please feel free to browse our Vivotek Category to find an alternative.
The PD8136 is a dome camera with the ability to pan 360° and tilt 80°. It is equipped with a 1MP sensor and has a 1280 x 800 resolution with a 30 fps output.
This product is subject to a 14-day lead-time to fetch it from manufacturer's Taiwan stock/ there is no UK stock of this model

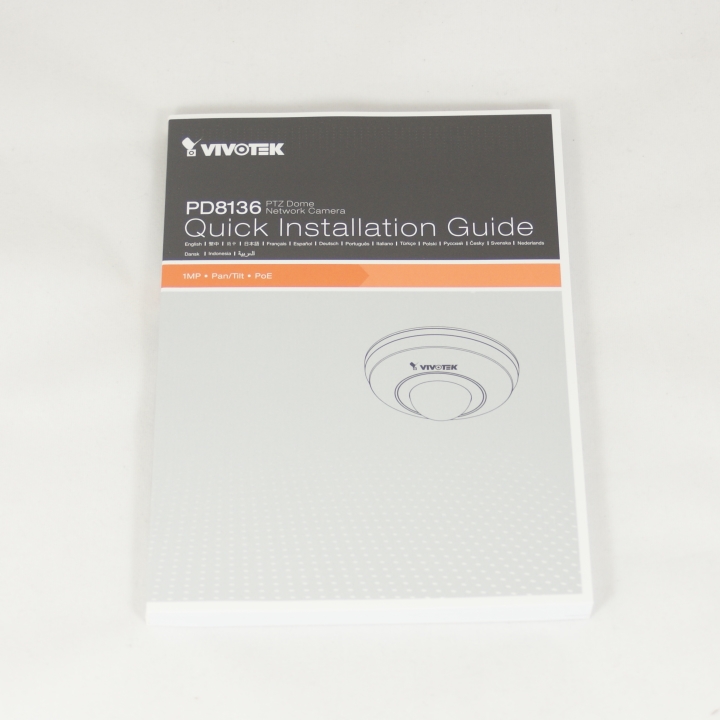

Vivotek PD8136 User ManualVivotek PD8136 Installation GuideProduct BrochureSurveillance Handbook
Product Datasheets
Vivotek PD8136 Pan/Tilt Dome Network Camera Datasheet (0.74MB)
- 1 megapixel CMOS sensor
- 360° pan & 80° tilt for wide area monitoring
- Compact, elegant design
- Real-time H.264, MPEG-4 and MJPEG compression (Triple codec)
- 30fps @ 1280x800

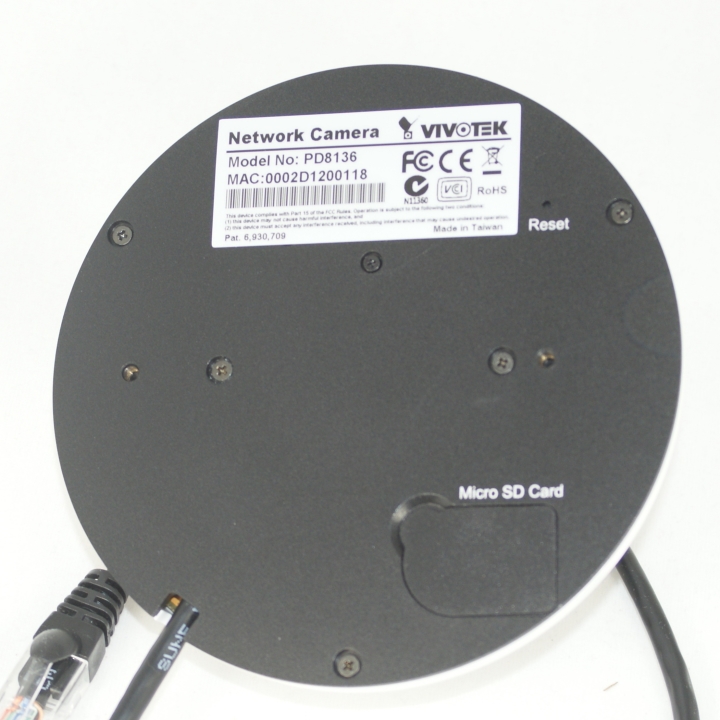

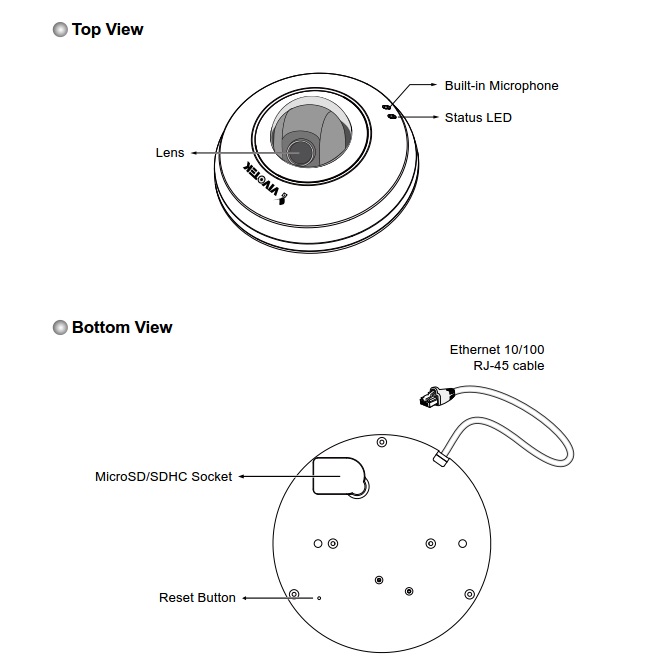

- Built-in MicroSD/SDHC card slot for on-board storage
- Built-in IEEE802.3af compliant PoE
| Weight | 180.000000 |
|---|---|
| Image chip size | 1/4" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | MJPEG & MPEG-4 & H.264 |
| Audio | G.711 |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | Colour |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1280 X 800 |
| Min. low-light lux | 0.47 |
| Supply Volts | POE only |
| Lens Mount | fixed focus |
| Lens Focal Length | 3.6mm |
| Viewing Angle | 56° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 1 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | N/A |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Warranty | 2 Years |
| Launch Date | Winter 2012 |
| Video | |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
