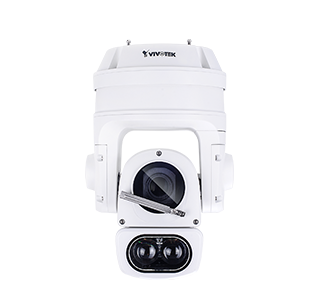

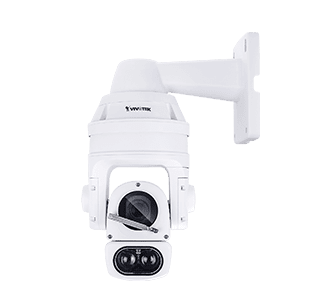

Vivotek SD9365-EHL 2MP Speed Dome Network Camera
The Vivotek SD9365-EHL is a 2MP speed dome auto focus camera with a wiper, 1/3" progressive CMOS chip and a focal length of 4.7 ~ 94mm.
Combining 1080p full HD resolution features such as smart IR II (vari-angle IR), 20x optical zoom, H.265, wide dynamic range (WDR) pro, and IR illuminators, this camera is able to get a detailed, high quality image in very dark and very light environments.
The SD9365-EHL has IP66 weather-proof housing, IK10 vandal-resistant housing and a wide working temperature range of -50°C ~ 55°C, which is supported by a built-in silicone wiper, making cleaning easier as it removes water and dirt from the lens surface. Providing protection from outdoor environments, this camera is perfect for outdoor use.
With the use of smart stream II and H.265, H.264 and MJPEG compression (triple codec), users get a large saving on storage and bandwidth usage. It then works with the built-in micro SD/SDHC/SDXC card slot, giving extra storage.
Powered by a 24V DC/AC power supply using a maximum power consumption of 63W (Heater on), 45W (Heater off) or by 95W PoH/PoE, using a maximum power consumption of 70W (Heater on), 51W (Heater off).
Please note, this camera does not come with a power supply.
Vivotek Product Catalogue Vivotek Speed Dome Camera Flyer Quick Installation Guide User Manual
Product Datasheets
Vivotek SD9365-EHL 2MP Speed Dome Network Camera Datasheet (0.84MB)
- Easy Cleaning with Built-in Wiper.
- 150M IR with Smart IR II (Vari-Angle IR).
- Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated Housing.
- 20x Zoom Lens.
- Smart Stream II to Optimize Bandwidth Efficiency.
- Real-time H.265, H.264 and MJPEG Compression (Triple Codec).
- EIS.
- WDR Pro for Unparalleled Visibility in High Contrast Environments.
- -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions (AC 24V/ PoH)
Pack contents:
- Wall mount bracket.
- I/O cable.
- Screws.
- Waterproof connectors.
- Terminal blocks.
- Quick installation guide.
- Warranty card.
- Alignment sticker.
- Ground wire.
- T25 stardriver.
- Software CD.
- Desiccant bags.
| Weight | 5700.000000 |
|---|---|
| Image chip size | 1/3" |
| Image chip type | Progressive CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Two-way |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| Max. Resolution | 1920 X 1080 |
| Supply Volts | 24V AC/DC |
| Lens Mount | optical zoom lens |
| Lens Focal Length | 4.7~94mm |
| Viewing Angle | Horizontal Field of View: 3° to 55°, Vertical Field of View: 2° to 33°, Diagonal Field of View: 3° to 63°. |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | DC Iris |
| IR Range | Up to 150m |
| PSU included | No |
| ONVIF Compatible | Yes |
| Warranty | 3 Years |
| Launch Date | March 2019 |
