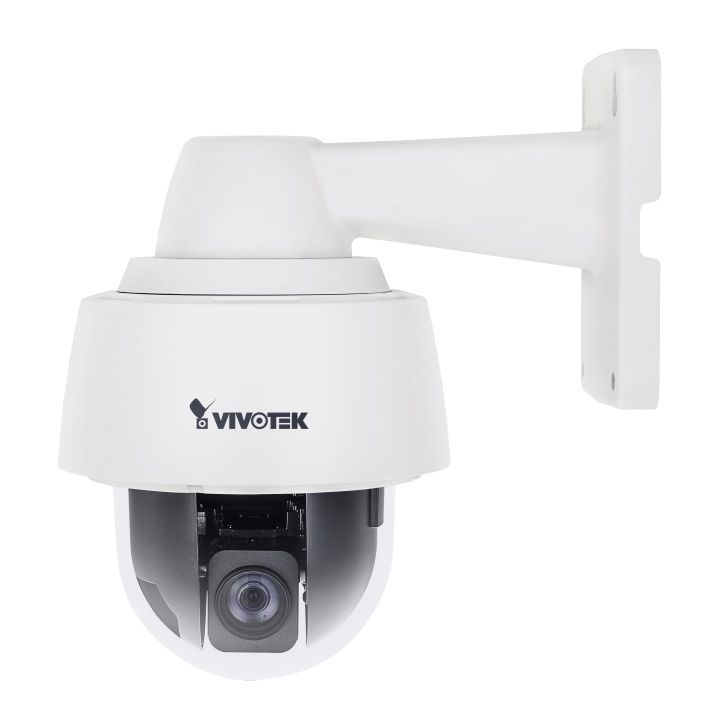

Vivotek SD9361-EHL 2MP Pan Tilt Zoom Network Camera
The SD9361-EHL is also equipped with wide dynamic range pro and can record up to 60fps offering excellent quality in all light intensities. Using IP68 rated weatherproof housing and IK10 rated vandal proof housing, this PTZ is the perfect choice for outdoor applications.
Quick Installation Guide
User Manual
Accessory Manual
Product Datasheets
Vivotek SD9361-EHL 2MP Pan Tilt Zoom Network Camera Datasheet (0.72MB)
- 1080P Full HD CMOS Sensor
- 60 fps @ 1920x1080
- 20x Optical Zoom
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- WDR Pro, a True WDR, for Unparalleled Visibility in High Contrast Environments
- Smart Stream II to Optimize Bandwidth Efficiency
- Weather-proof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
- -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Defog
- EIS

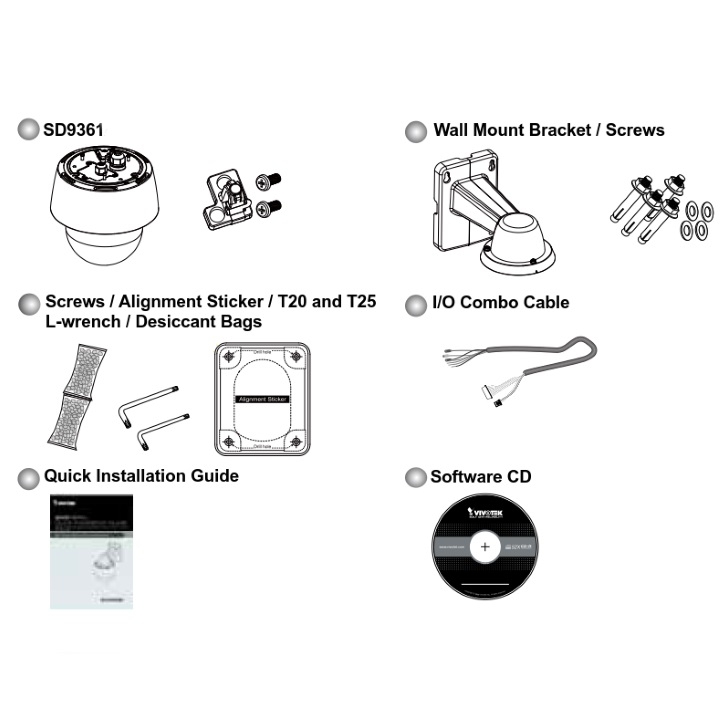

Pack contents:
- SD9361-EHL main unit
- Wall mount bracket
- I/O combo cable
- Screws
- Waterproof connectors
- Quick installation guide
- Alignment sticker
- L-wrench
- Software CD
- Desiccant bags
| Weight | 2950.000000 |
|---|---|
| Image chip size | 1/3" |
| Image chip type | Progressive CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | Two-way |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP68 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | PoE Plus (802.3at) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Lens Mount | auto-focus |
| Lens Focal Length | 4.7~94mm |
| Viewing Angle | 3° ~ 55° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 50W |
| Warranty | 3 Years |
| Launch Date | Summer 2017 |
| Video |
