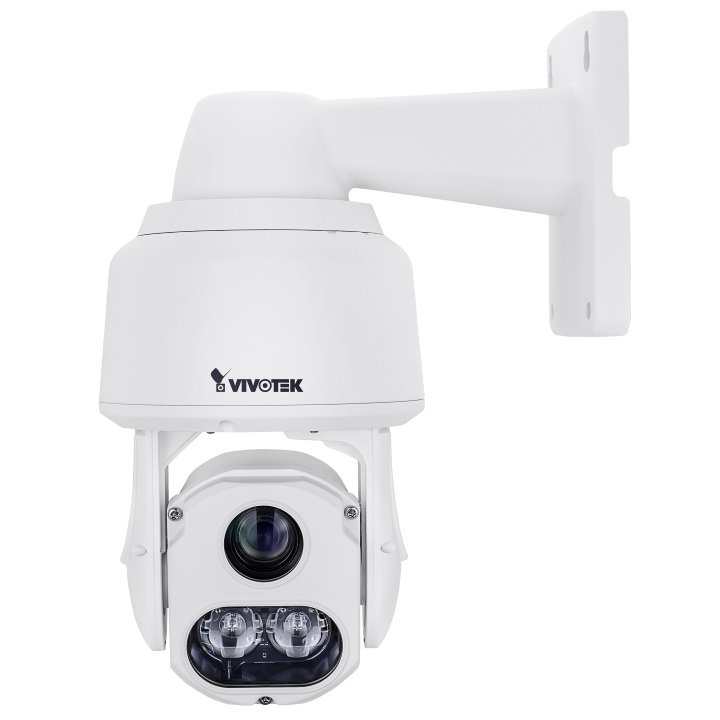

Vivotek SD9363-EHL Speed Dome Camera
Quick Installation Guide
User Manual
Accessories Manual
Product Datasheets
- 1080p HD CMOS Sensor
- 60 fps @ 1080p Full HD
- 20x Zoom Lens, 150 M IR
- Vari-Angle IR
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
- -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Smart Stream II to Optimize Bandwidth Efficiency
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Defog
- EIS
Pack contents
- Wall mount bracket
- I/O cable
- Screws
- Waterproof connectors
- Terminal blocks
- Quick installation guide
- Warranty card
- Alignment sticker
- Ground wire
- T25 stardriver
- Software CD
- Desiccant bags
| Weight | 6030.000000 |
|---|---|
| Image chip size | 1/3" |
| Image chip type | Progressive CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | Two way, full duplex |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Supply Volts | 95W PoH/PoE, DC 48V |
| Lens Mount | optical zoom lens |
| Lens Focal Length | 4.7~94mm |
| Viewing Angle | 3° ~ 55° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | DC Iris |
| Max. Images per second | 50 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 81.8W (Heater on) |
| Warranty | 3 Years |
| Launch Date | April 2017 |
