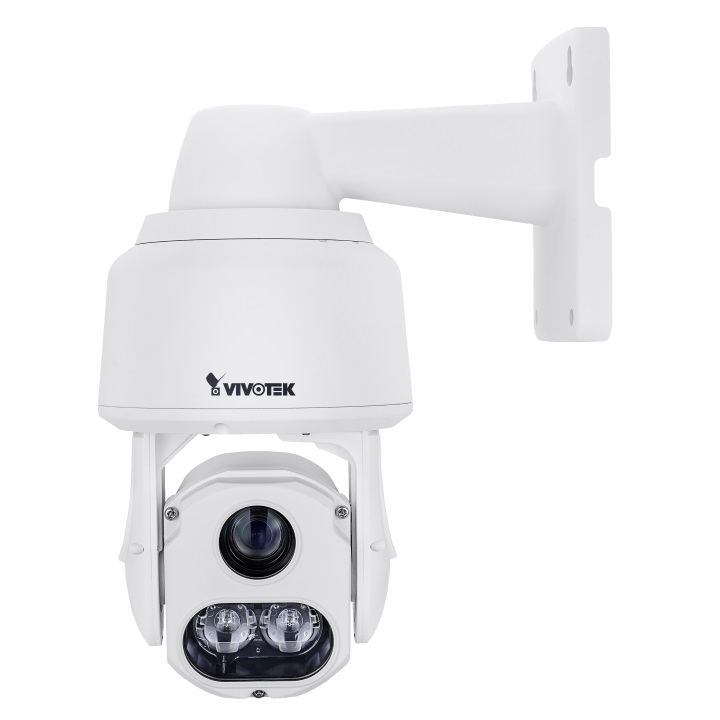

Vivotek SD9364-EHL 2MP Pan Tilt Zoom Network Camera
The SD9364-EHL is a 2MP speed dome camera with a focal length of 4.3 - 129mm and a 1/3" progressive CMOS chip.
It is designed to enhance low light surveillance in large coverage areas due to features such as wide dynamic range (WDR) and smart IR II (vari-angle IR). The camera comes equipped with 150M, vari-angle IR LEDs that can be adjusted to provide a broad coverage field of view.
The SD9364-EHL also comes equipped with a 30x zoom lens encased in IP66 weather-proof housing, IK10 vandal-resistant housing and NEMA 4X rated housing making this camera the perfect choice for outdoor applications.
This camera has smart stream II working with H.265, H.264 and MJPEG compression (triple codec) to provide users with a huge saving on storage and bandwidth usage. This is then supported by a built-in micro SD/SDHC/SDXC card slot to allow for extra storage.
Powered by either a 48V DC power supply or 95W PoH/PoE, using a maximum power consumption of 81.8W (Heater on), 28.5W (Heater off).
Please note, this camera does not come with a power supply.
Vivotek Product Catalogue Vivotek Speed Dome Camera Flyer Accessories Guide Quick Installation Guide User Manual
Product Datasheets
Vivotek SD9364-EHL 2MP Pan Tilt Zoom Network Camera Datasheet (0.97MB)
- 1080p HD CMOS Sensor
- 60 fps @ 1080p Full HD
- 30x Zoom Lens, 150 M IR
- Vari-Angle IR
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
- -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Smart Stream II to Optimize Bandwidth Efficiency
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Defog
- EIS

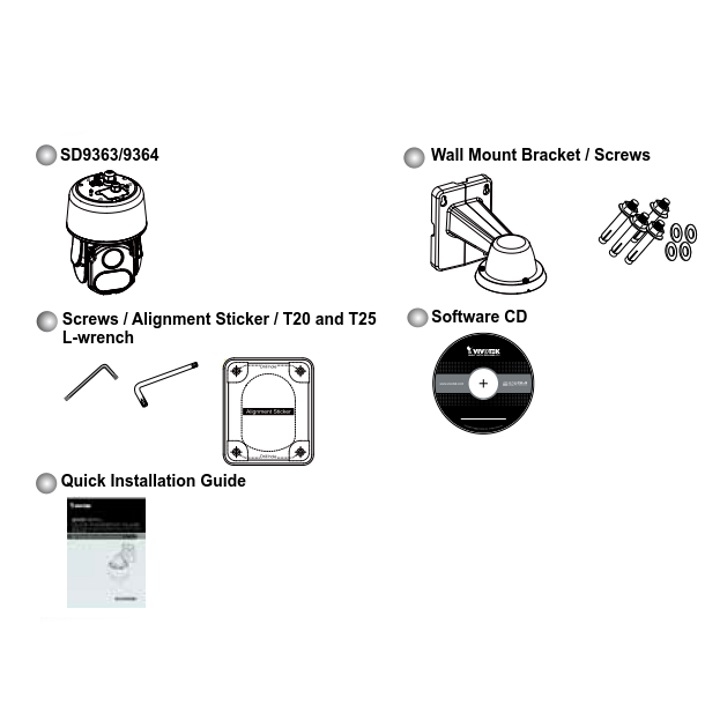

Pack contents:
- Wall mount bracket
- I/O cable
- Screws
- Waterproof connectors
- Terminal blocks
- Quick installation guide
- Warranty card
- Alignment sticker
- Ground wire
- T25 stardriver
- Software CD
- Desiccant bags
| Weight | 6030.000000 |
|---|---|
| Image chip size | 1/3" |
| Image chip type | Progressive CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | Two-way |
| Auto-Focus | Yes |
| Indoor / Outdoor | Outdoor |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | PoE Plus (802.3at) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Lens Mount | auto-focus |
| Lens Focal Length | 4.3~129mm |
| Viewing Angle | Horizontal Field of View: 2° to 59°, Vertical Field of View: 2° to 45°, Diagonal Field of View: 3° to 71° |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| IR Range | Up to 150m |
| Max. Images per second | 60 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 80W |
| Warranty | 3 Years |
| Launch Date | Summer 2017 |
| Video |
