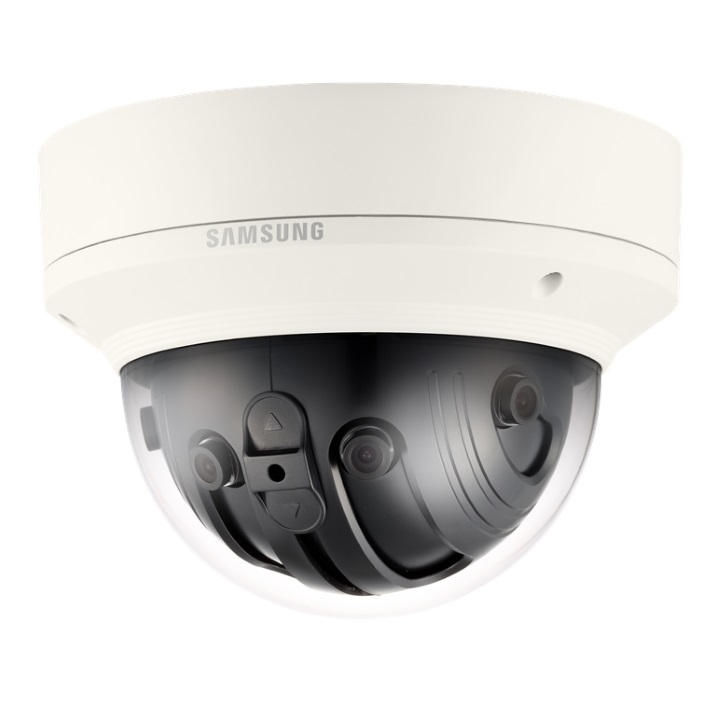

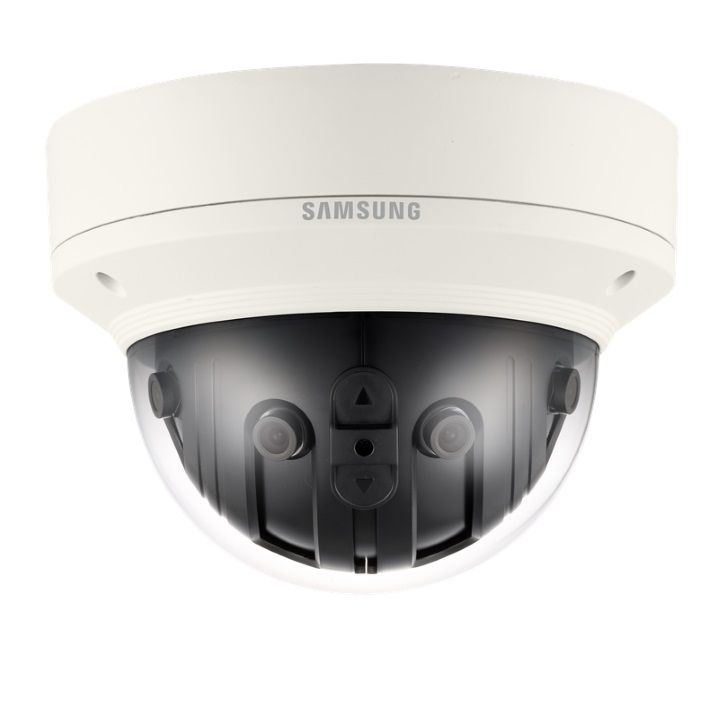

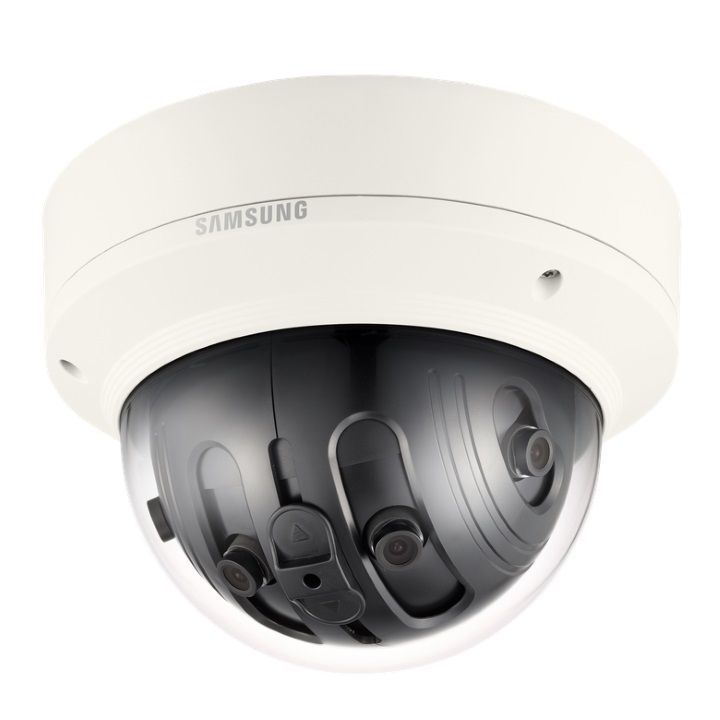

Wisenet PNM-9020V 7.3MP Multi-Sensor Panoramic Network Camera
This camera is also fitted with many smart features such as heat-mapping, digital audio tracking and motion detection so it can be used for a wide variety of applications. With vandal proof and weatherproof housing along with on board storage, the PNM-9020V is a great choice for outdoor scenarios such as airports or car parks.
Accessory ChartH.265 BrochureP Series BrochureManual
Product Datasheets
Wisenet PNM-9020V 7.3MP Multi-Sensor Panoramic Network Camera Datasheet (0.38MB)
- 4096 x 1800
- 3.6mm fixed lenses
- 180º angle of view
- Max. 30fps
- H.265, H.264, MJPEC codec supported
- Multiple streaming
- Motion detection
- Defocus detection
- Digital audio tracking
- Heatmap
- SD/SDHC/SDXC memory card slot
- PoE+ or 12VDC
- IP66 rated weatherproof housing
- IK10 vandal proof housing
- WiseStream supported
| Weight | 2003.000000 |
|---|---|
| Image chip type | Progressive CMOS |
| Image Compression | H.265/H.264 (MPEG-4 part 10/AVC) Main/Baseline/High, MJPEG |
| Audio | Bi-directional speak/listen |
| Auto-Focus | No |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 4096 X 1800 |
| Min. low-light lux | 0.03 |
| Lens Mount | board mount |
| Lens Focal Length | 3.6mm |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | N/A |
| Megapixels | 7.3 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | No |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 25.5W (heater on) |
| Warranty | 1 Year |
| Launch Date | Spring 2017 |
| Video |
