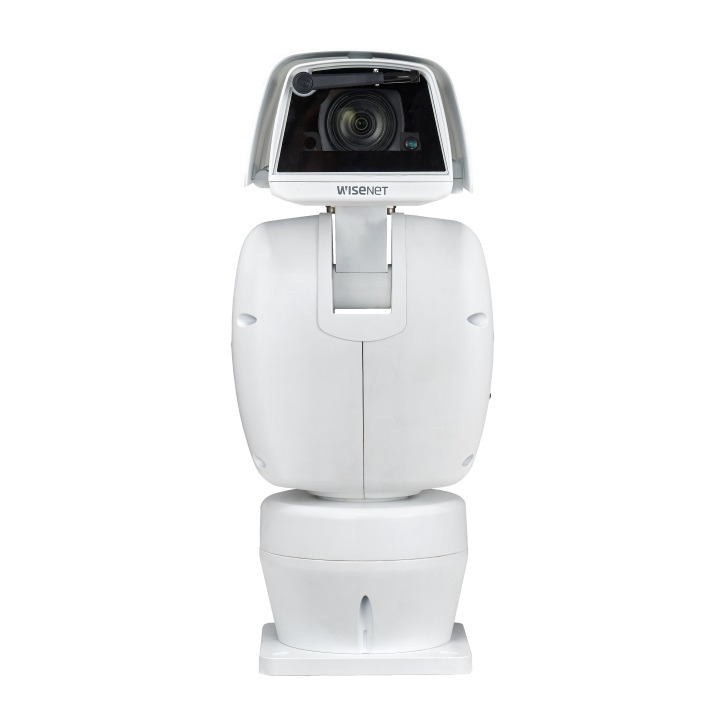

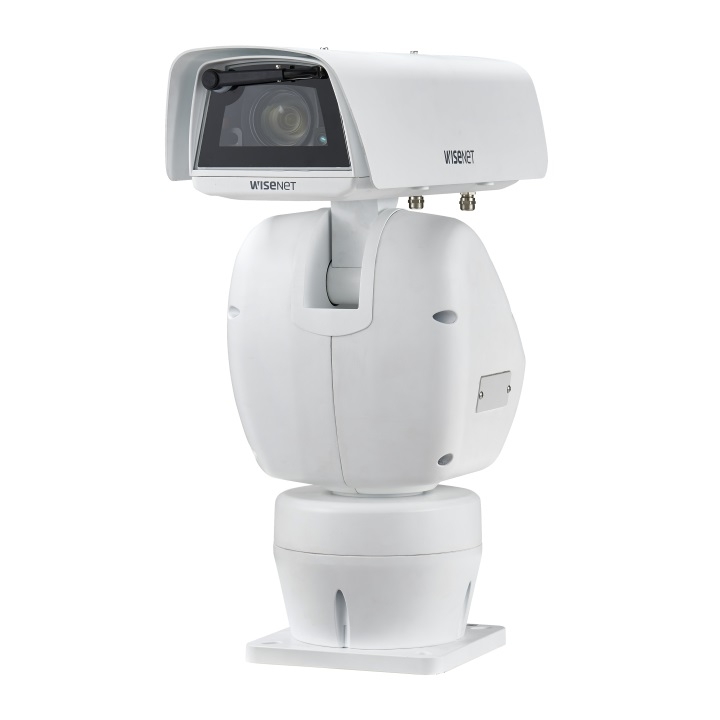

Wisenet TNU-6320 2MP Vari-focal Positioning Camera
The TNU-6320 comes with many smart features as standard, including motion detection and a range of analytics tools such as virtual line, appear/disappear, face detection and tampering detection. Thanks to its IP66 weatherproof-rated housing, this camera is suitable for use in both indoors and outdoors applications.

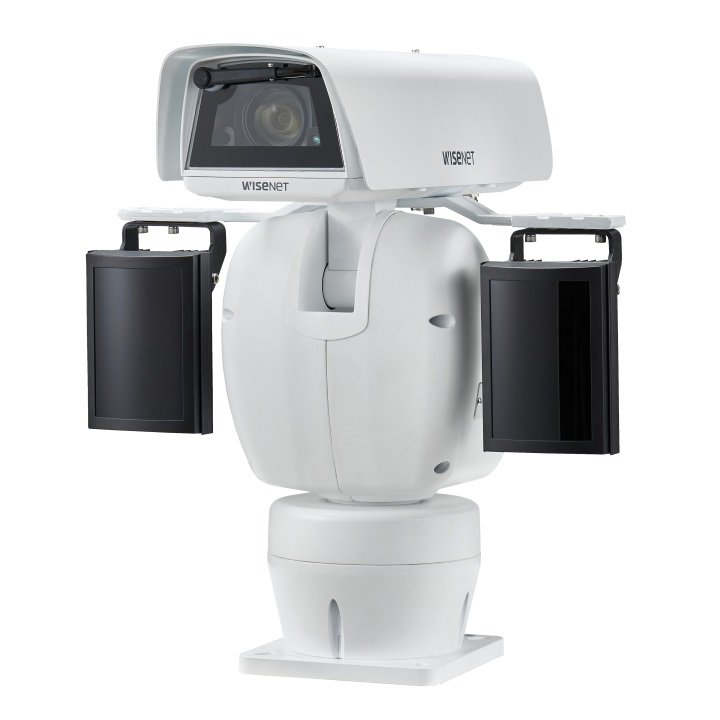

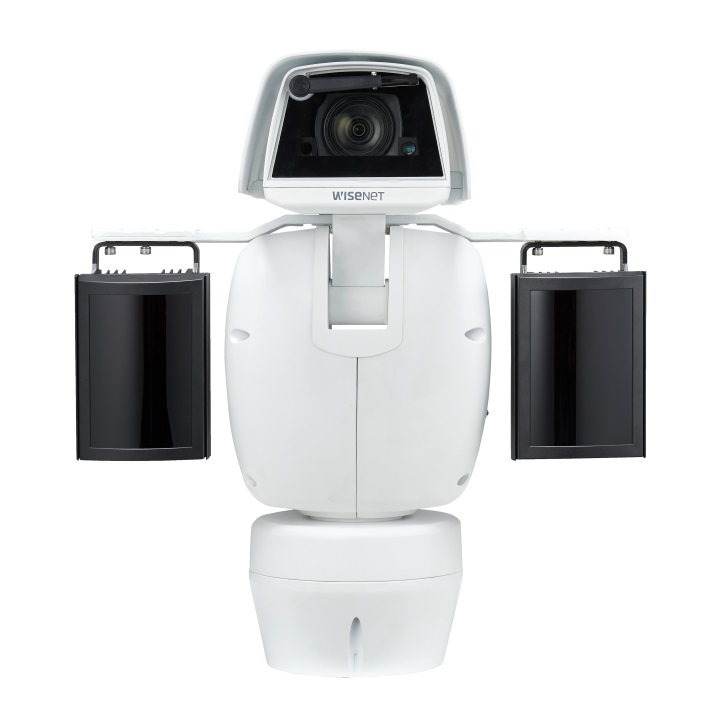

There is the option of adding an external IR illuminator to enable the TNU-6320 to see up to 200m in the dark.
Product Datasheets
Wisenet TNU-6320 2MP Vari-focal Positioning Camera Datasheet (0.13MB)
- 4.44 ~ 142.6mm (32x) varifocal lens
- Max. 60fps@2M (H.264), Max. 15fps@2M (MJPEG)
- H.264, MJPEG codec support
- Day & Night (ICR), WDR (120dB), Defog
- Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection
- SD / SDHC / SDXC slot
4.44mm - 142.6mm: Horizontal field of view: 62.8˚ to 2.23˚
For help on figuring out which focal length is best for you please see here.
| Weight | 14000.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | CMOS |
| Image Compression | H.264 & JPEG |
| Audio | Bi-directional speak/listen |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | No |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.003 |
| Supply Volts | 24V AC |
| Lens Mount | board-in type |
| Lens Focal Length | 4.44~142.6mm |
| Viewing Angle | 62.8˚ ~ 2.23˚ Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Max. Images per second | 60 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 100w |
| Warranty | 1 Year |
| Launch Date | Summer 2018 |
