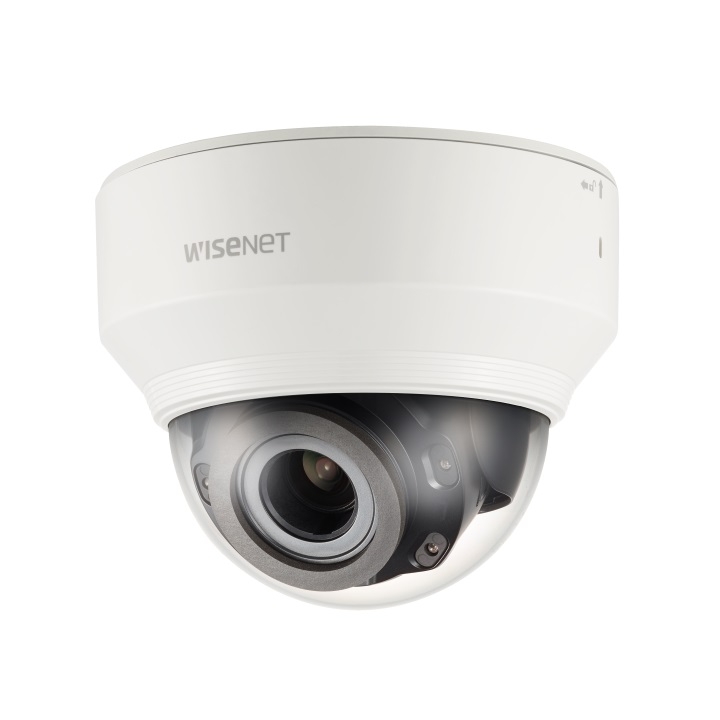

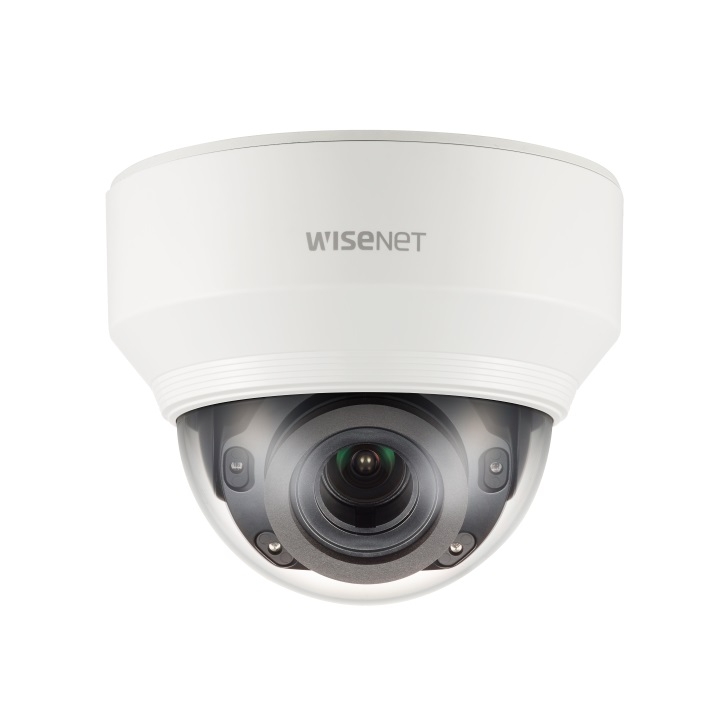

Wisenet XND-8080R 5MP Varifocal Dome Camera
Samsung Product Comparison ChartSamsung Full CatalogueUser Manual
Product Datasheets
Wisenet XND-8080R 5MP Varifocal Dome Camera Datasheet (0.24MB)
- 3.9 ~ 9.4mm (2.4x) motorized varifocal lens
- Max. 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection,
- Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 30m, IK08
- LDC support (Lens Distortion Correction)
- PoE / 12V DC
- Bi-directional audio support
3.9mm - 9.4mm: Horizontal field of view: 92.1° to 38.7°
For help on figuring out which focal length is best for you please see here.
| Weight | 628.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | Two-way |
| Indoor / Outdoor | Indoors only |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1920 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | vari-focal lens |
| Lens Focal Length | 3.9~9.4mm |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | 4:3 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| IR Range | Up to 30m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 10W |
| Warranty | 1 Year |
| Launch Date | Winter 2016 |
| Video | |
| Focal Length | 2.8mm |
| Audio/Alarm I/O | Audio/Alarm I/O |
| Wireless | Wireless |
| Frames per Second | 8.3 fps |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
