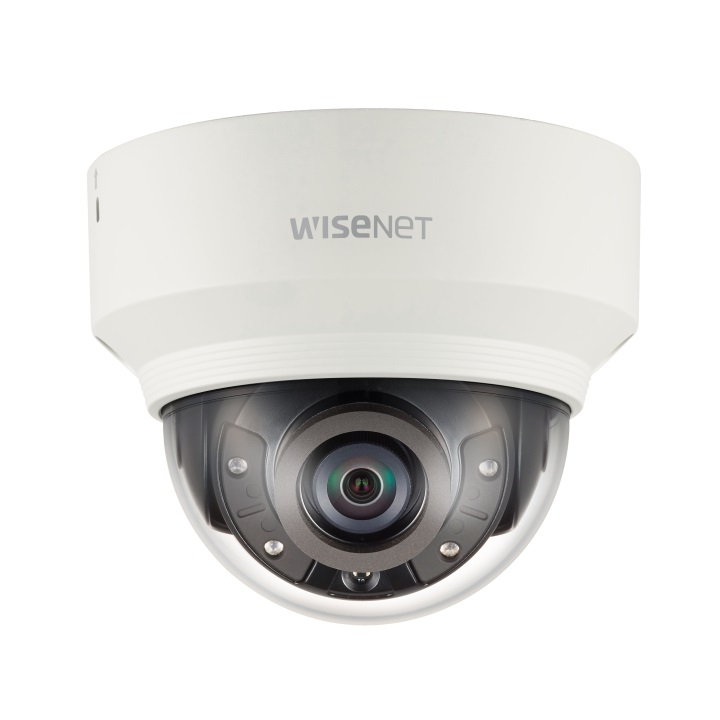

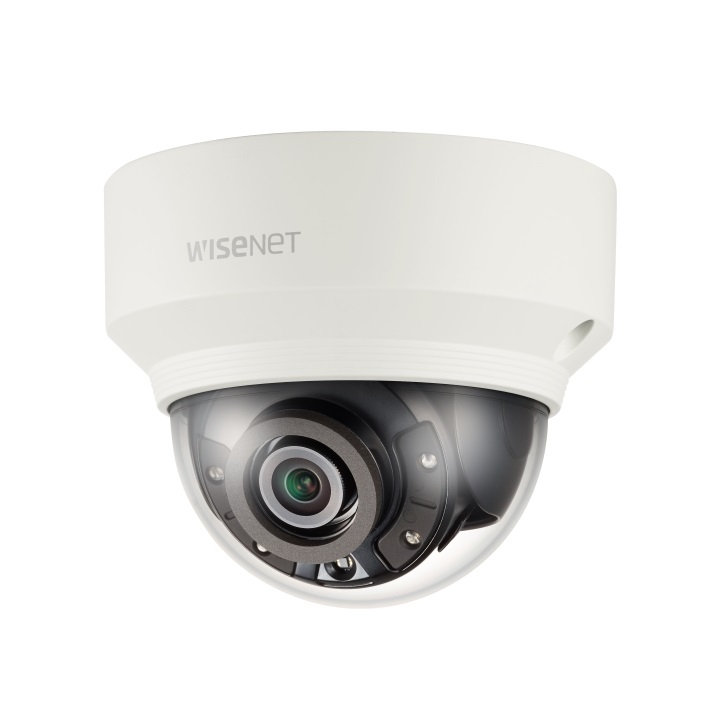

Wisenet XND-8020R/XND-8030R/XND-8040R | 5 Megapixel Network IR Dome Camera
- XND-8020R = 3.7mm lens
- XND-8030R = 4.6mm lens
- XND-8040R = 7mm lens
Accessory ChartUser ManualH.265 BrochureX Series Brochure
Product Datasheets
Wisenet XND-8020R/XND-8030R/XND-8040R | 5 Megapixel Network IR Dome Camera Datasheet (0.38MB)
- Built-in fixed lens
- Max 25fps
- H.265, H.264, MJPEG codec
- Day and night
- WDR
- Loitering, directional detection, fog detection, audio detection
- Motion detection
- SD/SDHC/SDXC memory slot
- Hallway viw, WiseStream II support
- IR viewable length 30m
- LDC support
QND-6010R - Horizontal field of view: 97.5°
QND-6020R - Horizontal field of view: 77.9°
QND-6030R - Horizontal field of view: 50.7°
For help on figuring out which focal length is best for you please see here.
| Weight | 380.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Indoor / Outdoor | Indoors or Outdoors |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1920 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | 12V DC or PoE |
| Lens Mount | board-in type |
| Aspect ratio | N/A |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| IR Range | Up to 30m |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 9W |
| Warranty | 2 Years |
| Launch Date | January 2017 |
| Video | |
| Audio/Alarm I/O | Audio/Alarm I/O |
| Wireless | Wireless |
| Frames per Second | 8.3 fps |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
