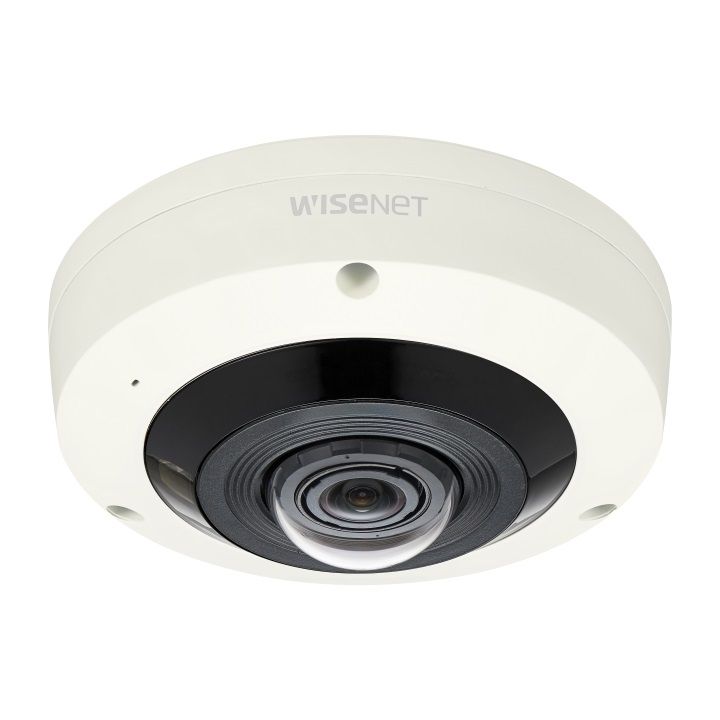

Wisenet XNF-8010RVM 4MP Outdoor Fisheye Camera
It has a built-in SD / SDHC / SDXC memory card slot and bi-directional audio and can be used with a wide range of accessories meaning its potential uses are varied. The XNF-8010RVM can be used with a wide range of intelligent video analytics including Tampering, Loitering, Enter/Exit, Audio detection, People counting, Heat-mapping and Queue Management.
User Manual
Product Datasheets
Wisenet XNF-8010RVM 4MP Outdoor Fisheye Camera Datasheet (0.20MB)
- H.265, H.264, MJPEG codec supported
- Variable view mode (Fisheye, Single panorama, Double panorama, Quad view)
- On board dewarping, Digital PTZ (8x)
- Bi-directional audio
- True WDR (120dB), WiseStreamⅡ support
- Tampering, Loitering, Directional detection, Audio detection, Sound classification, Heatmap, People counting, Queue management
- Motion deteciton, Handover
- M12 connector
- IP66 / IK10
- SD / SDHC / SDXC memory slot (Max. 512GB)
- 12V DC / PoE
- IR viewable length 15m (49.21ft)
| Weight | 790.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Bi-directional speak/listen |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 2048 X 2048 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | board-in type |
| Lens Focal Length | 1.6mm |
| Viewing Angle | 192˚ Horizontal Field of View |
| Aspect ratio | N/A |
| Megapixels | 4 MP |
| Supplied with lens | Yes |
| IR Range | Up to 15m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 13W |
| Warranty | 1 Year |
| Launch Date | Summer 2018 |
