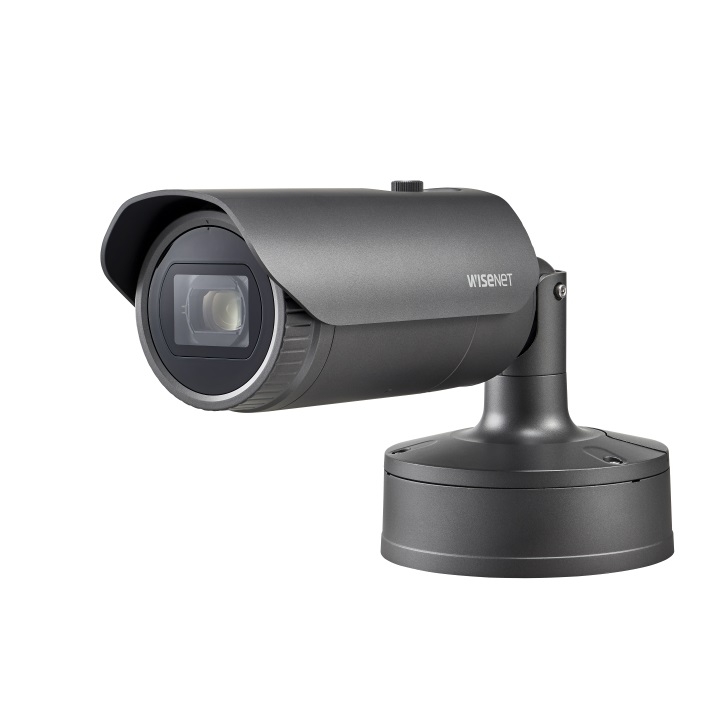

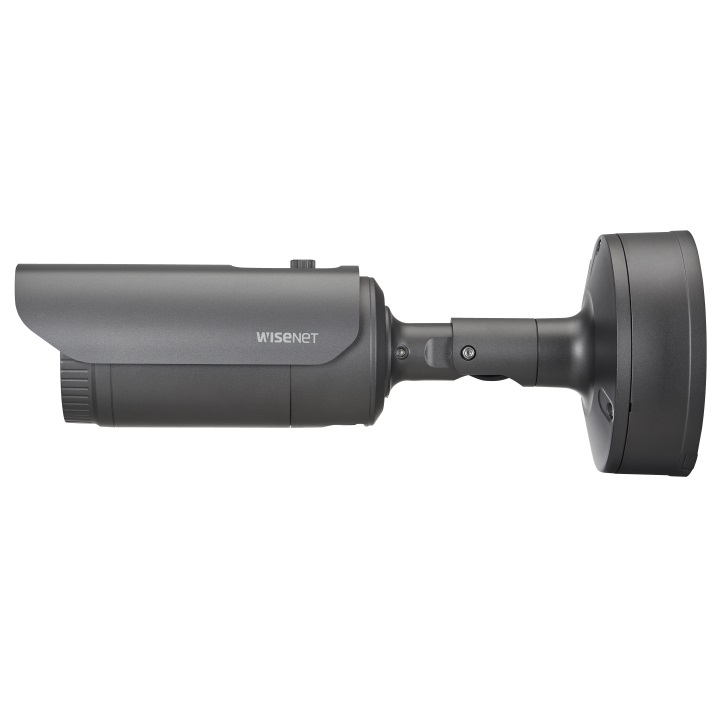

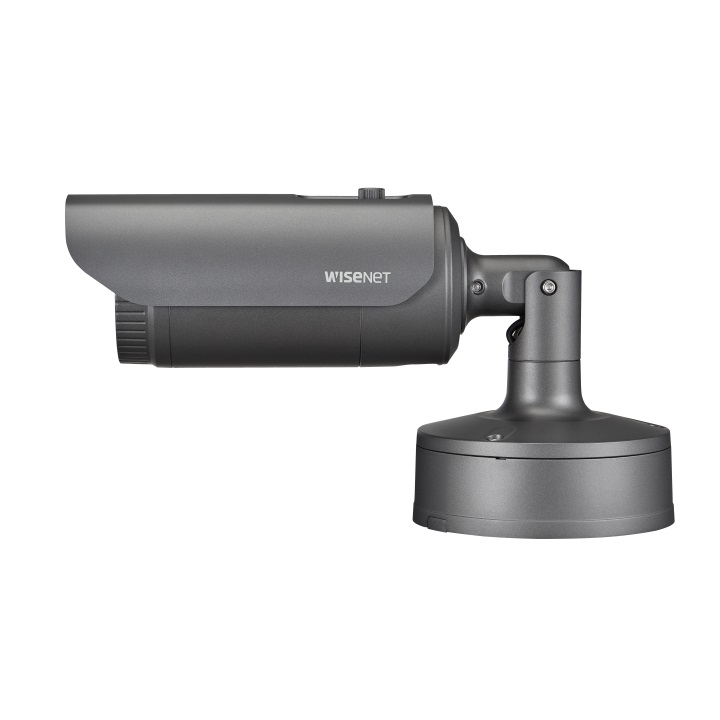

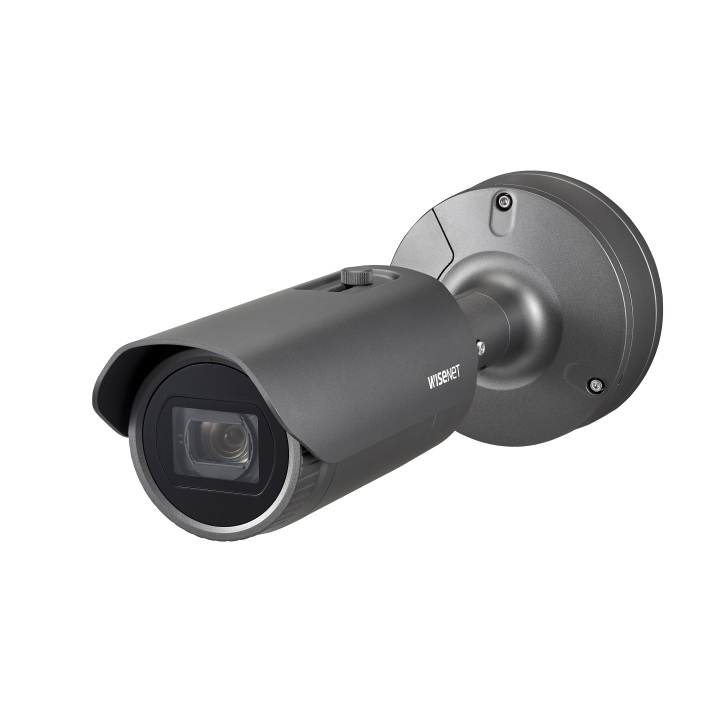

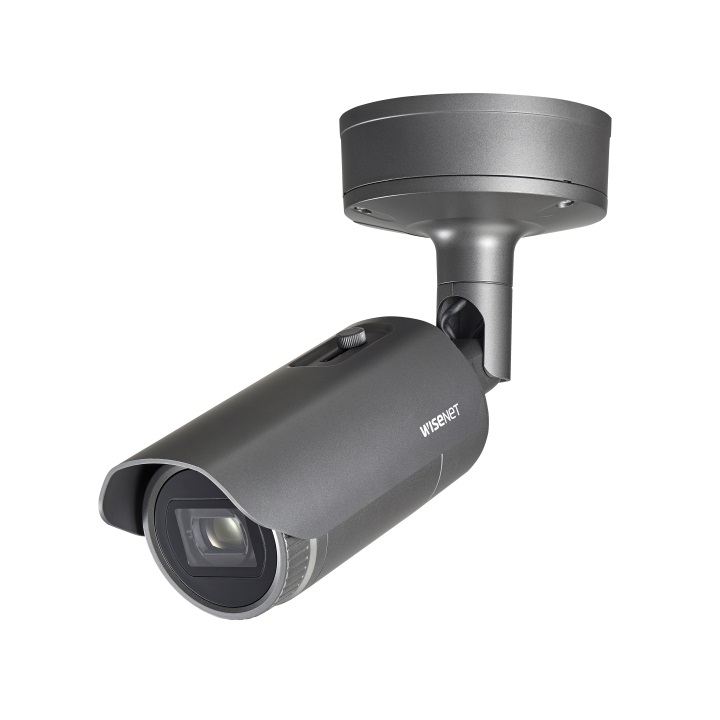

Wisenet XNO-6120R/FNP 2MP ANPR Varifocal Bullet Camera
Wisenet have worked with analytics experts FF Group to create this advanced solution that is able to accurately pick up all European number plates and record events including entry/exit logs, black/white list management and direction detection.
The XNO-6120R/FNP can read the plates of vehicles travelling at speeds of up to 80kmph on two lanes or at night-time
The camera also benefits from all the standard smart analytics functions from Wisenet's X series of cameras
User ManualInstallation GuideXNO-6120R (non ANPR) DatasheetWisenet Group ANPR Brochure
Product Datasheets
Wisenet XNO-6120R/FNP 2MP ANPR Varifocal Bullet Camera Datasheet (0.86MB)
- 5.2 ~ 62.4mm (Optical 12X) Optical Lens
- Max. 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG Codec Supported, Multiple streaming
- Loitering, Directional detection, Fog Detection, Audio detection, Sound Classification, Tampering
- Motion Detection, Handover
- SD / SDHC / SDXC 2 Slot (Max. 512GB)
- Hallway View, WiseStreamII Support

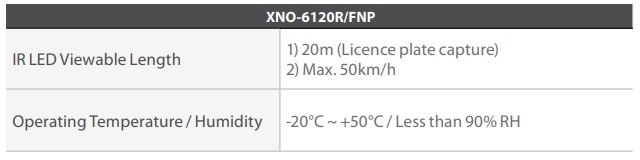

- IR Viewable Length 70m (229.66ft)
- IP67 /IP66, NEMA 4X, IK10
- LDC Support (Lens Distortion Correction)
- PoE , 24V AC, 12V DC,
- Bi-directional audio Support
Horizontal field of view: 54.58°- 5.3°
For help on figuring out which focal length is best for you please see here.
| Weight | 2180.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Bi-directional speak/listen |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | 12V DC, 24V AC, PoE |
| Lens Mount | board-in type |
| Lens Focal Length | 5.2~62.4mm |
| Viewing Angle | 54.58˚ ~ 5.30˚ Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| IR Range | Up to 20m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 14.5W |
| Warranty | 1 Year |
| Launch Date | Summer 2017 |
| Video |
