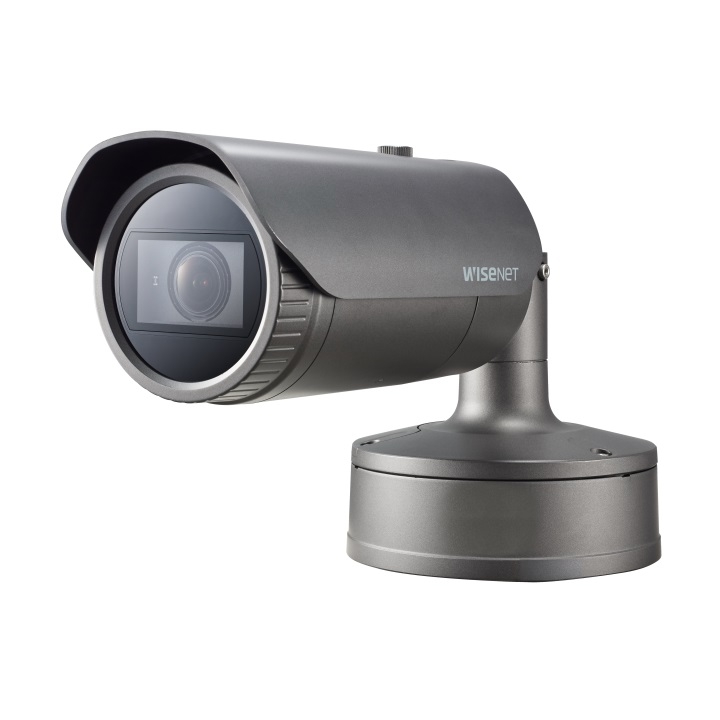

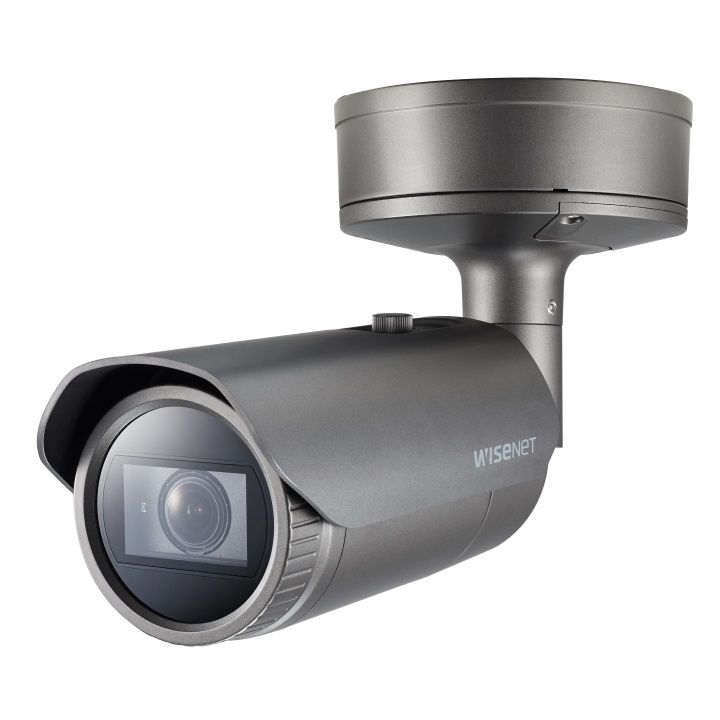

Wisenet XNO-8080R 5 Megapixel Network IR Bullet Camera
Accessory ChartUser ManualH.265 BrochureX Series Brochure
Product Datasheets
Wisenet XNO-8080R 5 Megapixel Network IR Bullet Camera Datasheet (0.79MB)
- 3.7~9.4mm motorised varifocal lens
- Max. 30fps
- H.265, H.264, MJPEG codec supported
- Day and night
- Loitering, directional detection, fog detection
- Tampering, motion detection, digital auto tracking
- SD/SDHC/SDXC memory slot
- Hallway view
- IR viewable length 50m
- LDC support
- IP66/IP67
3.7mm - 9.4mm: Horizontal field of view: 100.2° to 38.7°
For help on figuring out which focal length is best for you please see here.
| Weight | 2180.000000 |
|---|---|
| Image chip size | 1/1.8" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | G.711/G.726 |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| Max. Resolution | 2560 X 1920 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Supply Volts | 12V DC, 24V AC, PoE |
| Lens Mount | board-in type |
| Lens Focal Length | 3.7~9.4mm |
| Viewing Angle | 100.2˚ ~ 38.7˚ Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| IR Range | Up to 50m |
| Max. Images per second | 30 |
| PSU included | No |
| ONVIF Compatible | No |
| Power Consumption | max. 14.5W |
| Warranty | 3 Years |
| Launch Date | January 2017 |
| Video |
