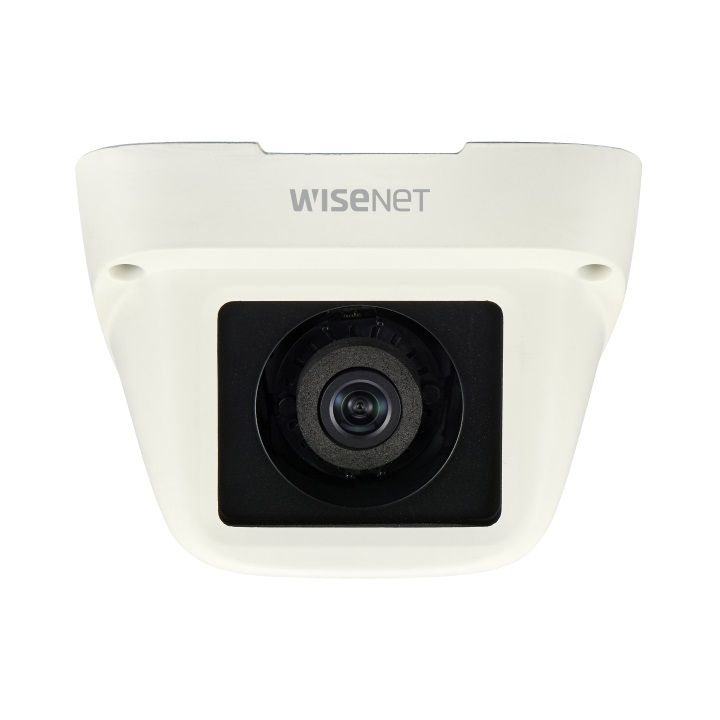

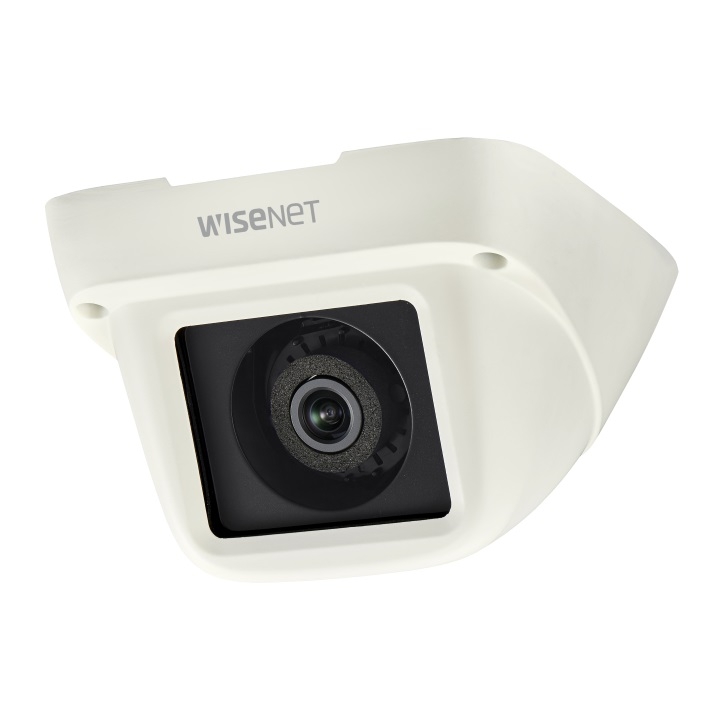

Wisenet XNV-6013M 2MP Vandal-Resistant Vibration-Resistant Dome Camera
This camera benefits from a range of innovative features including an audio analysis function which is capable of recognising sounds such as gunshots, explosions, screams and broken glass. Other useful features include defocus detection, virtual line, appear/disappear, loitering and camera tampering.
The XNV-6013M is vibration resistant and has a M12 connector, making it suitable for use in situations where vibrations may occur such as in transport environments.
The XNV-6013M is fitted with a 2.8mm lens which can capture a wide angle to cover 107.4° horizontally. It also utilises H.265 compression and WiseStream II, a compression technology which dynamically controls encoding, balancing quality and compression according to movement in the image. Both of which mean that bandwidth efficiency is improved by up to 99% compared to when using H.264 compression.
User Manual
Quick Installation Guide
- Max. 60fps@all resolutions (H.265 / H.264)
- 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
- Built-in 2.8mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (Electrical), WDR (150dB)
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, face detection, Digital auto tracking, Sound classification
- Motion detection, Handover
- SD/SDHC/SDCX memory slot (Max. 256GB)
- IP67, IP6K9K, IK10, NEMA4X
- Hallway view
- PoE
- LDC
- M12 connector support
Pack Contents:
- XNV-6013M Main Unit x1
- Instruction book x1
- Installer S/W CD x1
- Quick Guide x1
- Warranty Card x1
- Star- shaped wrench x1
- M4 Tapping Screw x4
- O-ring x4
- Plastic Anchor x4
- Template
Horizontal field of view: 107.4°
For help on figuring out which focal length is best for you please see here.
| Weight | 478.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Audio | Bi-directional speak/listen |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP67 |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.04 |
| Supply Volts | POE only |
| Lens Mount | fixed focus |
| Lens Focal Length | 2.8mm |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Max. Images per second | 60 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max 7.2W |
| Warranty | 3 Years |
| Launch Date | May 2018 |
| Video |
