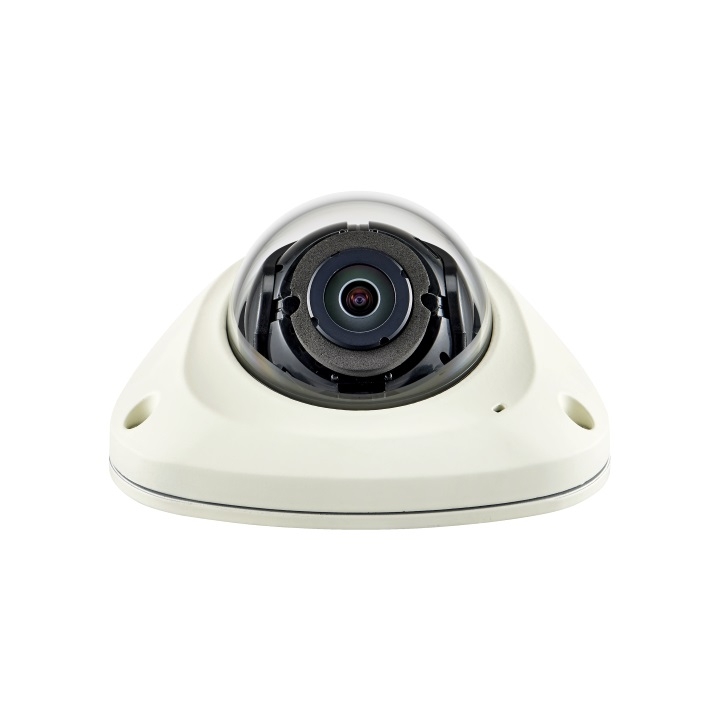

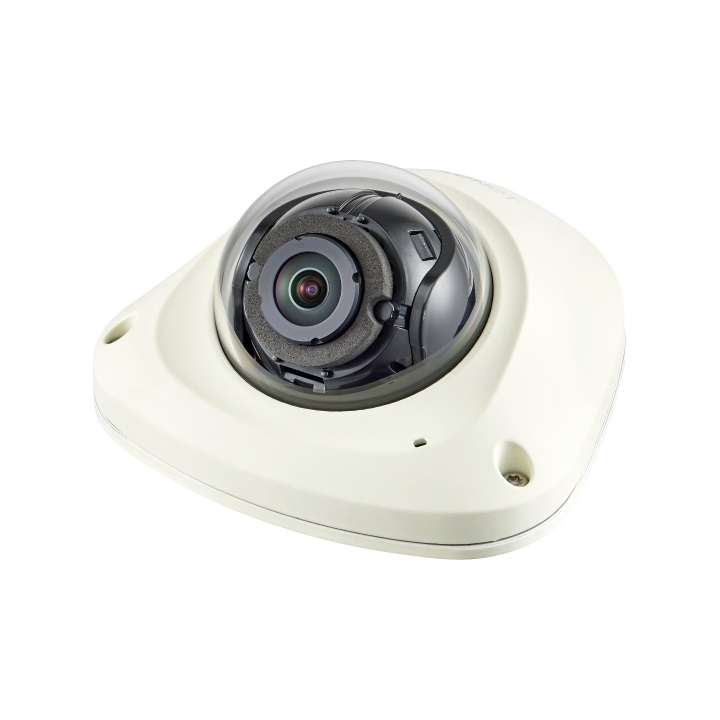

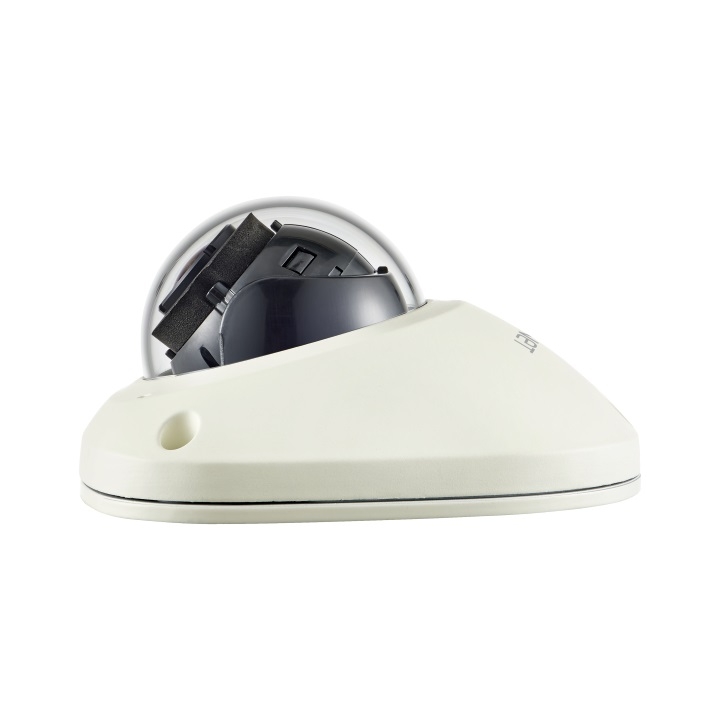

Wisenet XNV-6022R Vandal-Resistant IR Flat Dome Camera
The XNV-6022R has the added benefit of built-in infra-red LED's allowing it to capture images in the dark up to 15m. It also includes a range of innovative features including an audio analysis function which is capable of recognising sounds such as gunshots, explosions, screams and broken glass. Other useful features include defocus detection, virtual line, appear/disappear, loitering and camera tampering.
This camera is fitted with a 3.6mm lens which can capture a wide angle to cover 94.8° horizontally. It also utilises H.265 compression and WiseStream II, a compression technology which dynamically controls encoding, balancing quality and compression according to movement in the image. Both of which mean that bandwidth efficiency is improved by up to 99% compared to when using H.264 compression.
User Manual
Quick Installation Guide
Product Datasheets
Wisenet XNV-6022R Vandal-Resistant IR Flat Dome Camera Datasheet (0.20MB)
- Max. 60fps@all resolutions (H.265 / H.264)
- 0.04Lux@F2.0 (Color), 0Lux (B/W : IR LED On)
- Built-in 3.6mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB)
- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Digital auto tracking, Sound classification
- Motion detection, Handover
- SD/SDHC/SDCX memory slot (Max. 256GB)
- IR viewable length 15m
- IP66, IK10, NEMA4X
- Hallway view
- PoE
- LDC support
Pack Contents:
- XNV-6022R Main Unit x1
- Instruction book x1
- Installer S/W CD x1
- Quick Guide x1
- Warranty Card x1
- Star- shaped wrench x1
- M4 Tapping Screw x2
- Plastic Anchor x2
- Template
- Installation bracket x1
- M4 Screw x2
- RJ45 Waterproof accessory x1
Horizontal field of view: 94.8°
For help on figuring out which focal length is best for you please see here.
| Weight | 295.000000 |
|---|---|
| Image chip size | 1/2.8" |
| Image chip type | CMOS |
| Image Compression | H.264/H.265/MJPEG |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| POE built-in | Yes |
| POE Class | Class 3 (6.49-12.95W) |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0 Lux (IR LED ON) |
| Lens Mount | fixed focus |
| Lens Focal Length | 3.6mm |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| IR Range | Up to 15m |
| Max. Images per second | 60 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Power Consumption | max. 6.8W |
| Warranty | 3 Years |
| Launch Date | May 2018 |
| Video |
